LTM8026

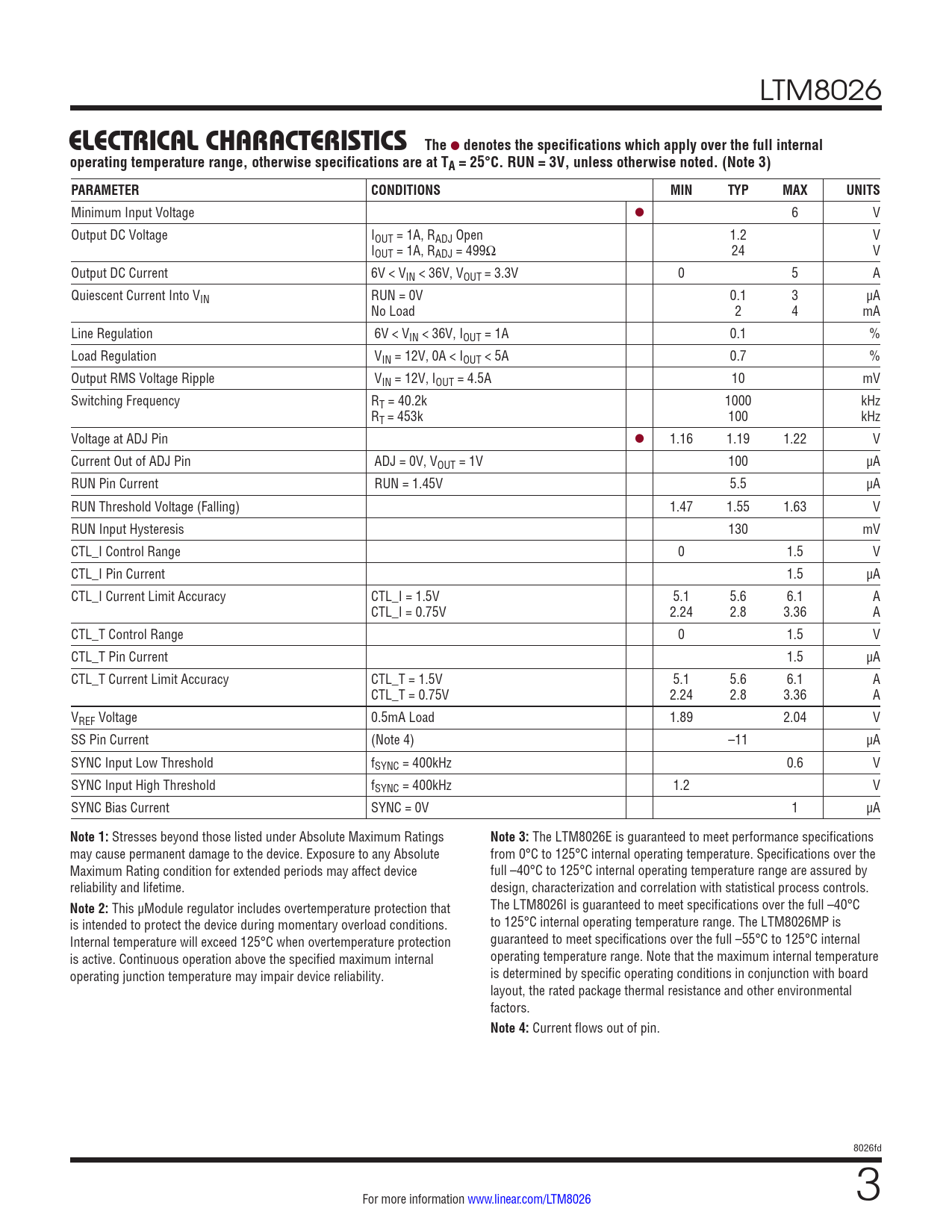

ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full internal operating temperature range, otherwise specifications are at TA = 25°C. RUN = 3V, unless otherwise noted. (Note 3) PARAMETER CONDITIONS MIN TYP MAX UNITS
Minimum Input Voltage l 6 V Output DC Voltage IOUT = 1A, RADJ Open 1.2 V IOUT = 1A, RADJ = 499Ω 24 V Output DC Current 6V < VIN < 36V, VOUT = 3.3V 0 5 A Quiescent Current Into VIN RUN = 0V 0.1 3 µA No Load 2 4 mA Line Regulation 6V < VIN < 36V, IOUT = 1A 0.1 % Load Regulation VIN = 12V, 0A < IOUT < 5A 0.7 % Output RMS Voltage Ripple VIN = 12V, IOUT = 4.5A 10 mV Switching Frequency RT = 40.2k 1000 kHz RT = 453k 100 kHz Voltage at ADJ Pin l 1.16 1.19 1.22 V Current Out of ADJ Pin ADJ = 0V, VOUT = 1V 100 µA RUN Pin Current RUN = 1.45V 5.5 µA RUN Threshold Voltage (Falling) 1.47 1.55 1.63 V RUN Input Hysteresis 130 mV CTL_I Control Range 0 1.5 V CTL_I Pin Current 1.5 µA CTL_I Current Limit Accuracy CTL_I = 1.5V 5.1 5.6 6.1 A CTL_I = 0.75V 2.24 2.8 3.36 A CTL_T Control Range 0 1.5 V CTL_T Pin Current 1.5 µA CTL_T Current Limit Accuracy CTL_T = 1.5V 5.1 5.6 6.1 A CTL_T = 0.75V 2.24 2.8 3.36 A VREF Voltage 0.5mA Load 1.89 2.04 V SS Pin Current (Note 4) –11 µA SYNC Input Low Threshold fSYNC = 400kHz 0.6 V SYNC Input High Threshold fSYNC = 400kHz 1.2 V SYNC Bias Current SYNC = 0V 1 µA
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 3:
The LTM8026E is guaranteed to meet performance specifications may cause permanent damage to the device. Exposure to any Absolute from 0°C to 125°C internal operating temperature. Specifications over the Maximum Rating condition for extended periods may affect device full –40°C to 125°C internal operating temperature range are assured by reliability and lifetime. design, characterization and correlation with statistical process controls.
Note 2:
This µModule regulator includes overtemperature protection that The LTM8026I is guaranteed to meet specifications over the full –40°C is intended to protect the device during momentary overload conditions. to 125°C internal operating temperature range. The LTM8026MP is Internal temperature will exceed 125°C when overtemperature protection guaranteed to meet specifications over the full –55°C to 125°C internal is active. Continuous operation above the specified maximum internal operating temperature range. Note that the maximum internal temperature operating junction temperature may impair device reliability. is determined by specific operating conditions in conjunction with board layout, the rated package thermal resistance and other environmental factors.
Note 4:
Current flows out of pin. 8026fd For more information www.linear.com/LTM8026 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Package Photo Package Description Revision History Typical Application Design Resources Related Parts
