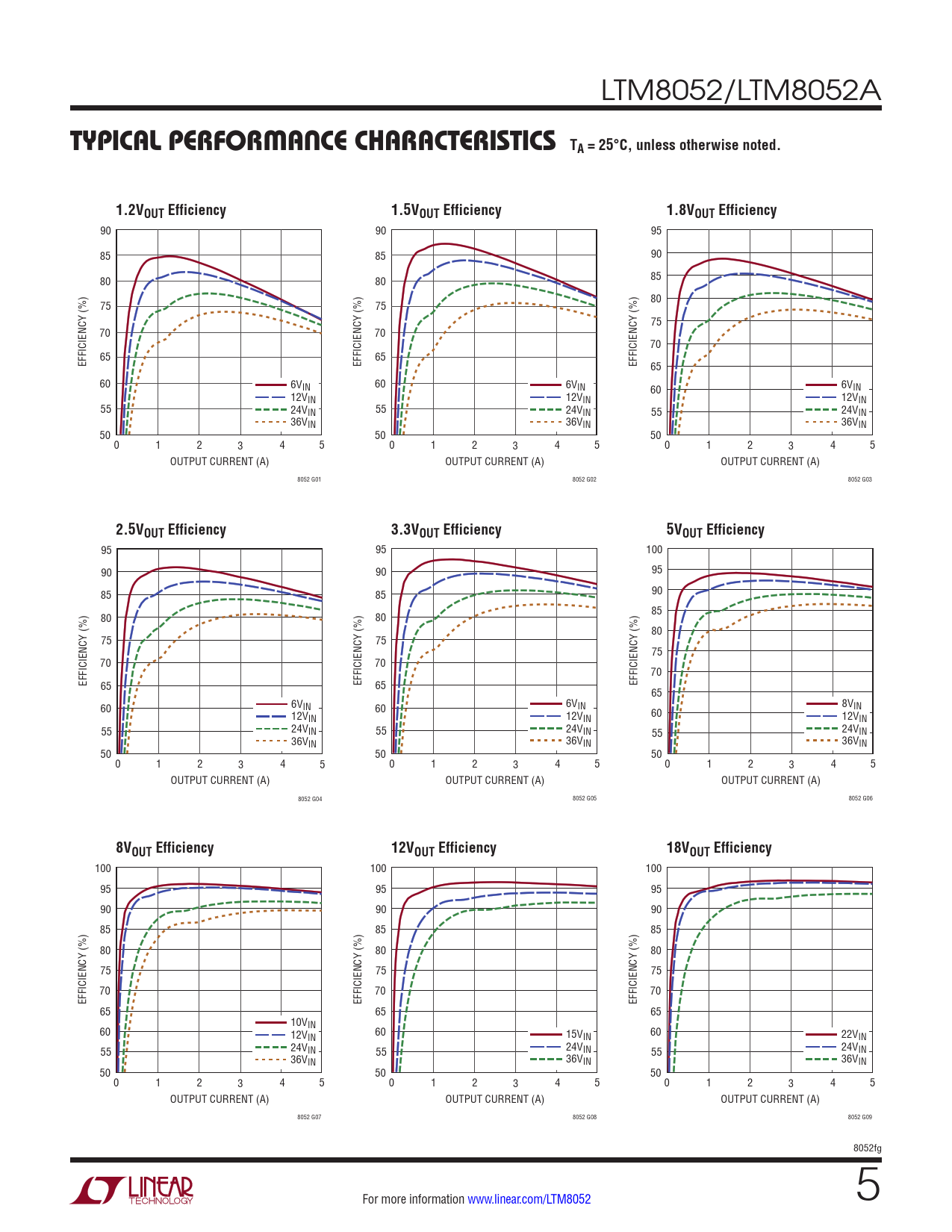

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. 1.2VOUT Efficiency. 1.5VOUT Efficiency
该数据表的模型线
文件文字版本
LTM8052/LTM8052A
TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. 1.2VOUT Efficiency 1.5VOUT Efficiency 1.8VOUT Efficiency
90 90 95 85 85 90 80 80 85 80 75 75 75 70 70 70 EFFICIENCY (%) 65 EFFICIENCY (%) 65 EFFICIENCY (%) 65 60 6VIN 60 6VIN 60 6VIN 12VIN 12VIN 12VIN 55 24VIN 55 24VIN 55 24VIN 36VIN 36VIN 36VIN 50 50 50 0 1 2 3 4 5 0 1 2 3 4 5 0 1 2 3 4 5 OUTPUT CURRENT (A) OUTPUT CURRENT (A) OUTPUT CURRENT (A) 8052 G01 8052 G02 8052 G03
2.5VOUT Efficiency 3.3VOUT Efficiency 5VOUT Efficiency
95 95 100 90 90 95 85 85 90 85 80 80 80 75 75 75 70 70 70 EFFICIENCY (%) 65 EFFICIENCY (%) 65 EFFICIENCY (%) 65 60 6VIN 60 6VIN 8VIN 12V 60 IN 12VIN 12VIN 55 24VIN 55 24VIN 55 24VIN 36VIN 36VIN 36VIN 50 50 50 0 1 2 3 4 5 0 1 2 3 4 5 0 1 2 3 4 5 OUTPUT CURRENT (A) OUTPUT CURRENT (A) OUTPUT CURRENT (A) 8052 G04 8052 G05 8052 G06
8VOUT Efficiency 12VOUT Efficiency 18VOUT Efficiency
100 100 100 95 95 95 90 90 90 85 85 85 80 80 80 75 75 75 70 70 70 EFFICIENCY (%) EFFICIENCY (%) EFFICIENCY (%) 65 65 65 10V 60 IN 12V 60 60 IN 15VIN 22VIN 55 24VIN 55 24VIN 55 24VIN 36VIN 36VIN 36VIN 50 50 50 0 1 2 3 4 5 0 1 2 3 4 5 0 1 2 3 4 5 OUTPUT CURRENT (A) OUTPUT CURRENT (A) OUTPUT CURRENT (A) 8052 G07 8052 G08 8052 G09 8052fg For more information www.linear.com/LTM8052 5 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Package Photos Revision History Typical Application Related Parts
