LTM4618

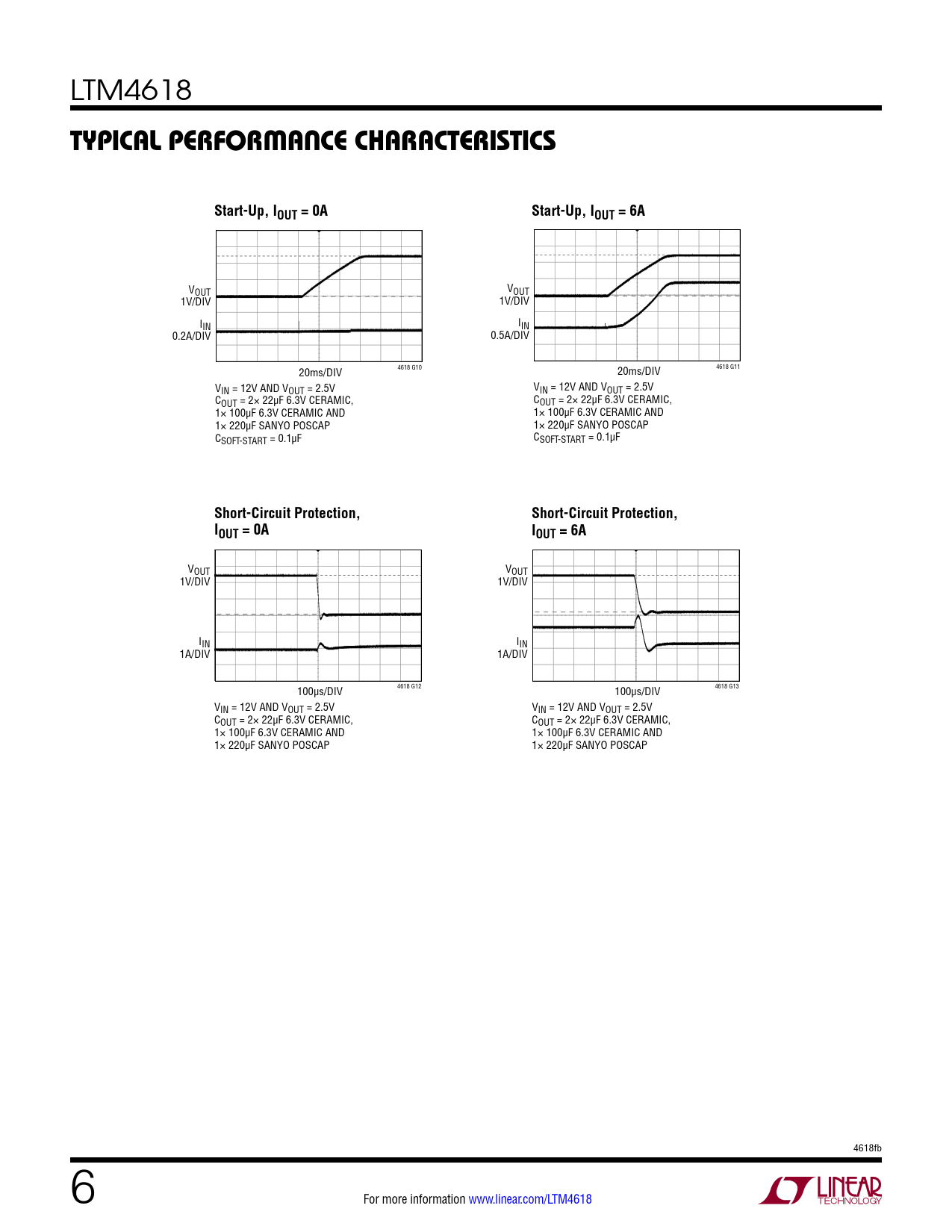

Typical perForMance characTerisTics Start-Up, IOUT = 0A Start-Up, IOUT = 6A
VOUT VOUT 1V/DIV 1V/DIV IIN IIN 0.2A/DIV 0.5A/DIV 4618 G10 20ms/DIV 4618 G11 20ms/DIV VIN = 12V AND VOUT = 2.5V VIN = 12V AND VOUT = 2.5V COUT = 2× 22µF 6.3V CERAMIC, COUT = 2× 22µF 6.3V CERAMIC, 1× 100µF 6.3V CERAMIC AND 1× 100µF 6.3V CERAMIC AND 1× 220µF SANYO POSCAP 1× 220µF SANYO POSCAP CSOFT-START = 0.1µF CSOFT-START = 0.1µF
Short-Circuit Protection, Short-Circuit Protection, IOUT = 0A IOUT = 6A
VOUT VOUT 1V/DIV 1V/DIV IIN IIN 1A/DIV 1A/DIV 4618 G12 100µs/DIV 4618 G13 100µs/DIV VIN = 12V AND VOUT = 2.5V VIN = 12V AND VOUT = 2.5V COUT = 2× 22µF 6.3V CERAMIC, COUT = 2× 22µF 6.3V CERAMIC, 1× 100µF 6.3V CERAMIC AND 1× 100µF 6.3V CERAMIC AND 1× 220µF SANYO POSCAP 1× 220µF SANYO POSCAP 4618fb 6 For more information www.linear.com/LTM4618 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Block Diagram Decoupling Requirements Operation Applications Information Typical Applications Package Photograph Package Description Revision History Typical Application Related Parts
