ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION http://www.linear.com/product/LTM4612#orderinfo
该数据表的模型线
文件文字版本
LTM4612

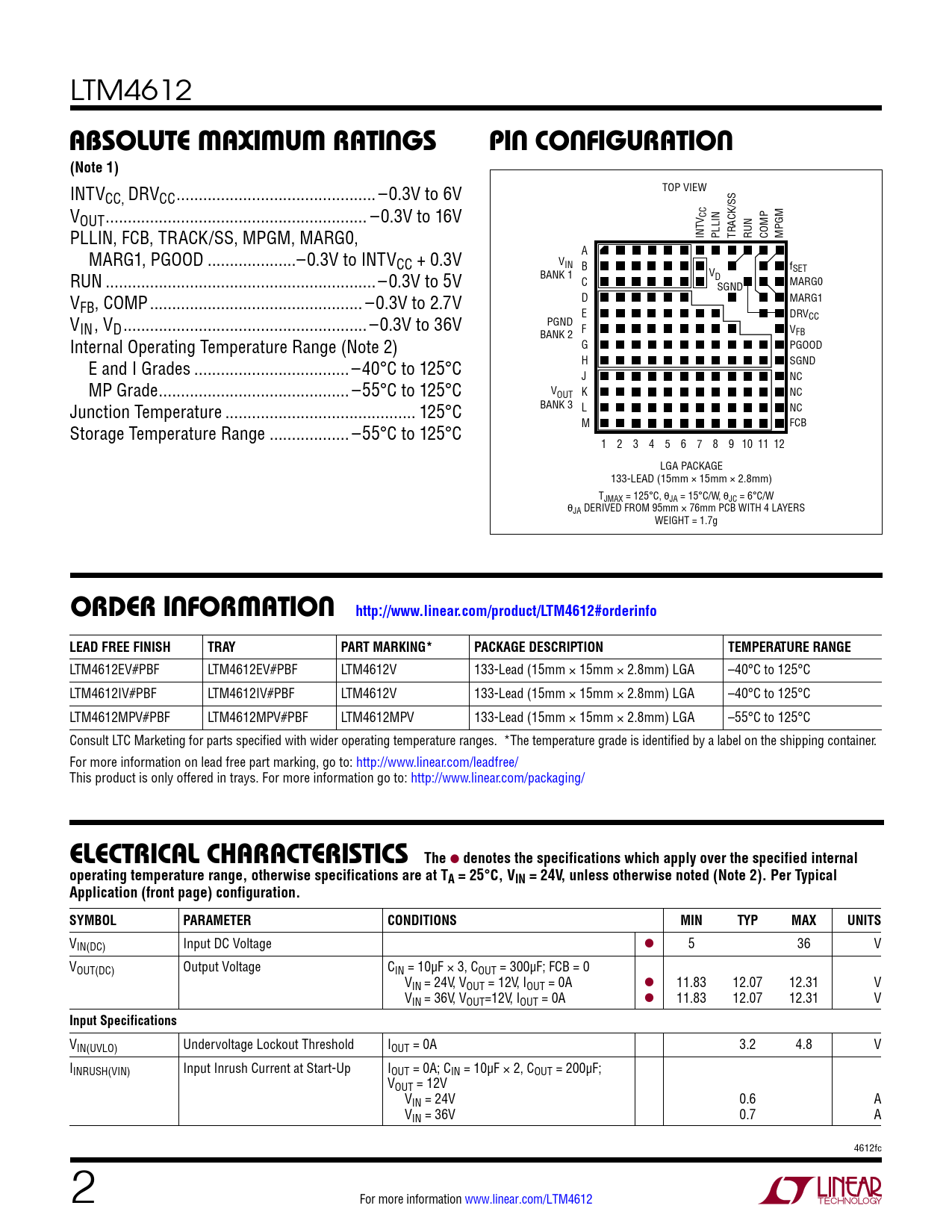

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
INTV TOP VIEW CC, DRVCC ... –0.3V to 6V VOUT ... –0.3V to 16V V CC PLLIN, FCB, TRACK/SS, MPGM, MARG0, INT PLLIN TRACK/SS RUN COMP MPGM MARG1, PGOOD ..–0.3V to INTV A CC + 0.3V VIN B fSET RUN ...–0.3V to 5V BANK 1 VD C MARG0 SGND V D MARG1 FB, COMP .. –0.3V to 2.7V V E DRVCC IN, VD ... –0.3V to 36V PGND F VFB BANK 2 Internal Operating Temperature Range (Note 2) G PGOOD E and I Grades ... –40°C to 125°C H SGND J NC MP Grade ... –55°C to 125°C VOUT K NC Junction Temperature ... 125°C BANK 3 L NC Storage Temperature Range .. –55°C to 125°C M FCB 1 2 3 4 5 6 7 8 9 10 11 12 LGA PACKAGE 133-LEAD (15mm × 15mm × 2.8mm) TJMAX = 125°C, θJA = 15°C/W, θJC = 6°C/W θJA DERIVED FROM 95mm × 76mm PCB WITH 4 LAYERS WEIGHT = 1.7g
ORDER INFORMATION http://www.linear.com/product/LTM4612#orderinfo LEAD FREE FINISH TRAY PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTM4612EV#PBF LTM4612EV#PBF LTM4612V 133-Lead (15mm × 15mm × 2.8mm) LGA –40°C to 125°C LTM4612IV#PBF LTM4612IV#PBF LTM4612V 133-Lead (15mm × 15mm × 2.8mm) LGA –40°C to 125°C LTM4612MPV#PBF LTM4612MPV#PBF LTM4612MPV 133-Lead (15mm × 15mm × 2.8mm) LGA –55°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ This product is only offered in trays. For more information go to: http://www.linear.com/packaging/
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the specified internal operating temperature range, otherwise specifications are at TA = 25°C, VIN = 24V, unless otherwise noted (Note 2). Per Typical Application (front page) configuration. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIN(DC) Input DC Voltage l 5 36 V VOUT(DC) Output Voltage CIN = 10µF × 3, COUT = 300µF; FCB = 0 VIN = 24V, VOUT = 12V, IOUT = 0A l 11.83 12.07 12.31 V VIN = 36V, VOUT=12V, IOUT = 0A l 11.83 12.07 12.31 V
Input Specifications
VIN(UVLO) Undervoltage Lockout Threshold IOUT = 0A 3.2 4.8 V IINRUSH(VIN) Input Inrush Current at Start-Up IOUT = 0A; CIN = 10µF × 2, COUT = 200µF; VOUT = 12V VIN = 24V 0.6 A VIN = 36V 0.7 A 4612fc 2 For more information www.linear.com/LTM4612 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Decoupling Requirements Operation Applications Information Package Description Revision History Package Photograph Related Parts
