Datasheet LTM4603, LTM4603-1 (Analog Devices) - 2
| 制造商 | Analog Devices |
| 描述 | 20V, 6A DC/DC µModule Regulator with PLL, Output Tracking and Margining |
| 页数 / 页 | 26 / 2 — absolute MaxiMuM ratings. pin conFiguration. (Note 1). orDer inForMation. … |
| 文件格式/大小 | PDF / 454 Kb |
| 文件语言 | 英语 |
absolute MaxiMuM ratings. pin conFiguration. (Note 1). orDer inForMation. LEAD FREE FINISH. TRAY. PART MARKING*. PACKAGE DESCRIPTION
该数据表的模型线
文件文字版本

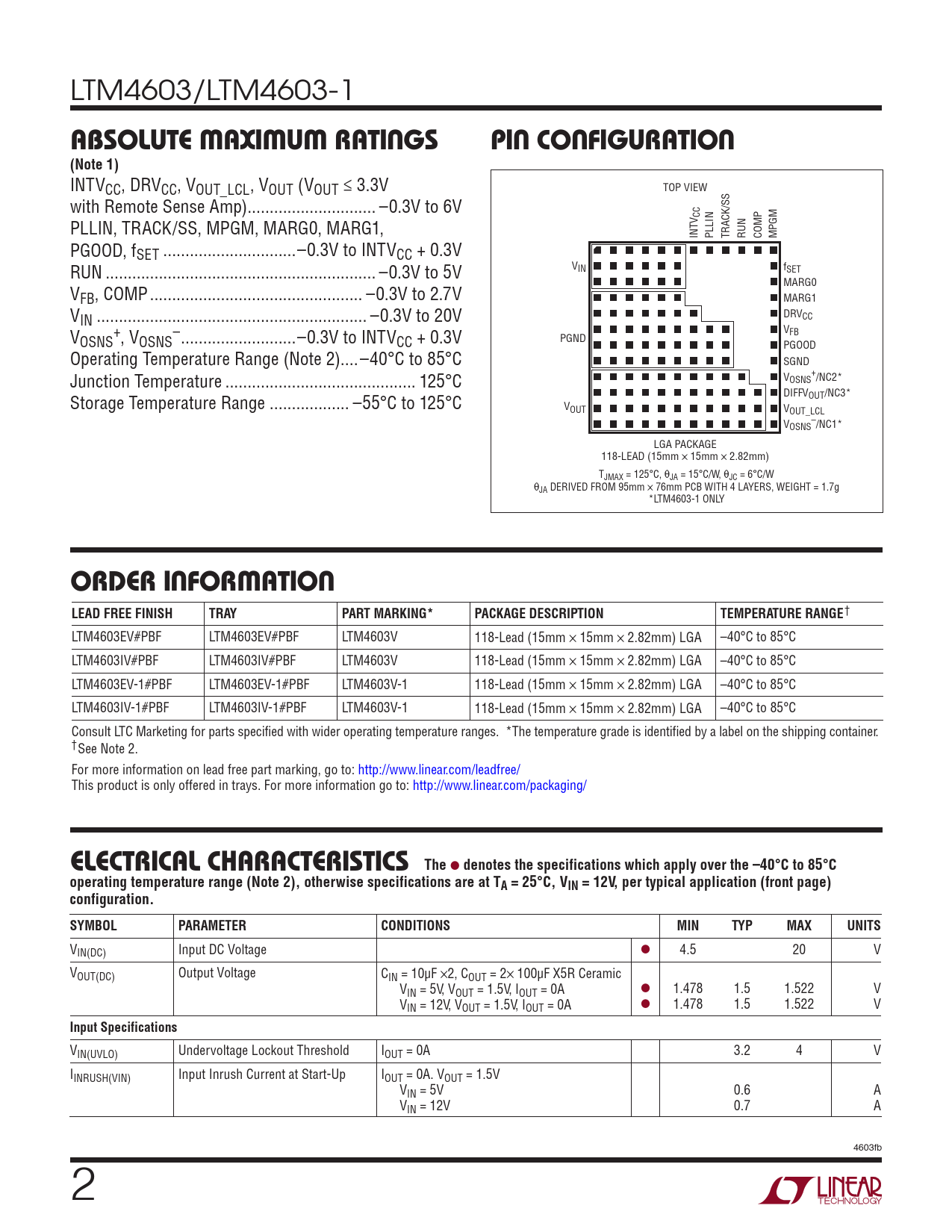

LTM4603/LTM4603-1
absolute MaxiMuM ratings pin conFiguration (Note 1)
INTVCC, DRVCC, VOUT_LCL, VOUT (VOUT ≤ 3.3V TOP VIEW with Remote Sense Amp)... –0.3V to 6V PLLIN, TRACK/SS, MPGM, MARG0, MARG1, V CC INT PLLIN TRACK/SS RUN COMP MPGM PGOOD, fSET ..–0.3V to INTVCC + 0.3V RUN ... –0.3V to 5V VIN fSET V MARG0 FB, COMP .. –0.3V to 2.7V MARG1 VIN ... –0.3V to 20V DRVCC V + – VFB OSNS , VOSNS ..–0.3V to INTVCC + 0.3V PGND PGOOD Operating Temperature Range (Note 2)..–40°C to 85°C SGND Junction Temperature ... 125°C V + OSNS /NC2* Storage Temperature Range .. –55°C to 125°C DIFFVOUT/NC3* VOUT VOUT_LCL V – OSNS /NC1* LGA PACKAGE 118-LEAD (15mm × 15mm × 2.82mm) TJMAX = 125°C, θJA = 15°C/W, θJC = 6°C/W θJA DERIVED FROM 95mm × 76mm PCB WITH 4 LAYERS, WEIGHT = 1.7g *LTM4603-1 ONLY
orDer inForMation LEAD FREE FINISH TRAY PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
† LTM4603EV#PBF LTM4603EV#PBF LTM4603V 118-Lead (15mm × 15mm × 2.82mm) LGA –40°C to 85°C LTM4603IV#PBF LTM4603IV#PBF LTM4603V 118-Lead (15mm × 15mm × 2.82mm) LGA –40°C to 85°C LTM4603EV-1#PBF LTM4603EV-1#PBF LTM4603V-1 118-Lead (15mm × 15mm × 2.82mm) LGA –40°C to 85°C LTM4603IV-1#PBF LTM4603IV-1#PBF LTM4603V-1 118-Lead (15mm × 15mm × 2.82mm) LGA –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. †See Note 2. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ This product is only offered in trays. For more information go to: http://www.linear.com/packaging/
electrical characteristics The
l
denotes the specifications which apply over the –40°C to 85°C operating temperature range (Note 2), otherwise specifications are at TA = 25°C, VIN = 12V, per typical application (front page) configuration. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIN(DC) Input DC Voltage l 4.5 20 V VOUT(DC) Output Voltage CIN = 10µF ×2, COUT = 2× 100µF X5R Ceramic VIN = 5V, VOUT = 1.5V, IOUT = 0A l 1.478 1.5 1.522 V VIN = 12V, VOUT = 1.5V, IOUT = 0A l 1.478 1.5 1.522 V
Input Specifications
VIN(UVLO) Undervoltage Lockout Threshold IOUT = 0A 3.2 4 V IINRUSH(VIN) Input Inrush Current at Start-Up IOUT = 0A. VOUT = 1.5V VIN = 5V 0.6 A VIN = 12V 0.7 A 4603fb 2 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Block Diagram Decoupling Requirements Operation Applications Information Typical Application Package Description Revision History Typical Application Package Photograph Related Parts
