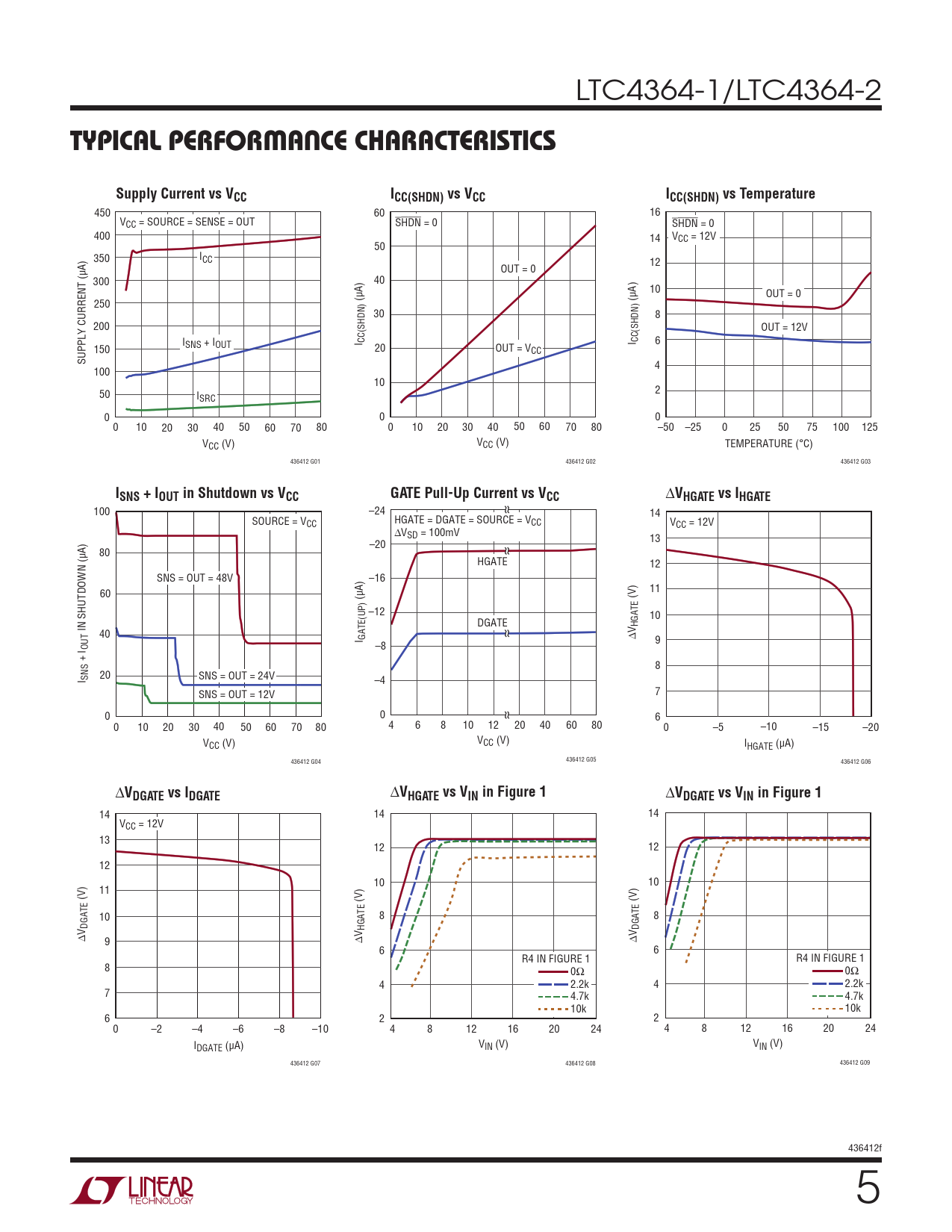

TYPICAL PERFORMANCE CHARACTERISTICS. Supply Current vs VCC. ICC(SHDN) vs VCC. ICC(SHDN) vs Temperature
