Datasheet ADP5090 (Analog Devices) - 4
| 制造商 | Analog Devices |
| 描述 | Ultralow Power Boost Regulator with MPPT and Charge Management |
| 页数 / 页 | 21 / 4 — ADP5090. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL … |
| 修订版 | C |
| 文件格式/大小 | PDF / 634 Kb |
| 文件语言 | 英语 |

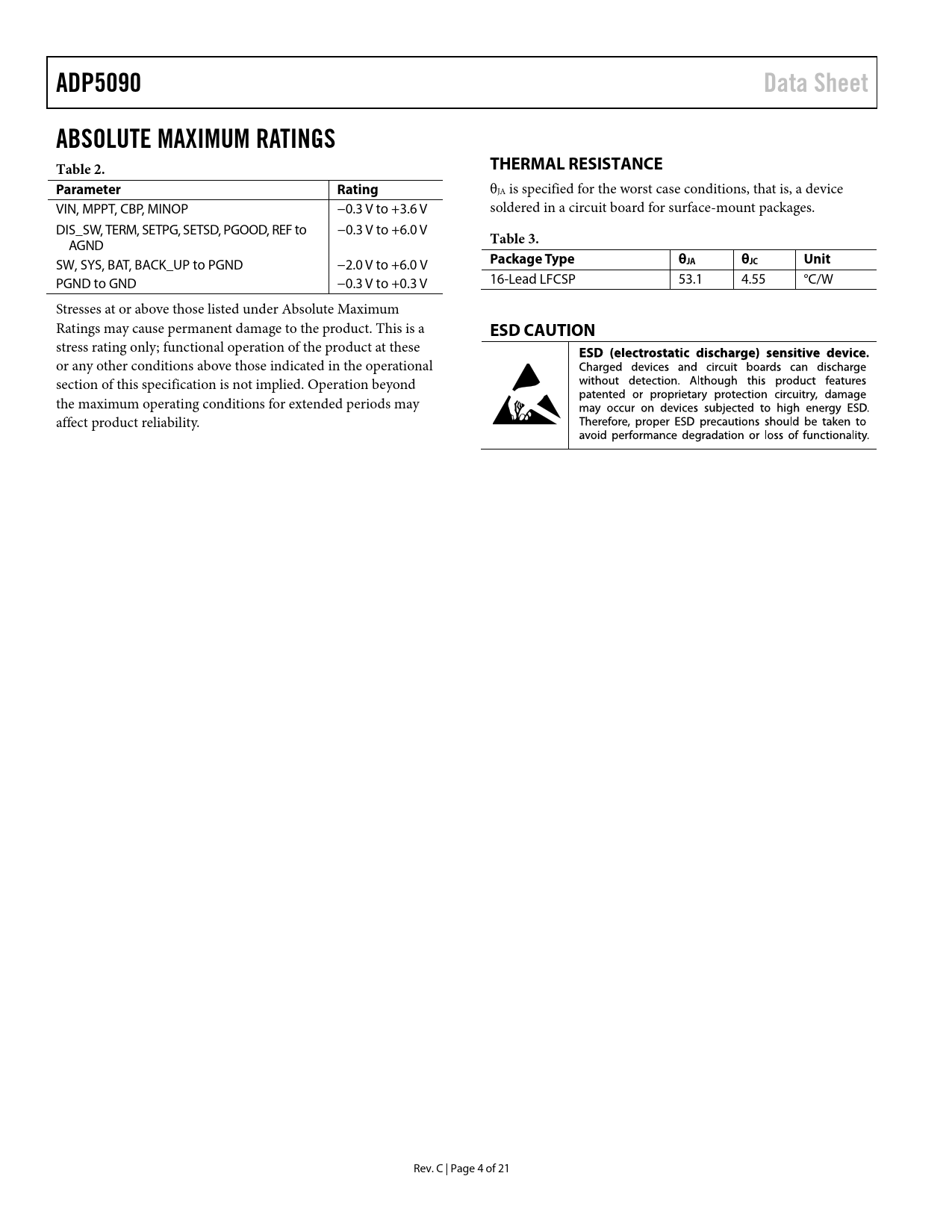

ADP5090. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE. Parameter. Rating. Table 3. Package Type. θJA. θJC. Unit
该数据表的模型线
文件文字版本
ADP5090 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE Parameter Rating
θJA is specified for the worst case conditions, that is, a device VIN, MPPT, CBP, MINOP −0.3 V to +3.6 V soldered in a circuit board for surface-mount packages. DIS_SW, TERM, SETPG, SETSD, PGOOD, REF to −0.3 V to +6.0 V AGND
Table 3.
SW, SYS, BAT, BACK_UP to PGND −2.0 V to +6.0 V
Package Type θJA θJC Unit
PGND to GND −0.3 V to +0.3 V 16-Lead LFCSP 53.1 4.55 °C/W Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a
