| 描述 | Constant-Current/Constant-Voltage 3A Battery Charger with Input Current Limiting |
| 页数 / 页 | 16 / 3 — ELECTRICAL CHARACTERISTICS The. denotes specifications which apply over … |
| 文件格式/大小 | PDF / 149 Kb |
| 文件语言 | 英语 |

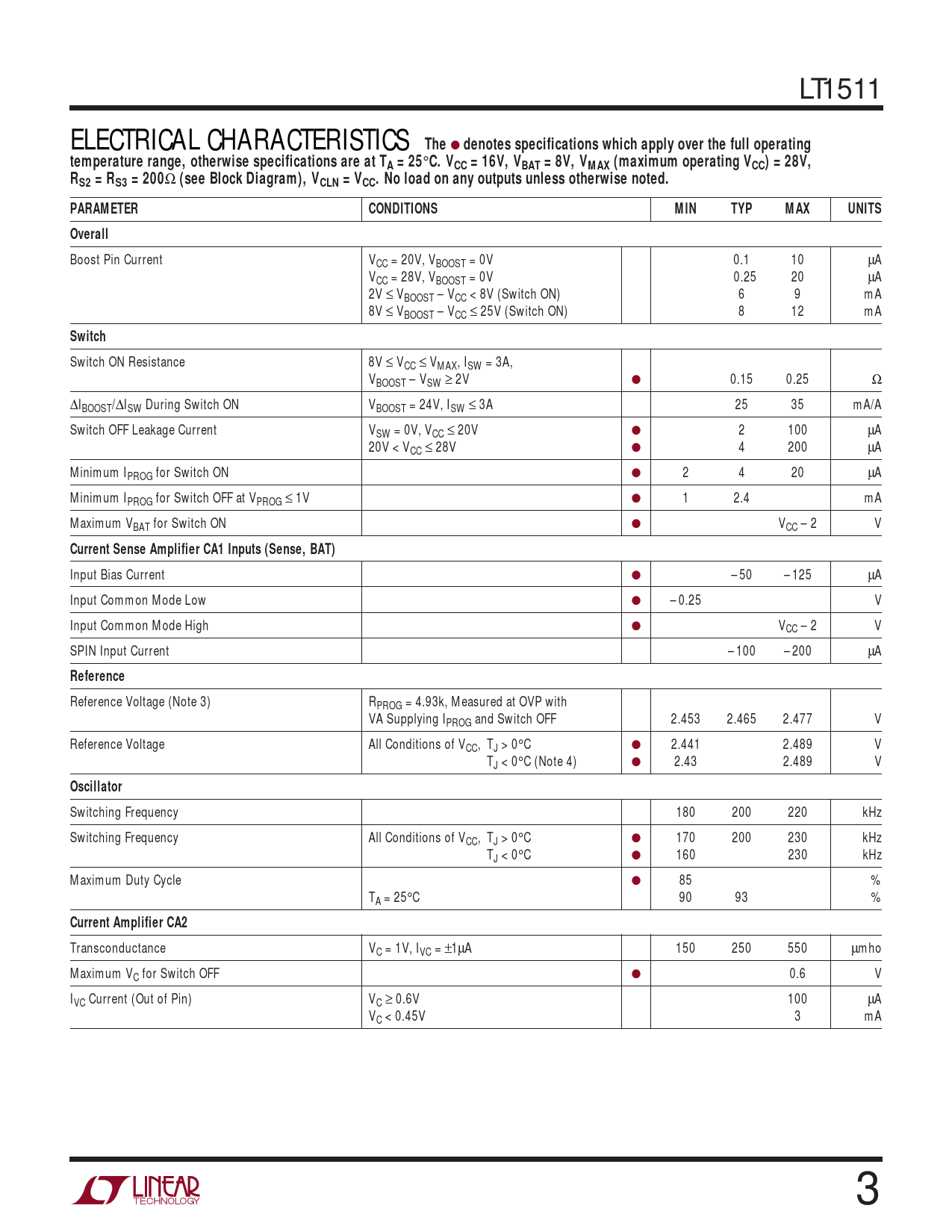

ELECTRICAL CHARACTERISTICS The. denotes specifications which apply over the full operating
该数据表的模型线
文件文字版本
LT1511
ELECTRICAL CHARACTERISTICS The
●
denotes specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VCC = 16V, VBAT = 8V, VMAX (maximum operating VCC) = 28V, RS2 = RS3 = 200
Ω
(see Block Diagram), VCLN = VCC. No load on any outputs unless otherwise noted. PARAMETER CONDITIONS MIN TYP MAX UNITS Overall
Boost Pin Current VCC = 20V, VBOOST = 0V 0.1 10 µA VCC = 28V, VBOOST = 0V 0.25 20 µA 2V ≤ VBOOST – VCC < 8V (Switch ON) 6 9 mA 8V ≤ VBOOST – VCC ≤ 25V (Switch ON) 8 12 mA
Switch
Switch ON Resistance 8V ≤ VCC ≤ VMAX, ISW = 3A, VBOOST – VSW ≥ 2V ● 0.15 0.25 Ω ∆IBOOST/∆ISW During Switch ON VBOOST = 24V, ISW ≤ 3A 25 35 mA/A Switch OFF Leakage Current VSW = 0V, VCC ≤ 20V ● 2 100 µA 20V < VCC ≤ 28V ● 4 200 µA Minimum IPROG for Switch ON ● 2 4 20 µA Minimum IPROG for Switch OFF at VPROG ≤ 1V ● 1 2.4 mA Maximum VBAT for Switch ON ● VCC – 2 V
Current Sense Amplifier CA1 Inputs (Sense, BAT)
Input Bias Current ● – 50 – 125 µA Input Common Mode Low ● – 0.25 V Input Common Mode High ● VCC – 2 V SPIN Input Current – 100 – 200 µA
Reference
Reference Voltage (Note 3) RPROG = 4.93k, Measured at OVP with VA Supplying IPROG and Switch OFF 2.453 2.465 2.477 V Reference Voltage All Conditions of VCC, TJ > 0°C ● 2.441 2.489 V TJ < 0°C (Note 4) ● 2.43 2.489 V
Oscillator
Switching Frequency 180 200 220 kHz Switching Frequency All Conditions of VCC, TJ > 0°C ● 170 200 230 kHz TJ < 0°C ● 160 230 kHz Maximum Duty Cycle ● 85 % TA = 25°C 90 93 %
Current Amplifier CA2
Transconductance VC = 1V, IVC = ±1µA 150 250 550 µmho Maximum VC for Switch OFF ● 0.6 V IVC Current (Out of Pin) VC ≥ 0.6V 100 µA VC < 0.45V 3 mA 3
