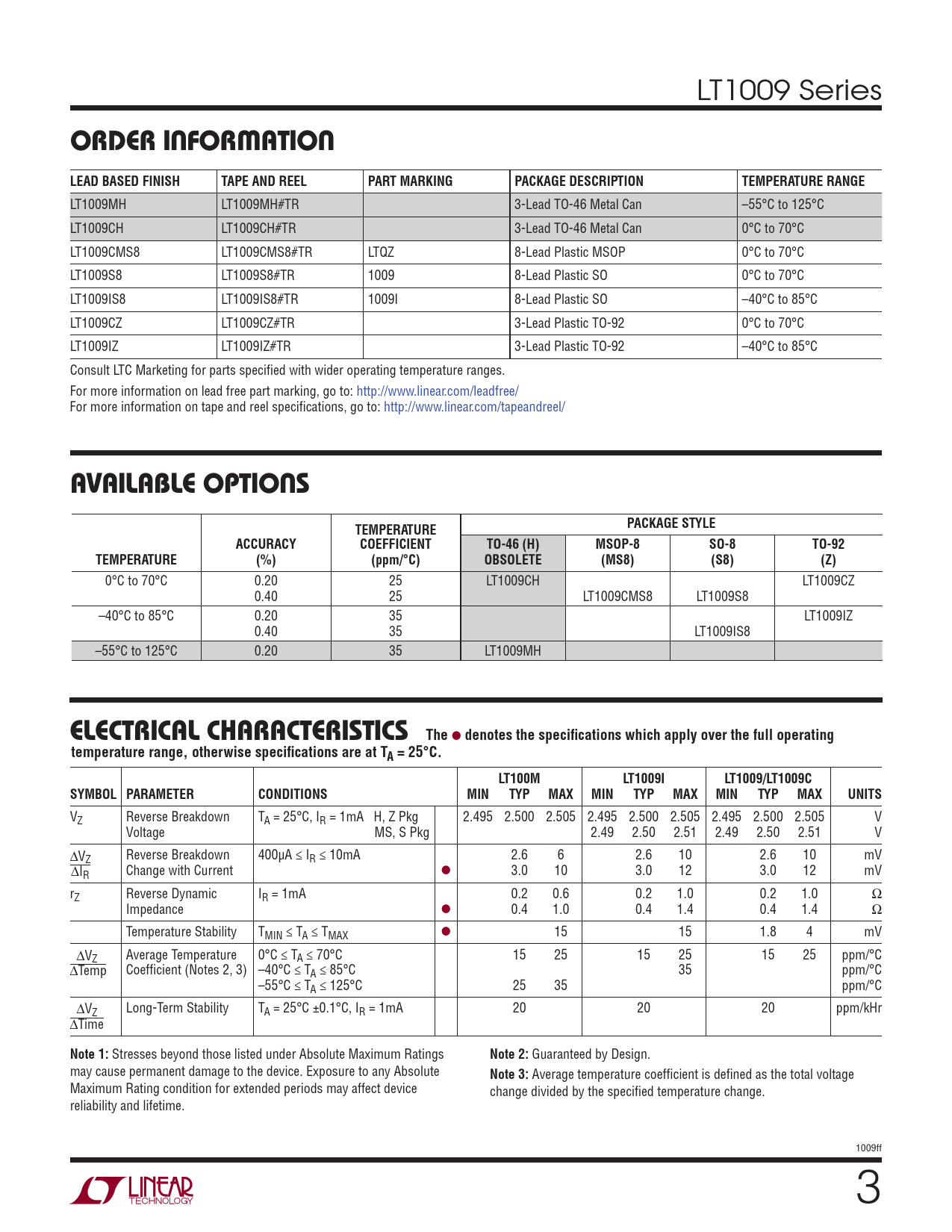

Datasheet LT1009 (Analog Devices) - 3
| 制造商 | Analog Devices |
| 描述 | 2.5V Reference |
| 页数 / 页 | 8 / 3 — ORDER INFORMATION. LEAD BASED FINISH. TAPE AND REEL. PART MARKING. … |
| 文件格式/大小 | PDF / 120 Kb |
| 文件语言 | 英语 |
ORDER INFORMATION. LEAD BASED FINISH. TAPE AND REEL. PART MARKING. PACKAGE DESCRIPTION. TEMPERATURE RANGE. AVAILABLE OPTIONS
该数据表的模型线
文件文字版本
LT1009 Series
ORDER INFORMATION LEAD BASED FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1009MH LT1009MH#TR 3-Lead TO-46 Metal Can –55°C to 125°C LT1009CH LT1009CH#TR 3-Lead TO-46 Metal Can 0°C to 70°C LT1009CMS8 LT1009CMS8#TR LTQZ 8-Lead Plastic MSOP 0°C to 70°C LT1009S8 LT1009S8#TR 1009 8-Lead Plastic SO 0°C to 70°C LT1009IS8 LT1009IS8#TR 1009I 8-Lead Plastic SO –40°C to 85°C LT1009CZ LT1009CZ#TR 3-Lead Plastic TO-92 0°C to 70°C LT1009IZ LT1009IZ#TR 3-Lead Plastic TO-92 –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/
AVAILABLE OPTIONS TEMPERATURE PACKAGE STYLE ACCURACY COEFFICIENT TO-46 (H) MSOP-8 SO-8 TO-92 TEMPERATURE (%) (ppm/°C) OBSOLETE (MS8) (S8) (Z)
0°C to 70°C 0.20 25 LT1009CH LT1009CZ 0.40 25 LT1009CMS8 LT1009S8 –40°C to 85°C 0.20 35 LT1009IZ 0.40 35 LT1009IS8 –55°C to 125°C 0.20 35 LT1009MH
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. LT100M LT1009I LT1009/LT1009C SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX MIN TYP MAX UNITS
VZ Reverse Breakdown TA = 25°C, IR = 1mA H, Z Pkg 2.495 2.500 2.505 2.495 2.500 2.505 2.495 2.500 2.505 V Voltage MS, S Pkg 2.49 2.50 2.51 2.49 2.50 2.51 V ΔVZ Reverse Breakdown 400μA ≤ IR ≤ 10mA 2.6 6 2.6 10 2.6 10 mV ΔI l R Change with Current 3.0 10 3.0 12 3.0 12 mV rZ Reverse Dynamic IR = 1mA 0.2 0.6 0.2 1.0 0.2 1.0 Ω Impedance l 0.4 1.0 0.4 1.4 0.4 1.4 Ω Temperature Stability TMIN ≤ TA ≤ TMAX l 15 15 1.8 4 mV ΔVZ Average Temperature 0°C ≤ TA ≤ 70°C 15 25 15 25 15 25 ppm/°C ΔTemp Coeffi cient (Notes 2, 3) –40°C ≤ TA ≤ 85°C 35 ppm/°C –55°C ≤ TA ≤ 125°C 25 35 ppm/°C ΔVZ Long-Term Stability TA = 25°C ±0.1°C, IR = 1mA 20 20 20 ppm/kHr ΔTime
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 2:
Guaranteed by Design. may cause permanent damage to the device. Exposure to any Absolute
Note 3:
Average temperature coeffi cient is defi ned as the total voltage Maximum Rating condition for extended periods may affect device change divided by the specifi ed temperature change. reliability and lifetime. 1009ff 3
