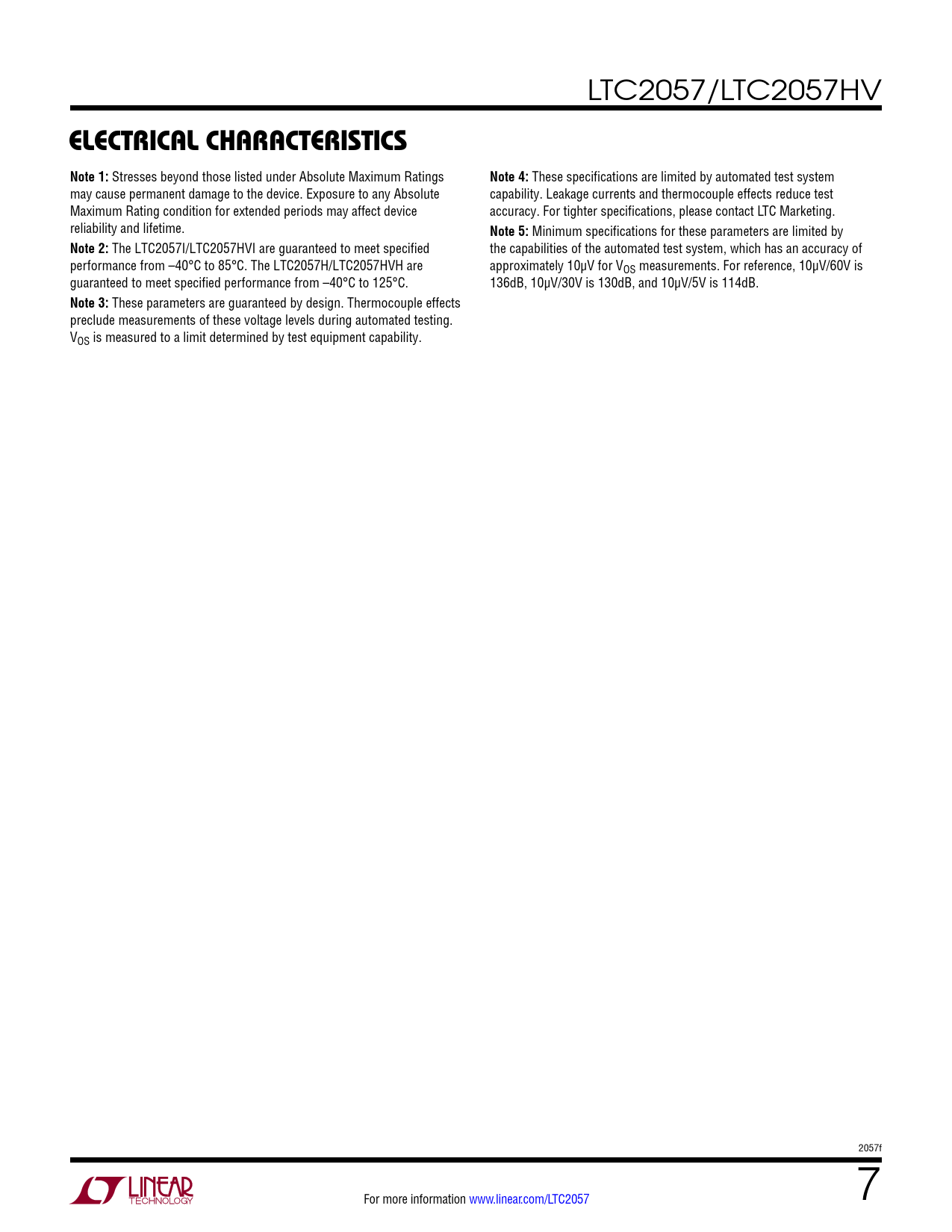

LTC2057/LTC2057HV
elecTrical characTerisTics Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 4:
These specifications are limited by automated test system may cause permanent damage to the device. Exposure to any Absolute capability. Leakage currents and thermocouple effects reduce test Maximum Rating condition for extended periods may affect device accuracy. For tighter specifications, please contact LTC Marketing. reliability and lifetime.
Note 5:
Minimum specifications for these parameters are limited by
Note 2:
The LTC2057I/LTC2057HVI are guaranteed to meet specified the capabilities of the automated test system, which has an accuracy of performance from –40°C to 85°C. The LTC2057H/LTC2057HVH are approximately 10µV for VOS measurements. For reference, 10µV/60V is guaranteed to meet specified performance from –40°C to 125°C. 136dB, 10µV/30V is 130dB, and 10µV/5V is 114dB.
Note 3:
These parameters are guaranteed by design. Thermocouple effects preclude measurements of these voltage levels during automated testing. VOS is measured to a limit determined by test equipment capability. 2057f For more information www.linear.com/LTC2057 7 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagrams Applications Information Typical Applications Package Description Typical Application Related Parts
