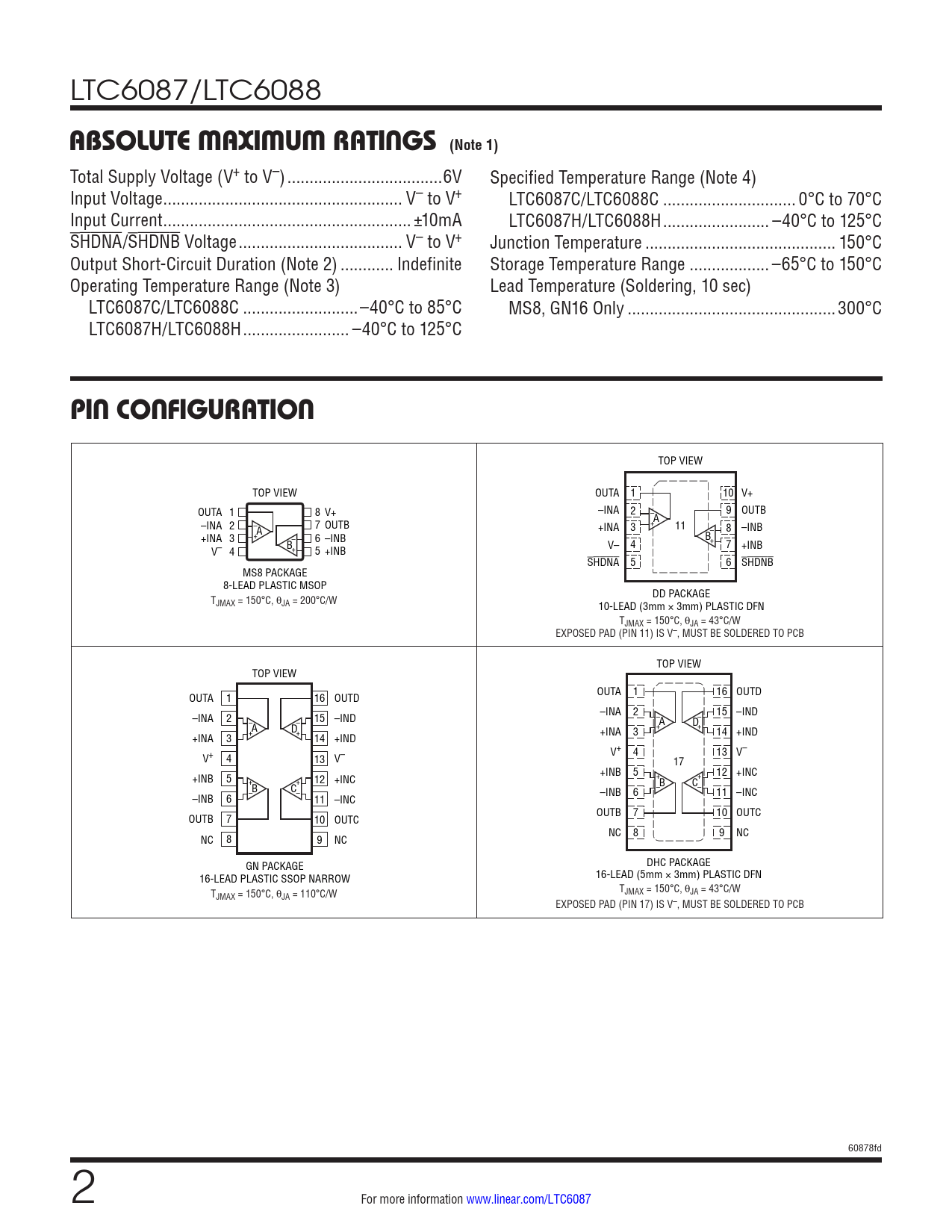

LTC6087/LTC6088
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V–) ...6V Specified Temperature Range (Note 4) Input Voltage .. V– to V+ LTC6087C/LTC6088C .. 0°C to 70°C Input Current .. ±10mA LTC6087H/LTC6088H .. –40°C to 125°C SHDNA/SHDNB Voltage ... V– to V+ Junction Temperature ... 150°C Output Short-Circuit Duration (Note 2) .. Indefinite Storage Temperature Range .. –65°C to 150°C Operating Temperature Range (Note 3) Lead Temperature (Soldering, 10 sec) LTC6087C/LTC6088C ..–40°C to 85°C MS8, GN16 Only ...300°C LTC6087H/LTC6088H .. –40°C to 125°C
PIN CONFIGURATION
TOP VIEW TOP VIEW OUTA 1 10 V+ OUTA 1 8 V+ –INA 2 – 9 OUTB A –INA 2 – 7 OUTB + A +INA 3 11 – 8 –INB +INA 3 + – 6 –INB B + B V– 4 7 +INB V– 4 + 5 +INB SHDNA 5 6 SHDNB MS8 PACKAGE 8-LEAD PLASTIC MSOP T DD PACKAGE JMAX = 150°C, θJA = 200°C/W 10-LEAD (3mm × 3mm) PLASTIC DFN TJMAX = 150°C, θJA = 43°C/W EXPOSED PAD (PIN 11) IS V–, MUST BE SOLDERED TO PCB TOP VIEW TOP VIEW OUTA 1 OUTA 1 16 OUTD 16 OUTD –INA 2 –INA 2 – – 15 –IND – – 15 –IND +A D + +A D + +INA 3 +INA 3 14 +IND 14 +IND V+ 4 13 V– V+ 4 13 V– 17 +INB 5 12 +INC +INB 5 + + + + 12 +INC B C B C –INB 6 – – 11 –INC –INB 6 – – 11 –INC OUTB 7 10 OUTC OUTB 7 10 OUTC NC 8 9 NC NC 8 9 NC GN PACKAGE DHC PACKAGE 16-LEAD PLASTIC SSOP NARROW 16-LEAD (5mm × 3mm) PLASTIC DFN T T JMAX = 150°C, θJA = 110°C/W JMAX = 150°C, θJA = 43°C/W EXPOSED PAD (PIN 17) IS V–, MUST BE SOLDERED TO PCB 60878fd 2 For more information www.linear.com/LTC6087 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Applications Information Simplified Schematic Package Description Revision History Typical Applications Related Parts
