LTC2054/LTC2055

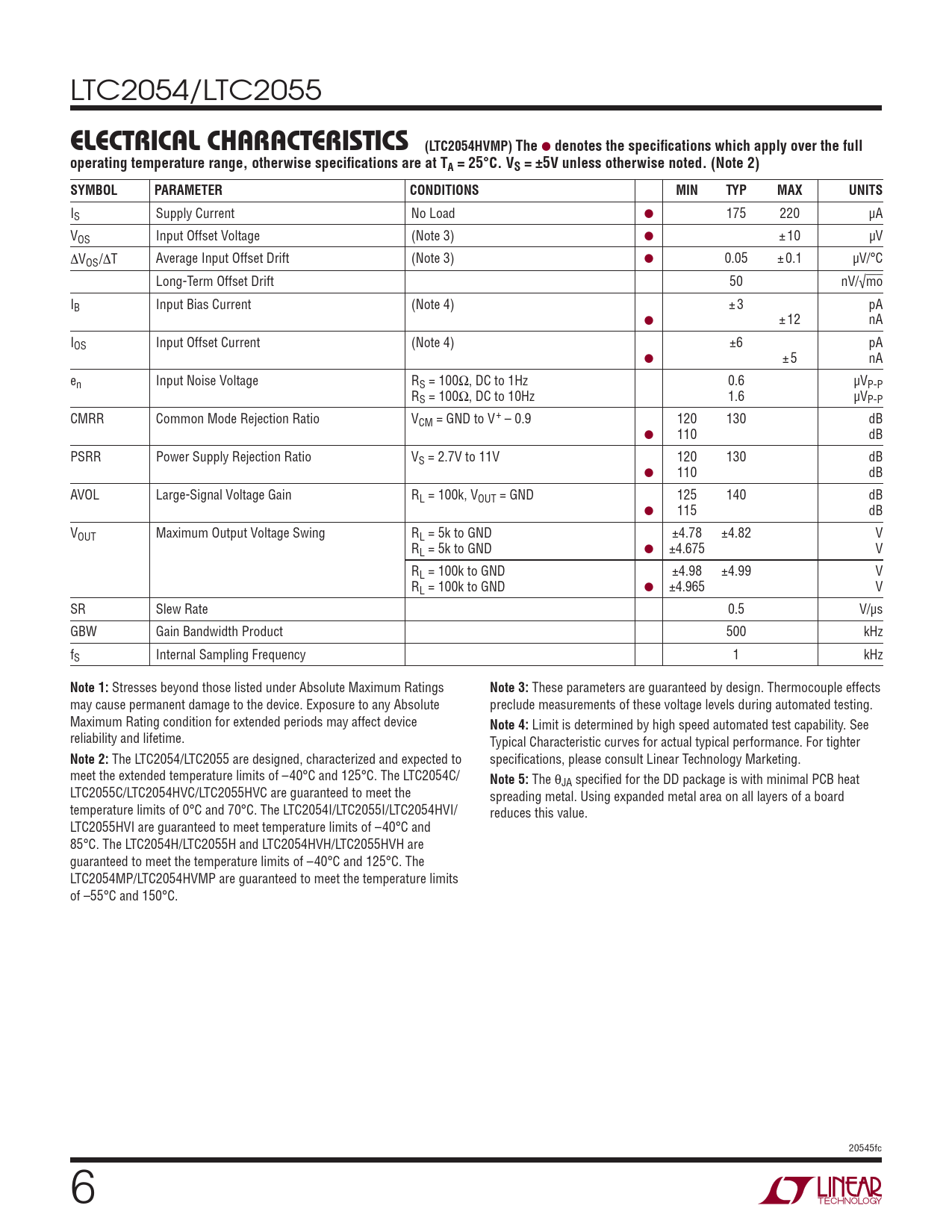

ELECTRICAL CHARACTERISTICS (LTC2054HVMP) The
●
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VS = ±5V unless otherwise noted. (Note 2) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
IS Supply Current No Load ● 175 220 μA VOS Input Offset Voltage (Note 3) ● ± 10 μV ΔVOS/ΔT Average Input Offset Drift (Note 3) ● 0.05 ± 0.1 μV/°C Long-Term Offset Drift 50 nV/√mo IB Input Bias Current (Note 4) ± 3 pA ● ± 12 nA IOS Input Offset Current (Note 4) ±6 pA ● ± 5 nA en Input Noise Voltage RS = 100Ω, DC to 1Hz 0.6 μVP-P RS = 100Ω, DC to 10Hz 1.6 μVP-P CMRR Common Mode Rejection Ratio VCM = GND to V+ – 0.9 120 130 dB ● 110 dB PSRR Power Supply Rejection Ratio VS = 2.7V to 11V 120 130 dB ● 110 dB AVOL Large-Signal Voltage Gain RL = 100k, VOUT = GND 125 140 dB ● 115 dB VOUT Maximum Output Voltage Swing RL = 5k to GND ±4.78 ±4.82 V RL = 5k to GND ● ±4.675 V RL = 100k to GND ±4.98 ±4.99 V RL = 100k to GND ● ±4.965 V SR Slew Rate 0.5 V/μs GBW Gain Bandwidth Product 500 kHz fS Internal Sampling Frequency 1 kHz
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 3:
These parameters are guaranteed by design. Thermocouple effects may cause permanent damage to the device. Exposure to any Absolute preclude measurements of these voltage levels during automated testing. Maximum Rating condition for extended periods may affect device
Note 4:
Limit is determined by high speed automated test capability. See reliability and lifetime. Typical Characteristic curves for actual typical performance. For tighter
Note 2:
The LTC2054/LTC2055 are designed, characterized and expected to specifi cations, please consult Linear Technology Marketing. meet the extended temperature limits of –40°C and 125°C. The LTC2054C/
Note 5:
The θJA specifi ed for the DD package is with minimal PCB heat LTC2055C/LTC2054HVC/LTC2055HVC are guaranteed to meet the spreading metal. Using expanded metal area on all layers of a board temperature limits of 0°C and 70°C. The LTC2054I/LTC2055I/LTC2054HVI/ reduces this value. LTC2055HVI are guaranteed to meet temperature limits of –40°C and 85°C. The LTC2054H/LTC2055H and LTC2054HVH/LTC2055HVH are guaranteed to meet the temperature limits of –40°C and 125°C. The LTC2054MP/LTC2054HVMP are guaranteed to meet the temperature limits of –55°C and 150°C. 20545fc 6
