Datasheet LT6011, LT6012 (Analog Devices) - 6
| 制造商 | Analog Devices |
| 描述 | Dual/Quad 135µA, 14nV/√Hz, Rail-to-Rail Output Precision Op Amp |
| 页数 / 页 | 20 / 6 — elecTrical characTerisTics. The. denotes the specifications which apply … |
| 文件格式/大小 | PDF / 384 Kb |
| 文件语言 | 英语 |

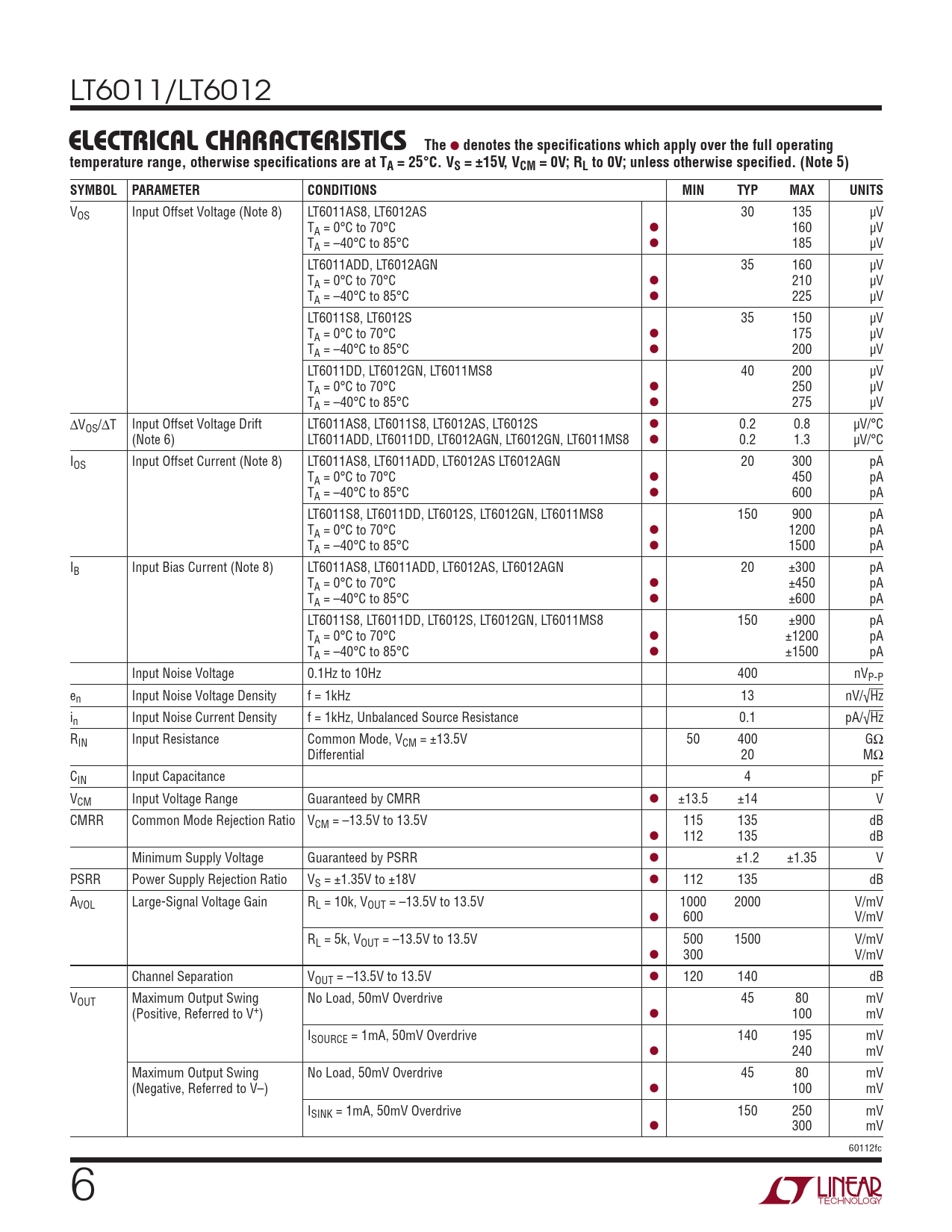

elecTrical characTerisTics. The. denotes the specifications which apply over the full operating
该数据表的模型线
- LT6011ACDD#PBF LT6011ACDD#TRPBF LT6011ACS8#PBF LT6011ACS8#TRPBF LT6011AIDD#PBF LT6011AIDD#TRPBF LT6011AIS8#PBF LT6011AIS8#TRPBF LT6011CDD#PBF LT6011CDD#TRPBF LT6011CMS8#PBF LT6011CMS8#TRPBF LT6011CS8#PBF LT6011CS8#TRPBF LT6011IDD#PBF LT6011IDD#TRPBF LT6011IMS8#PBF LT6011IMS8#TRPBF LT6011IS8#PBF LT6011IS8#TRPBF
文件文字版本
LT6011/LT6012
elecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VS = ±15V, VCM = 0V; RL to 0V; unless otherwise specified. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage (Note 8) LT6011AS8, LT6012AS 30 135 µV TA = 0°C to 70°C l 160 µV TA = –40°C to 85°C l 185 µV LT6011ADD, LT6012AGN 35 160 µV TA = 0°C to 70°C l 210 µV TA = –40°C to 85°C l 225 µV LT6011S8, LT6012S 35 150 µV TA = 0°C to 70°C l 175 µV TA = –40°C to 85°C l 200 µV LT6011DD, LT6012GN, LT6011MS8 40 200 µV TA = 0°C to 70°C l 250 µV TA = –40°C to 85°C l 275 µV ∆VOS/∆T Input Offset Voltage Drift LT6011AS8, LT6011S8, LT6012AS, LT6012S l 0.2 0.8 µV/°C (Note 6) LT6011ADD, LT6011DD, LT6012AGN, LT6012GN, LT6011MS8 l 0.2 1.3 µV/°C IOS Input Offset Current (Note 8) LT6011AS8, LT6011ADD, LT6012AS LT6012AGN 20 300 pA TA = 0°C to 70°C l 450 pA TA = –40°C to 85°C l 600 pA LT6011S8, LT6011DD, LT6012S, LT6012GN, LT6011MS8 150 900 pA TA = 0°C to 70°C l 1200 pA TA = –40°C to 85°C l 1500 pA IB Input Bias Current (Note 8) LT6011AS8, LT6011ADD, LT6012AS, LT6012AGN 20 ±300 pA TA = 0°C to 70°C l ±450 pA TA = –40°C to 85°C l ±600 pA LT6011S8, LT6011DD, LT6012S, LT6012GN, LT6011MS8 150 ±900 pA TA = 0°C to 70°C l ±1200 pA TA = –40°C to 85°C l ±1500 pA Input Noise Voltage 0.1Hz to 10Hz 400 nVP-P en Input Noise Voltage Density f = 1kHz 13 nV/√Hz in Input Noise Current Density f = 1kHz, Unbalanced Source Resistance 0.1 pA/√Hz RIN Input Resistance Common Mode, VCM = ±13.5V 50 400 GΩ Differential 20 MΩ CIN Input Capacitance 4 pF VCM Input Voltage Range Guaranteed by CMRR l ±13.5 ±14 V CMRR Common Mode Rejection Ratio VCM = –13.5V to 13.5V 115 135 dB l 112 135 dB Minimum Supply Voltage Guaranteed by PSRR l ±1.2 ±1.35 V PSRR Power Supply Rejection Ratio VS = ±1.35V to ±18V l 112 135 dB AVOL Large-Signal Voltage Gain RL = 10k, VOUT = –13.5V to 13.5V 1000 2000 V/mV l 600 V/mV RL = 5k, VOUT = –13.5V to 13.5V 500 1500 V/mV l 300 V/mV Channel Separation VOUT = –13.5V to 13.5V l 120 140 dB VOUT Maximum Output Swing No Load, 50mV Overdrive 45 80 mV (Positive, Referred to V+) l 100 mV ISOURCE = 1mA, 50mV Overdrive 140 195 mV l 240 mV Maximum Output Swing No Load, 50mV Overdrive 45 80 mV (Negative, Referred to V–) l 100 mV ISINK = 1mA, 50mV Overdrive 150 250 mV l 300 mV 60112fc 6 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Package/Order Information Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Simplified Schematic Package Description Revision History Typical Application Related Parts
