PACKAGE DESCRIPTIO. Dimensions in inches (millimeters) unless otherwise noted. N8 Package. 8-Lead PDIP (Narrow 0.300)
该数据表的模型线
文件文字版本
LT1884/LT1885

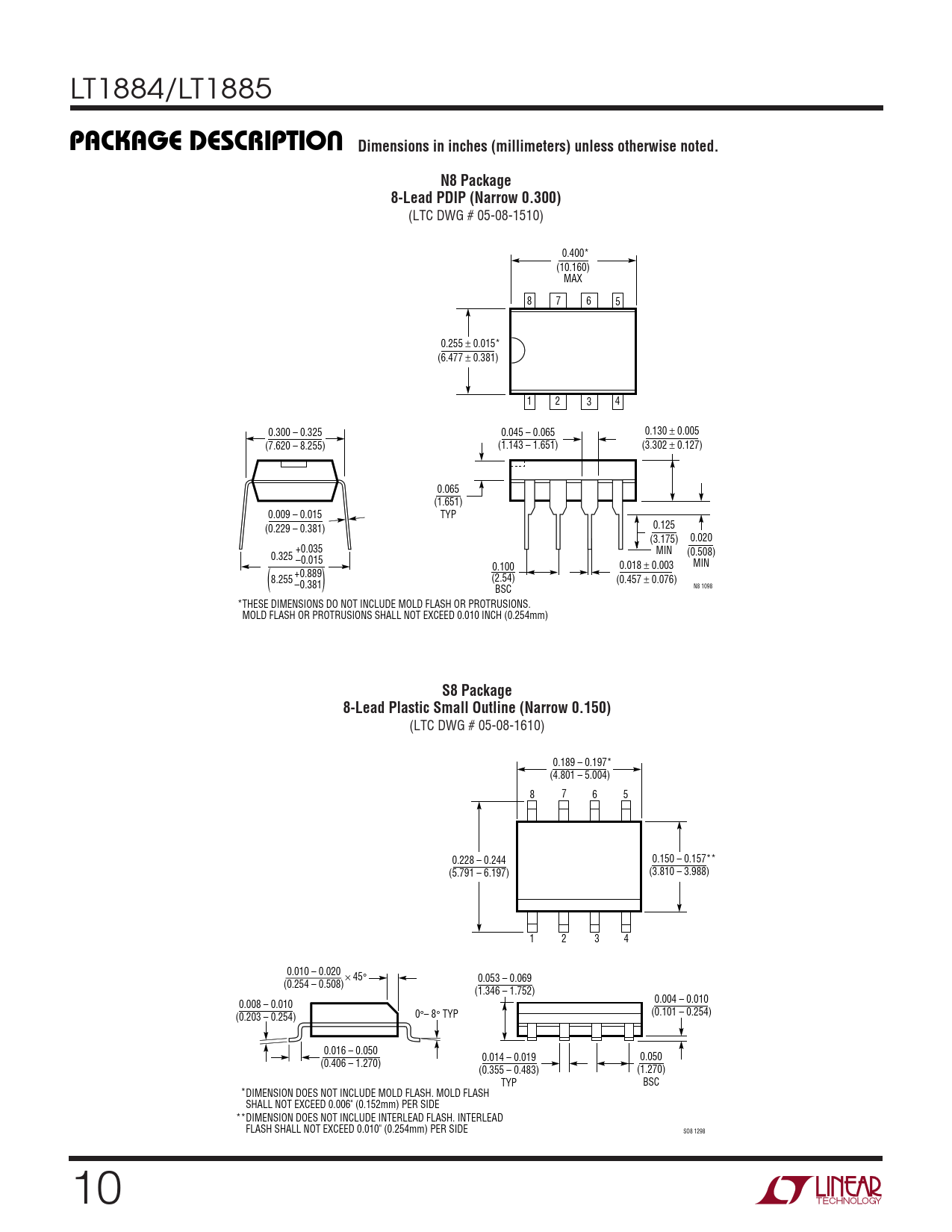

U PACKAGE DESCRIPTIO Dimensions in inches (millimeters) unless otherwise noted. N8 Package 8-Lead PDIP (Narrow 0.300)
(LTC DWG # 05-08-1510) 0.400* (10.160) MAX 8 7 6 5 0.255 ± 0.015* (6.477 ± 0.381) 1 2 3 4 0.300 – 0.325 0.045 – 0.065 0.130 ± 0.005 (7.620 – 8.255) (1.143 – 1.651) (3.302 ± 0.127) 0.065 (1.651) 0.009 – 0.015 TYP 0.125 (0.229 – 0.381) (3.175) 0.020 +0.035 MIN (0.508) 0.325 –0.015 0.100 MIN 0.018 ± 0.003 +0.889 8.255 (2.54) (0.457 ± 0.076) ( ) –0.381 N8 1098 BSC *THESE DIMENSIONS DO NOT INCLUDE MOLD FLASH OR PROTRUSIONS. MOLD FLASH OR PROTRUSIONS SHALL NOT EXCEED 0.010 INCH (0.254mm)
S8 Package 8-Lead Plastic Small Outline (Narrow 0.150)
(LTC DWG # 05-08-1610) 0.189 – 0.197* (4.801 – 5.004) 8 7 6 5 0.228 – 0.244 0.150 – 0.157** (5.791 – 6.197) (3.810 – 3.988) 1 2 3 4 0.010 – 0.020 × 45° 0.053 – 0.069 (0.254 – 0.508) (1.346 – 1.752) 0.004 – 0.010 0.008 – 0.010 0 (0.101 – 0.254) (0.203 – 0.254) °– 8° TYP 0.016 – 0.050 0.014 – 0.019 0.050 (0.406 – 1.270) (0.355 – 0.483) (1.270) TYP BSC *DIMENSION DOES NOT INCLUDE MOLD FLASH. MOLD FLASH SHALL NOT EXCEED 0.006" (0.152mm) PER SIDE **DIMENSION DOES NOT INCLUDE INTERLEAD FLASH. INTERLEAD FLASH SHALL NOT EXCEED 0.010" (0.254mm) PER SIDE SO8 1298 10
