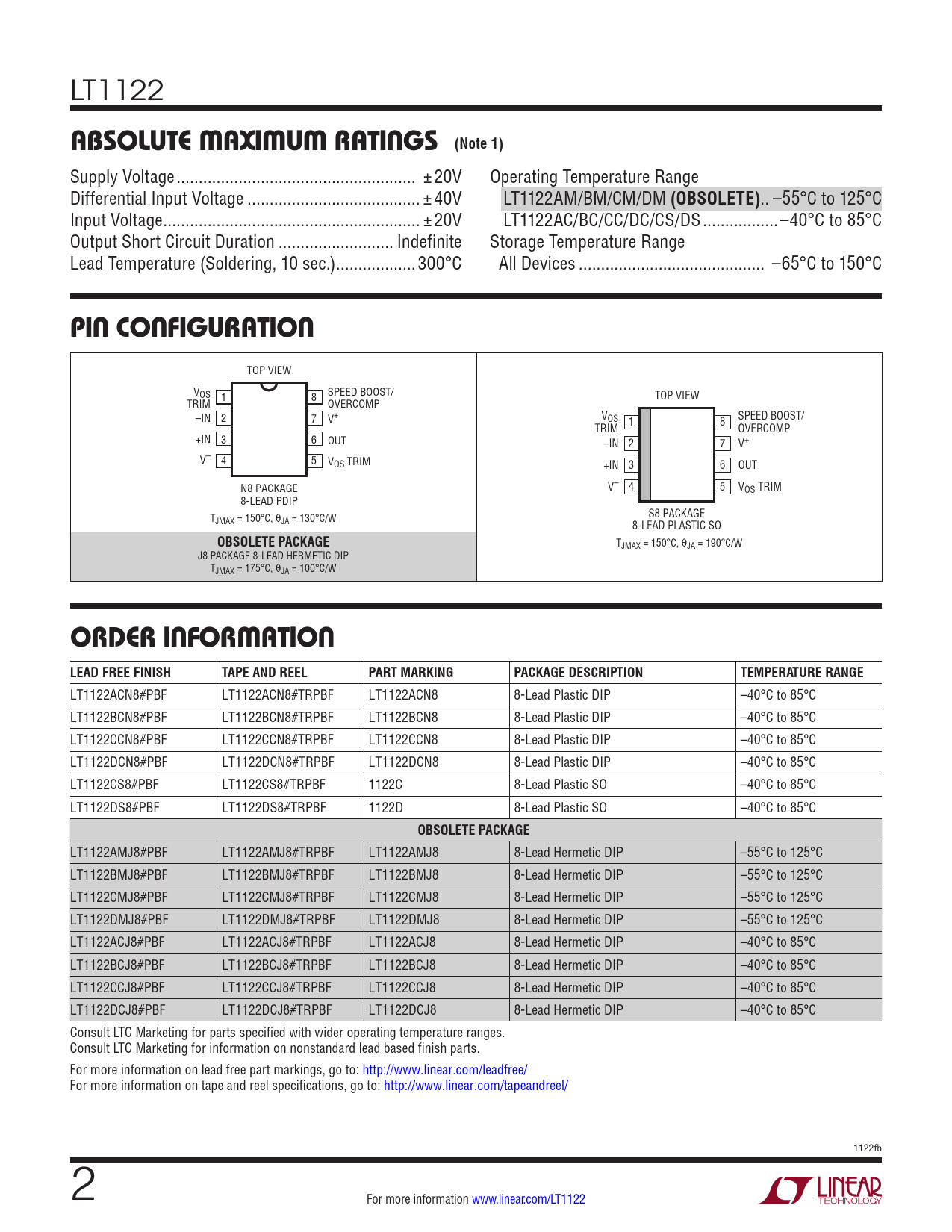

LT1122
ABSOLUTE MAXIMUM RATINGS (Note 1)
Supply Voltage .. ± 20V Operating Temperature Range Differential Input Voltage ... ± 40V LT1122AM/BM/CM/DM
(OBSOLETE)
.. –55°C to 125°C Input Voltage .. ± 20V LT1122AC/BC/CC/DC/CS/DS ...–40°C to 85°C Output Short Circuit Duration .. Indefinite Storage Temperature Range Lead Temperature (Soldering, 10 sec.) ..300°C Al Devices .. –65°C to 150°C
PIN CONFIGURATION
TOP VIEW VOS 1 8 SPEED BOOST/ TOP VIEW TRIM OVERCOMP –IN 2 7 V+ VOS 1 8 SPEED BOOST/ TRIM OVERCOMP +IN 3 6 OUT –IN 2 7 V+ V– 4 5 VOS TRIM +IN 3 6 OUT N8 PACKAGE V– 4 5 VOS TRIM 8-LEAD PDIP T S8 PACKAGE JMAX = 150°C, θJA = 130°C/W 8-LEAD PLASTIC SO
OBSOLETE PACKAGE
TJMAX = 150°C, θJA = 190°C/W J8 PACKAGE 8-LEAD HERMETIC DIP TJMAX = 175°C, θJA = 100°C/W
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1122ACN8#PBF LT1122ACN8#TRPBF LT1122ACN8 8-Lead Plastic DIP –40°C to 85°C LT1122BCN8#PBF LT1122BCN8#TRPBF LT1122BCN8 8-Lead Plastic DIP –40°C to 85°C LT1122CCN8#PBF LT1122CCN8#TRPBF LT1122CCN8 8-Lead Plastic DIP –40°C to 85°C LT1122DCN8#PBF LT1122DCN8#TRPBF LT1122DCN8 8-Lead Plastic DIP –40°C to 85°C LT1122CS8#PBF LT1122CS8#TRPBF 1122C 8-Lead Plastic SO –40°C to 85°C LT1122DS8#PBF LT1122DS8#TRPBF 1122D 8-Lead Plastic SO –40°C to 85°C
OBSOLETE PACKAGE
LT1122AMJ8#PBF LT1122AMJ8#TRPBF LT1122AMJ8 8-Lead Hermetic DIP –55°C to 125°C LT1122BMJ8#PBF LT1122BMJ8#TRPBF LT1122BMJ8 8-Lead Hermetic DIP –55°C to 125°C LT1122CMJ8#PBF LT1122CMJ8#TRPBF LT1122CMJ8 8-Lead Hermetic DIP –55°C to 125°C LT1122DMJ8#PBF LT1122DMJ8#TRPBF LT1122DMJ8 8-Lead Hermetic DIP –55°C to 125°C LT1122ACJ8#PBF LT1122ACJ8#TRPBF LT1122ACJ8 8-Lead Hermetic DIP –40°C to 85°C LT1122BCJ8#PBF LT1122BCJ8#TRPBF LT1122BCJ8 8-Lead Hermetic DIP –40°C to 85°C LT1122CCJ8#PBF LT1122CCJ8#TRPBF LT1122CCJ8 8-Lead Hermetic DIP –40°C to 85°C LT1122DCJ8#PBF LT1122DCJ8#TRPBF LT1122DCJ8 8-Lead Hermetic DIP –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on nonstandard lead based finish parts. For more information on lead free part markings, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 1122fb 2 For more information www.linear.com/LT1122
