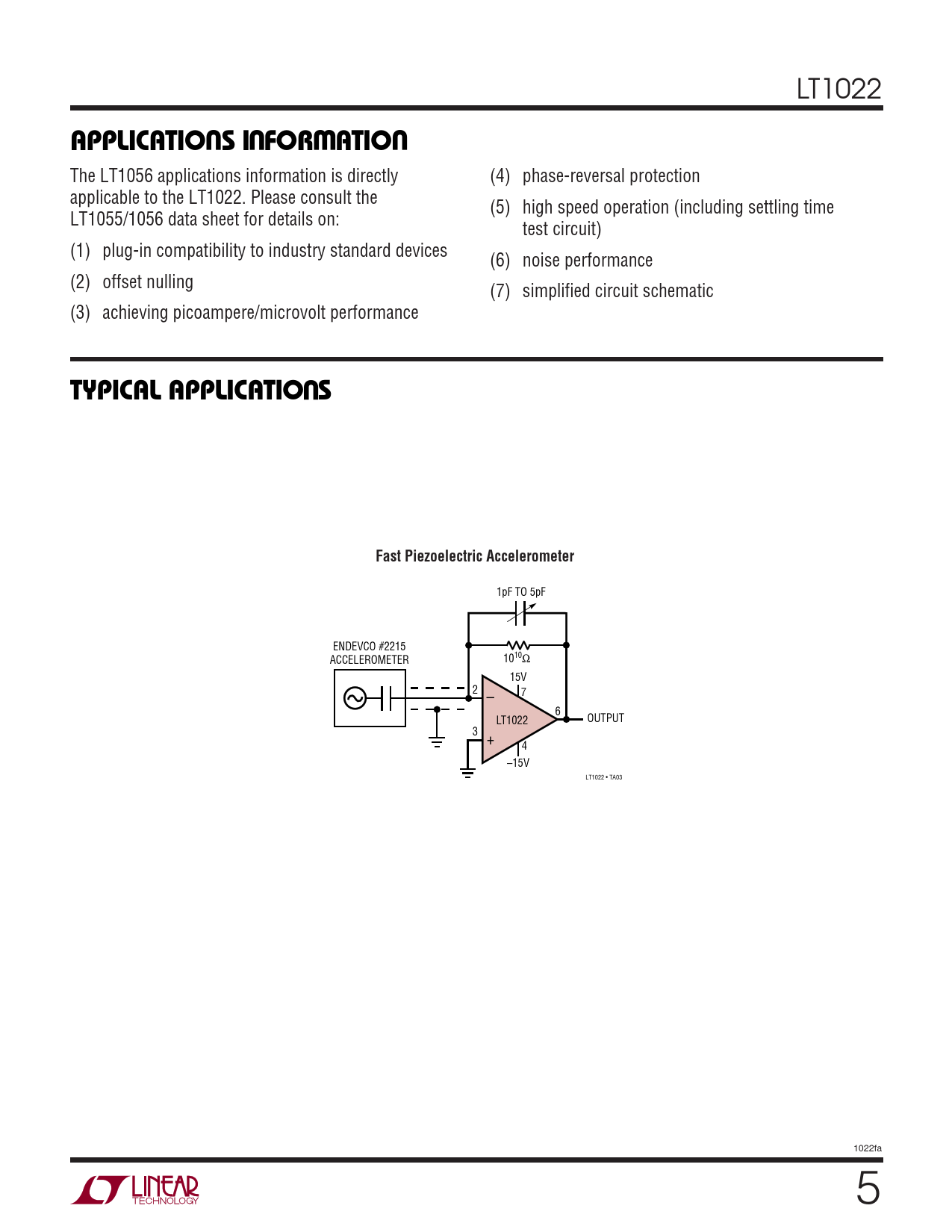

LT1022
U U W U APPLICATIO S I FOR ATIO
The LT1056 applications information is directly (4) phase-reversal protection applicable to the LT1022. Please consult the (5) high speed operation (including settling time LT1055/1056 data sheet for details on: test circuit) (1) plug-in compatibility to industry standard devices (6) noise performance (2) offset nulling (7) simplified circuit schematic (3) achieving picoampere/microvolt performance
U TYPICAL APPLICATIO S Fast Piezoelectric Accelerometer
1pF TO 5pF ENDEVCO #2215 ACCELEROMETER 1010Ω 15V 2 7 – 6 OUTPUT LT1022 3 + 4 –15V LT1022 • TA03 1022fa 5
