Datasheet LT1022 (Analog Devices) - 9
| 制造商 | Analog Devices |
| 描述 | High Speed, Precision JFET Input Operational Amplifier |
| 页数 / 页 | 12 / 9 — TYPICAL APPLICATIO S. High Output Current Op Amp. Low Distortion Sine … |
| 文件格式/大小 | PDF / 165 Kb |
| 文件语言 | 英语 |
TYPICAL APPLICATIO S. High Output Current Op Amp. Low Distortion Sine Wave Oscillator
该数据表的模型线
文件文字版本

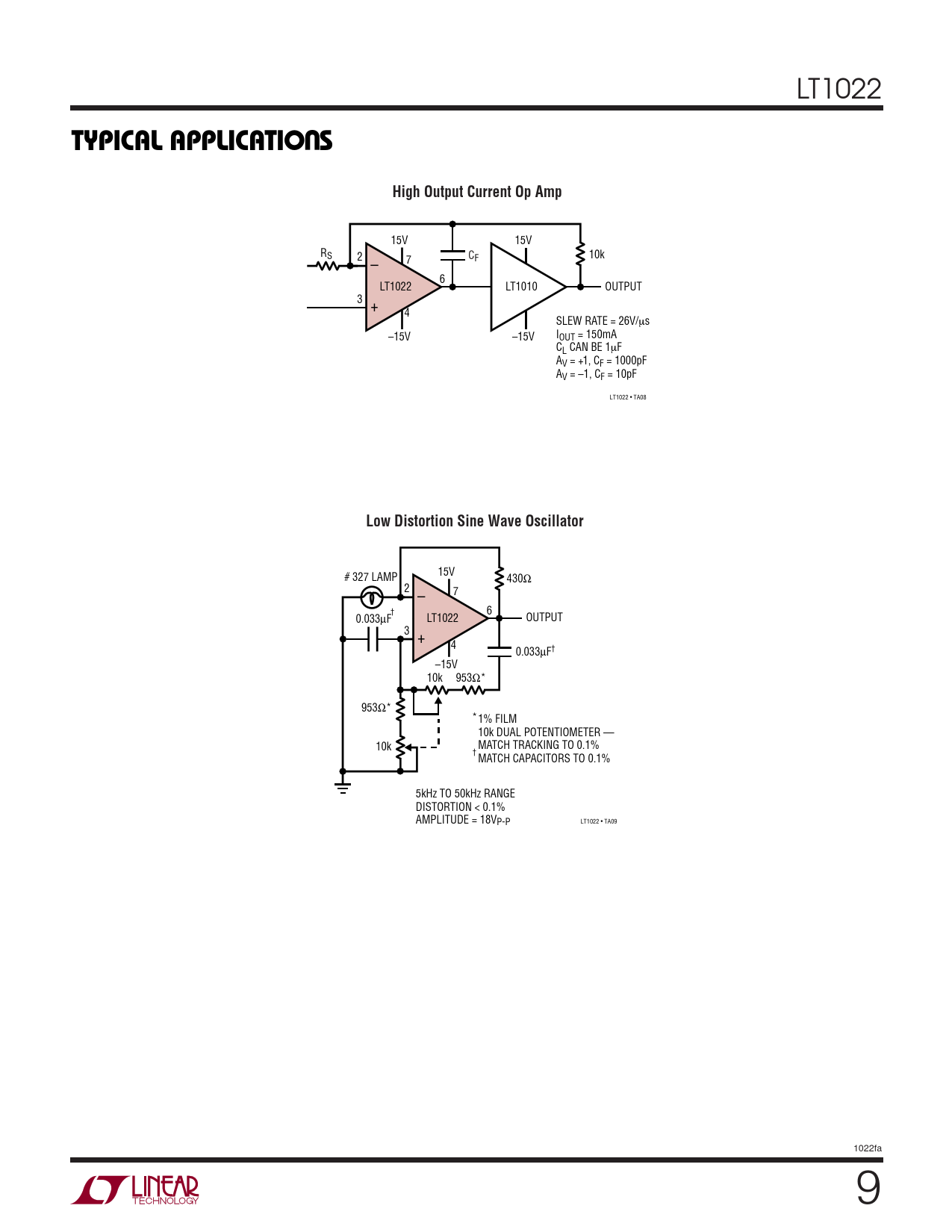

LT1022
U TYPICAL APPLICATIO S High Output Current Op Amp
15V 15V RS 2 CF 10k 7 – 6 LT1022 LT1010 OUTPUT 3 + 4 SLEW RATE = 26V/µs –15V –15V IOUT = 150mA CL CAN BE 1µF AV = +1, CF = 1000pF AV = –1, CF = 10pF LT1022 • TA08
Low Distortion Sine Wave Oscillator
15V # 327 LAMP 430Ω 2 7 – † 6 0.033µF LT1022 OUTPUT 3 + 4 0.033µF† –15V 10k 953Ω* 953Ω* *1% FILM 10k DUAL POTENTIOMETER — 10k MATCH TRACKING TO 0.1% † MATCH CAPACITORS TO 0.1% 5kHz TO 50kHz RANGE DISTORTION < 0.1% AMPLITUDE = 18V LT1022 • TA09 P-P 1022fa 9
