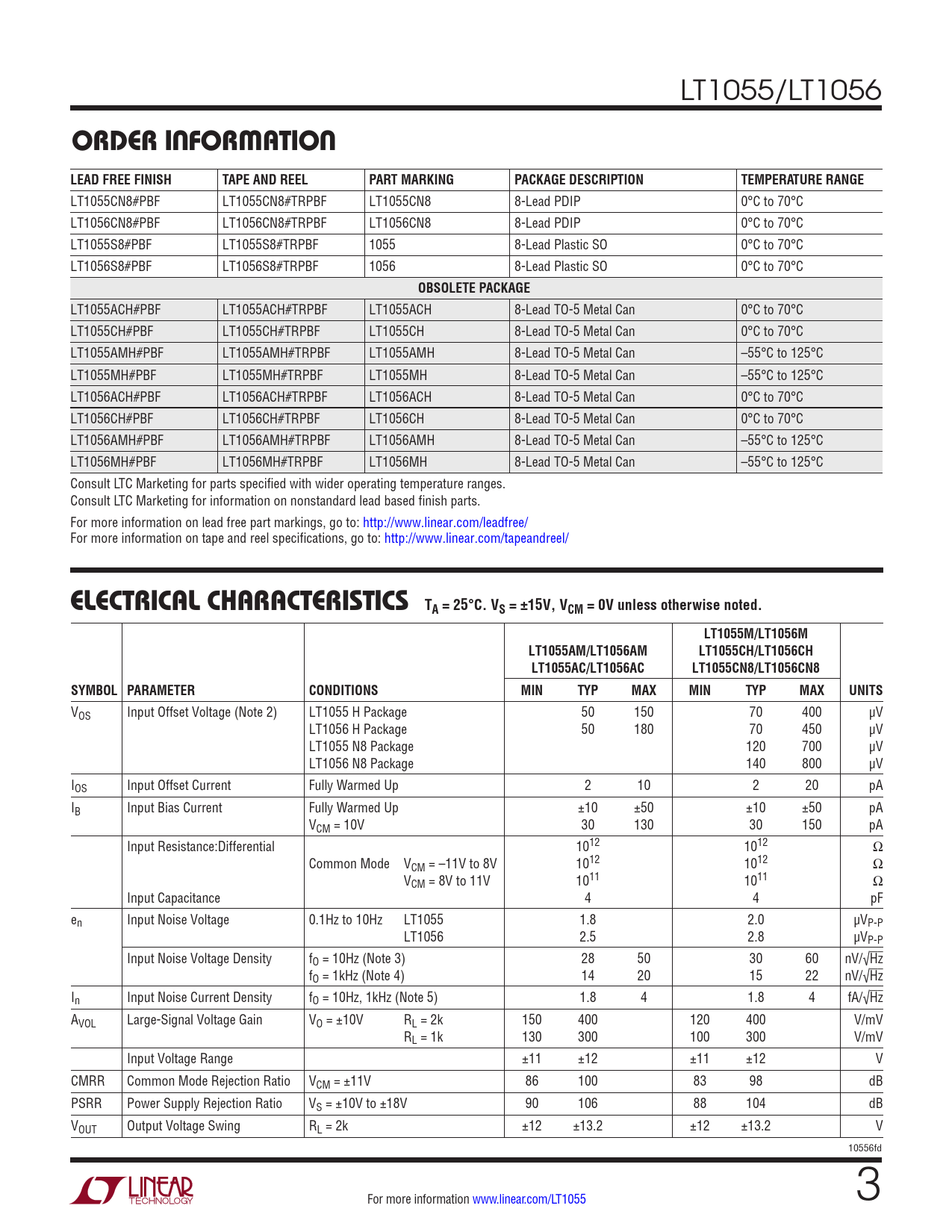

LT1055/LT1056
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1055CN8#PBF LT1055CN8#TRPBF LT1055CN8 8-Lead PDIP 0°C to 70°C LT1056CN8#PBF LT1056CN8#TRPBF LT1056CN8 8-Lead PDIP 0°C to 70°C LT1055S8#PBF LT1055S8#TRPBF 1055 8-Lead Plastic SO 0°C to 70°C LT1056S8#PBF LT1056S8#TRPBF 1056 8-Lead Plastic SO 0°C to 70°C
OBSOLETE PACKAGE
LT1055ACH#PBF LT1055ACH#TRPBF LT1055ACH 8-Lead TO-5 Metal Can 0°C to 70°C LT1055CH#PBF LT1055CH#TRPBF LT1055CH 8-Lead TO-5 Metal Can 0°C to 70°C LT1055AMH#PBF LT1055AMH#TRPBF LT1055AMH 8-Lead TO-5 Metal Can –55°C to 125°C LT1055MH#PBF LT1055MH#TRPBF LT1055MH 8-Lead TO-5 Metal Can –55°C to 125°C LT1056ACH#PBF LT1056ACH#TRPBF LT1056ACH 8-Lead TO-5 Metal Can 0°C to 70°C LT1056CH#PBF LT1056CH#TRPBF LT1056CH 8-Lead TO-5 Metal Can 0°C to 70°C LT1056AMH#PBF LT1056AMH#TRPBF LT1056AMH 8-Lead TO-5 Metal Can –55°C to 125°C LT1056MH#PBF LT1056MH#TRPBF LT1056MH 8-Lead TO-5 Metal Can –55°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on nonstandard lead based finish parts. For more information on lead free part markings, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
ELECTRICAL CHARACTERISTICS TA = 25°C. VS = ±15V, VCM = 0V unless otherwise noted. LT1055M/LT1056M LT1055AM/LT1056AM LT1055CH/LT1056CH LT1055AC/LT1056AC LT1055CN8/LT1056CN8 SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage (Note 2) LT1055 H Package 50 150 70 400 µV LT1056 H Package 50 180 70 450 µV LT1055 N8 Package 120 700 µV LT1056 N8 Package 140 800 µV IOS Input Offset Current Fully Warmed Up 2 10 2 20 pA IB Input Bias Current Fully Warmed Up ±10 ±50 ±10 ±50 pA VCM = 10V 30 130 30 150 pA Input Resistance:Differential 1012 1012 Ω Common Mode VCM = –11V to 8V 1012 1012 Ω VCM = 8V to 11V 1011 1011 Ω Input Capacitance 4 4 pF en Input Noise Voltage 0.1Hz to 10Hz LT1055 1.8 2.0 µVP-P LT1056 2.5 2.8 µVP-P Input Noise Voltage Density fO = 10Hz (Note 3) 28 50 30 60 nV/√Hz fO = 1kHz (Note 4) 14 20 15 22 nV/√Hz In Input Noise Current Density fO = 10Hz, 1kHz (Note 5) 1.8 4 1.8 4 fA/√Hz AVOL Large-Signal Voltage Gain VO = ±10V RL = 2k 150 400 120 400 V/mV RL = 1k 130 300 100 300 V/mV Input Voltage Range ±11 ±12 ±11 ±12 V CMRR Common Mode Rejection Ratio VCM = ±11V 86 100 83 98 dB PSRR Power Supply Rejection Ratio VS = ±10V to ±18V 90 106 88 104 dB VOUT Output Voltage Swing RL = 2k ±12 ±13.2 ±12 ±13.2 V 10556fd For more information www.linear.com/LT1055 3 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Typical Applications Simplified schematic Package Description Revision History Typical Application Related Parts
