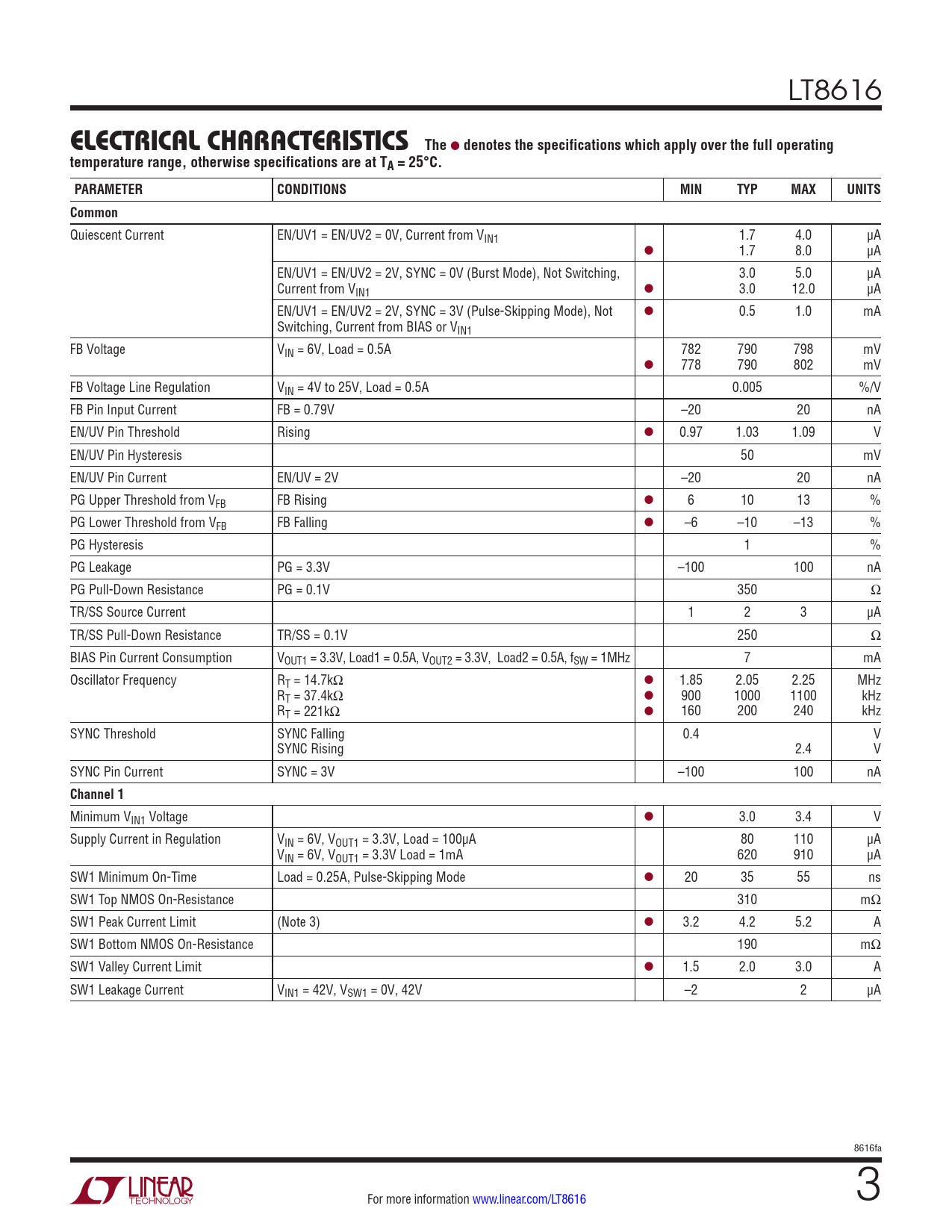

LT8616
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. PARAMETER CONDITIONS MIN TYP MAX UNITS Common
Quiescent Current EN/UV1 = EN/UV2 = 0V, Current from VIN1 1.7 4.0 µA l 1.7 8.0 µA EN/UV1 = EN/UV2 = 2V, SYNC = 0V (Burst Mode), Not Switching, 3.0 5.0 µA Current from VIN1 l 3.0 12.0 µA EN/UV1 = EN/UV2 = 2V, SYNC = 3V (Pulse-Skipping Mode), Not l 0.5 1.0 mA Switching, Current from BIAS or VIN1 FB Voltage VIN = 6V, Load = 0.5A 782 790 798 mV l 778 790 802 mV FB Voltage Line Regulation VIN = 4V to 25V, Load = 0.5A 0.005 %/V FB Pin Input Current FB = 0.79V –20 20 nA EN/UV Pin Threshold Rising l 0.97 1.03 1.09 V EN/UV Pin Hysteresis 50 mV EN/UV Pin Current EN/UV = 2V –20 20 nA PG Upper Threshold from VFB FB Rising l 6 10 13 % PG Lower Threshold from VFB FB Falling l –6 –10 –13 % PG Hysteresis 1 % PG Leakage PG = 3.3V –100 100 nA PG Pull-Down Resistance PG = 0.1V 350 Ω TR/SS Source Current 1 2 3 µA TR/SS Pull-Down Resistance TR/SS = 0.1V 250 Ω BIAS Pin Current Consumption VOUT1 = 3.3V, Load1 = 0.5A, VOUT2 = 3.3V, Load2 = 0.5A, fSW = 1MHz 7 mA Oscillator Frequency RT = 14.7kΩ l 1.85 2.05 2.25 MHz RT = 37.4kΩ l 900 1000 1100 kHz RT = 221kΩ l 160 200 240 kHz SYNC Threshold SYNC Falling 0.4 V SYNC Rising 2.4 V SYNC Pin Current SYNC = 3V –100 100 nA
