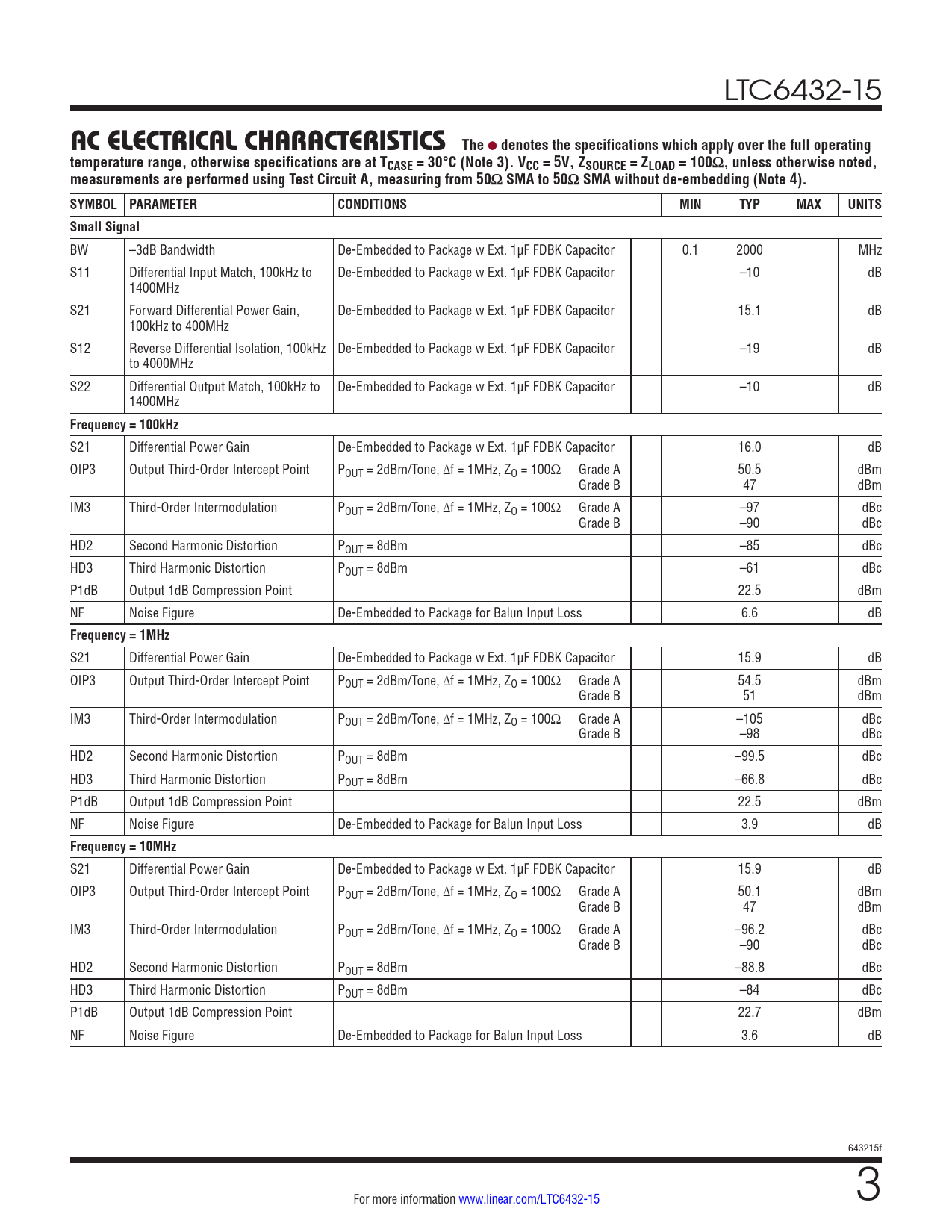

AC ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the full operating
该数据表的模型线
文件文字版本
LTC6432-15
AC ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TCASE = 30°C (Note 3). VCC = 5V, ZSOURCE = ZLOAD = 100Ω, unless otherwise noted, measurements are performed using Test Circuit A, measuring from 50Ω SMA to 50Ω SMA without de-embedding (Note 4). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Small Signal
BW –3dB Bandwidth De-Embedded to Package w Ext. 1µF FDBK Capacitor 0.1 2000 MHz S11 Differential Input Match, 100kHz to De-Embedded to Package w Ext. 1µF FDBK Capacitor –10 dB 1400MHz S21 Forward Differential Power Gain, De-Embedded to Package w Ext. 1µF FDBK Capacitor 15.1 dB 100kHz to 400MHz S12 Reverse Differential Isolation, 100kHz De-Embedded to Package w Ext. 1µF FDBK Capacitor –19 dB to 4000MHz S22 Differential Output Match, 100kHz to De-Embedded to Package w Ext. 1µF FDBK Capacitor –10 dB 1400MHz
Frequency = 100kHz
S21 Differential Power Gain De-Embedded to Package w Ext. 1µF FDBK Capacitor 16.0 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, ∆f = 1MHz, ZO = 100Ω Grade A 50.5 dBm Grade B 47 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, ∆f = 1MHz, ZO = 100Ω Grade A –97 dBc Grade B –90 dBc HD2 Second Harmonic Distortion POUT = 8dBm –85 dBc HD3 Third Harmonic Distortion POUT = 8dBm –61 dBc P1dB Output 1dB Compression Point 22.5 dBm NF Noise Figure De-Embedded to Package for Balun Input Loss 6.6 dB
Frequency = 1MHz
S21 Differential Power Gain De-Embedded to Package w Ext. 1µF FDBK Capacitor 15.9 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, ∆f = 1MHz, ZO = 100Ω Grade A 54.5 dBm Grade B 51 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, ∆f = 1MHz, ZO = 100Ω Grade A –105 dBc Grade B –98 dBc HD2 Second Harmonic Distortion POUT = 8dBm –99.5 dBc HD3 Third Harmonic Distortion POUT = 8dBm –66.8 dBc P1dB Output 1dB Compression Point 22.5 dBm NF Noise Figure De-Embedded to Package for Balun Input Loss 3.9 dB
Frequency = 10MHz
S21 Differential Power Gain De-Embedded to Package w Ext. 1µF FDBK Capacitor 15.9 dB OIP3 Output Third-Order Intercept Point POUT = 2dBm/Tone, ∆f = 1MHz, ZO = 100Ω Grade A 50.1 dBm Grade B 47 dBm IM3 Third-Order Intermodulation POUT = 2dBm/Tone, ∆f = 1MHz, ZO = 100Ω Grade A –96.2 dBc Grade B –90 dBc HD2 Second Harmonic Distortion POUT = 8dBm –88.8 dBc HD3 Third Harmonic Distortion POUT = 8dBm –84 dBc P1dB Output 1dB Compression Point 22.7 dBm NF Noise Figure De-Embedded to Package for Balun Input Loss 3.6 dB 643215f For more information www.linear.com/LTC6432-15 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information DC Electrical Characteristics AC Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuit A Operation Applications Information Differential S Parameters Package Description Typical Application Related Parts
