absoluTe MaxiMuM raTings. pin conFiguraTion. (Note 1). orDer inForMaTion LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
该数据表的模型线
文件文字版本

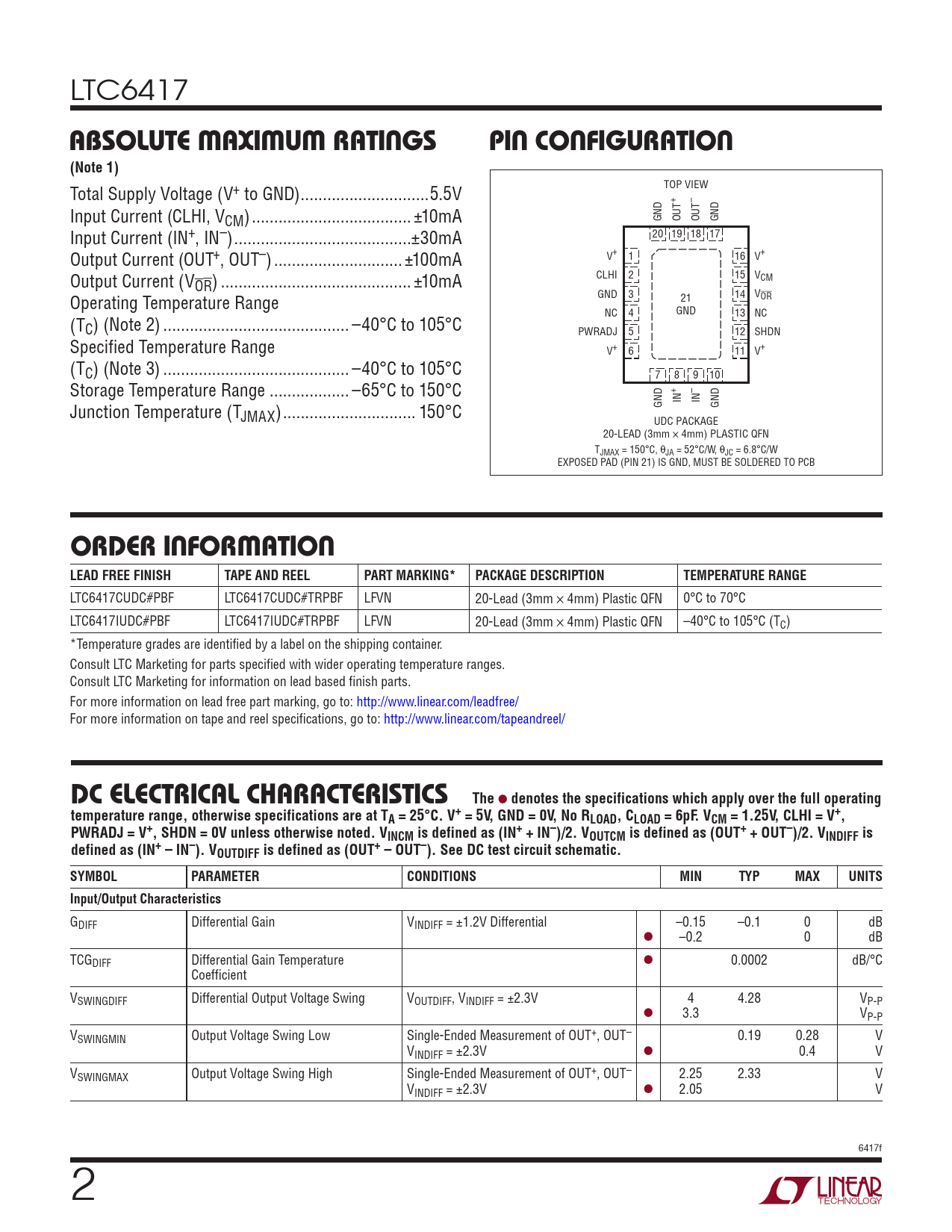

LTC6417
absoluTe MaxiMuM raTings pin conFiguraTion (Note 1)
Total Supply Voltage (V+ to GND) ...5.5V TOP VIEW + – Input Current (CLHI, VCM) ..±10mA GND OUT OUT GND Input Current (IN+, IN–) ..±30mA 20 19 18 17 Output Current (OUT+, OUT–) ...±100mA V+ 1 16 V+ Output Current (V CLHI 2 15 V OR) ... ±10mA CM Operating Temperature Range GND 3 21 14 VOR NC 4 GND 13 NC (TC) (Note 2) .. –40°C to 105°C PWRADJ 5 12 SHDN Specified Temperature Range V+ 6 11 V+ (TC) (Note 3) .. –40°C to 105°C 7 8 9 10 Storage Temperature Range .. –65°C to 150°C + – IN Junction Temperature (T GND IN GND JMAX) .. 150°C UDC PACKAGE 20-LEAD (3mm × 4mm) PLASTIC QFN TJMAX = 150°C, θJA = 52°C/W, θJC = 6.8°C/W EXPOSED PAD (PIN 21) IS GND, MUST BE SOLDERED TO PCB
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC6417CUDC#PBF LTC6417CUDC#TRPBF LFVN 20-Lead (3mm × 4mm) Plastic QFN 0°C to 70°C LTC6417IUDC#PBF LTC6417IUDC#TRPBF LFVN 20-Lead (3mm × 4mm) Plastic QFN –40°C to 105°C (TC) *Temperature grades are identified by a label on the shipping container. Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
Dc elecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. V+ = 5V, GND = 0V, No RLOAD, CLOAD = 6pF. VCM = 1.25V, CLHI = V+, PWRADJ = V+, SHDN = 0V unless otherwise noted. VINCM is defined as (IN+ + IN–)/2. VOUTCM is defined as (OUT+ + OUT–)/2. VINDIFF is defined as (IN+ – IN–). VOUTDIFF is defined as (OUT+ – OUT–). See DC test circuit schematic. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Input/Output Characteristics
GDIFF Differential Gain VINDIFF = ±1.2V Differential –0.15 –0.1 0 dB l –0.2 0 dB TCGDIFF Differential Gain Temperature l 0.0002 dB/°C Coefficient VSWINGDIFF Differential Output Voltage Swing VOUTDIFF, VINDIFF = ±2.3V 4 4.28 VP-P l 3.3 VP-P VSWINGMIN Output Voltage Swing Low Single-Ended Measurement of OUT+, OUT– 0.19 0.28 V VINDIFF = ±2.3V l 0.4 V VSWINGMAX Output Voltage Swing High Single-Ended Measurement of OUT+, OUT– 2.25 2.33 V VINDIFF = ±2.3V l 2.05 V 6417f 2 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information DC Electrical Characteristics AC Electrical Characteristics Typical Performance Characteristics Pin Functions DC Test Circuit Schematic Block Diagram Applications Information Package Description Typical Application Related Parts
