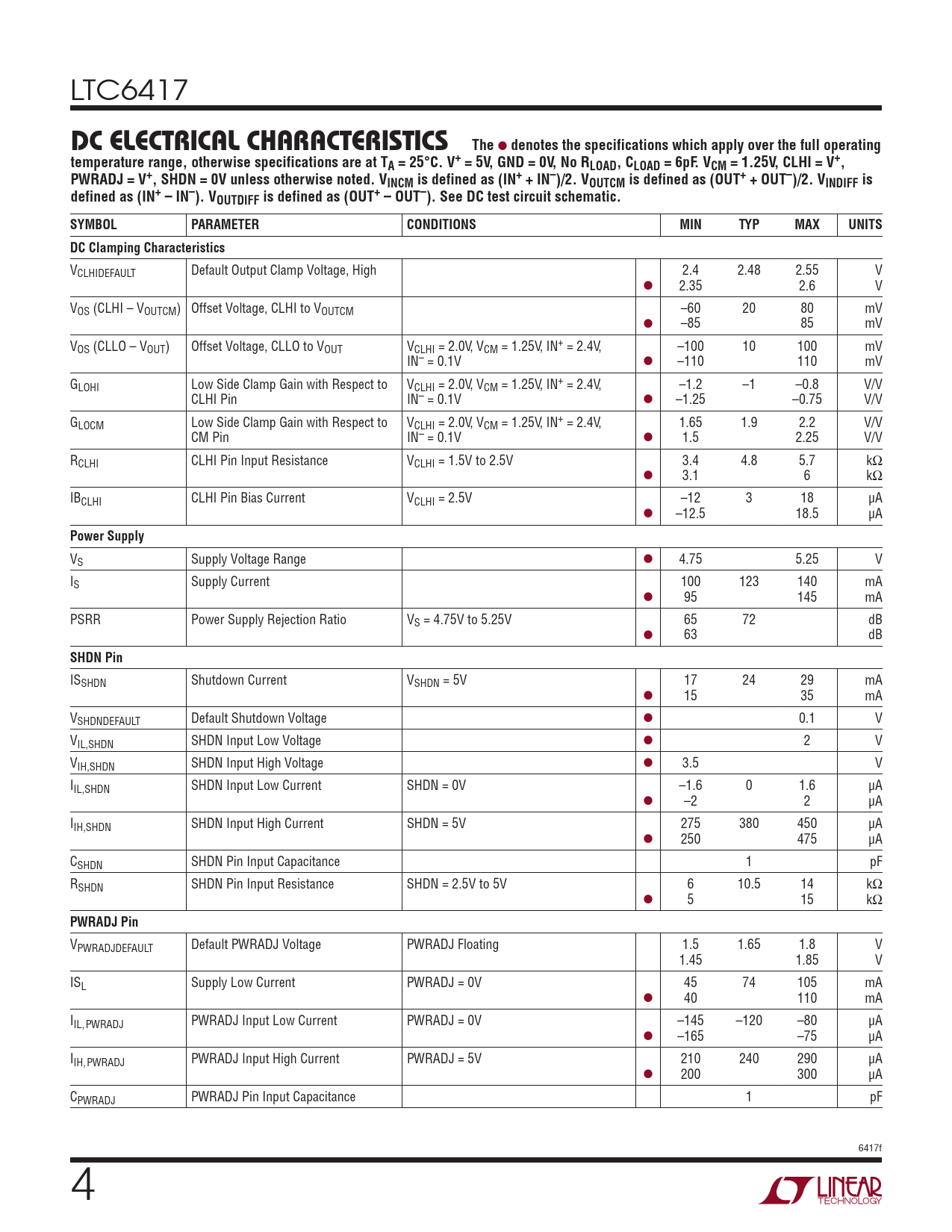

Dc elecTrical characTerisTics. The. denotes the specifications which apply over the full operating
该数据表的模型线
文件文字版本
LTC6417
Dc elecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. V+ = 5V, GND = 0V, No RLOAD, CLOAD = 6pF. VCM = 1.25V, CLHI = V+, PWRADJ = V+, SHDN = 0V unless otherwise noted. VINCM is defined as (IN+ + IN–)/2. VOUTCM is defined as (OUT+ + OUT–)/2. VINDIFF is defined as (IN+ – IN–). VOUTDIFF is defined as (OUT+ – OUT–). See DC test circuit schematic. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS DC Clamping Characteristics
VCLHIDEFAULT Default Output Clamp Voltage, High 2.4 2.48 2.55 V l 2.35 2.6 V VOS (CLHI – VOUTCM) Offset Voltage, CLHI to VOUTCM –60 20 80 mV l –85 85 mV VOS (CLLO – VOUT) Offset Voltage, CLLO to VOUT VCLHI = 2.0V, VCM = 1.25V, IN+ = 2.4V, –100 10 100 mV IN– = 0.1V l –110 110 mV GLOHI Low Side Clamp Gain with Respect to VCLHI = 2.0V, VCM = 1.25V, IN+ = 2.4V, –1.2 –1 –0.8 V/V CLHI Pin IN– = 0.1V l –1.25 –0.75 V/V GLOCM Low Side Clamp Gain with Respect to VCLHI = 2.0V, VCM = 1.25V, IN+ = 2.4V, 1.65 1.9 2.2 V/V CM Pin IN– = 0.1V l 1.5 2.25 V/V RCLHI CLHI Pin Input Resistance VCLHI = 1.5V to 2.5V 3.4 4.8 5.7 kΩ l 3.1 6 kΩ IBCLHI CLHI Pin Bias Current VCLHI = 2.5V –12 3 18 µA l –12.5 18.5 µA
Power Supply
VS Supply Voltage Range l 4.75 5.25 V IS Supply Current 100 123 140 mA l 95 145 mA PSRR Power Supply Rejection Ratio VS = 4.75V to 5.25V 65 72 dB l 63 dB
SHDN Pin
ISSHDN Shutdown Current VSHDN = 5V 17 24 29 mA l 15 35 mA VSHDNDEFAULT Default Shutdown Voltage l 0.1 V VIL,SHDN SHDN Input Low Voltage l 2 V VIH,SHDN SHDN Input High Voltage l 3.5 V IIL,SHDN SHDN Input Low Current SHDN = 0V –1.6 0 1.6 µA l –2 2 µA IIH,SHDN SHDN Input High Current SHDN = 5V 275 380 450 µA l 250 475 µA CSHDN SHDN Pin Input Capacitance 1 pF RSHDN SHDN Pin Input Resistance SHDN = 2.5V to 5V 6 10.5 14 kΩ l 5 15 kΩ
PWRADJ Pin
VPWRADJDEFAULT Default PWRADJ Voltage PWRADJ Floating 1.5 1.65 1.8 V 1.45 1.85 V ISL Supply Low Current PWRADJ = 0V 45 74 105 mA l 40 110 mA IIL,PWRADJ PWRADJ Input Low Current PWRADJ = 0V –145 –120 –80 µA l –165 –75 µA IIH,PWRADJ PWRADJ Input High Current PWRADJ = 5V 210 240 290 µA l 200 300 µA CPWRADJ PWRADJ Pin Input Capacitance 1 pF 6417f 4 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information DC Electrical Characteristics AC Electrical Characteristics Typical Performance Characteristics Pin Functions DC Test Circuit Schematic Block Diagram Applications Information Package Description Typical Application Related Parts
