LTC6412

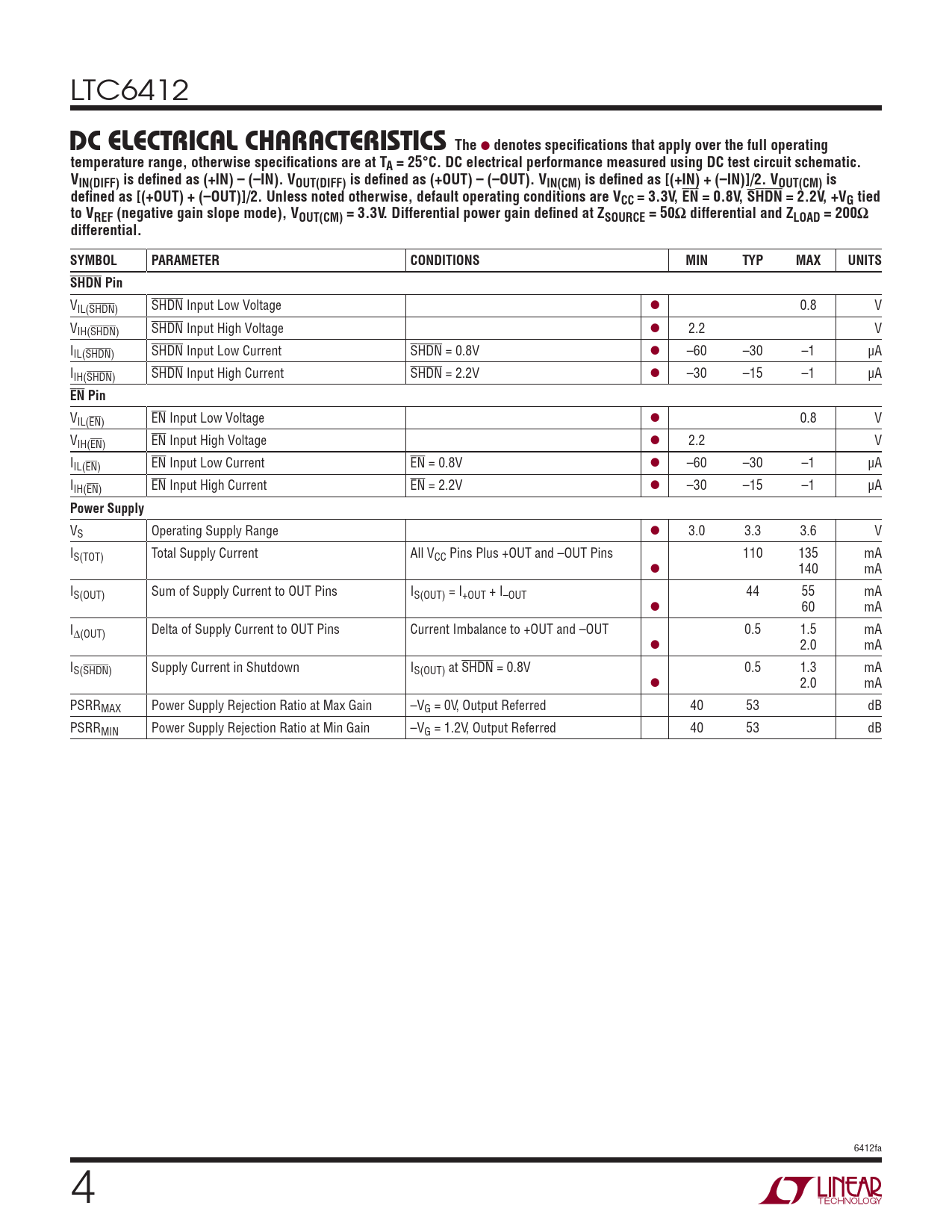

DC ELECTRICAL CHARACTERISTICS The
l
denotes specifi cations that apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. DC electrical performance measured using DC test circuit schematic. VIN(DIFF) is defi ned as (+IN) – (–IN). VOUT(DIFF) is defi ned as (+OUT) – (–OUT). VIN(CM) is defi ned as [(+IN) + (–IN)]/2. VOUT(CM) is defi ned as [(+OUT) + (–OUT)]/2. Unless noted otherwise, default operating conditions are VCC = 3.3V, EN = 0.8V, SHDN = 2.2V, +VG tied to VREF (negative gain slope mode), VOUT(CM) = 3.3V. Differential power gain defi ned at ZSOURCE = 50Ω differential and ZLOAD = 200Ω differential. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS SHDN Pin
VIL(SHDN) SHDN Input Low Voltage l 0.8 V VIH(SHDN) SHDN Input High Voltage l 2.2 V IIL(SHDN) SHDN Input Low Current SHDN = 0.8V l –60 –30 –1 μA IIH(SHDN) SHDN Input High Current SHDN = 2.2V l –30 –15 –1 μA
EN Pin
VIL(EN) EN Input Low Voltage l 0.8 V VIH(EN) EN Input High Voltage l 2.2 V IIL(EN) EN Input Low Current EN = 0.8V l –60 –30 –1 μA IIH(EN) EN Input High Current EN = 2.2V l –30 –15 –1 μA
Power Supply
VS Operating Supply Range l 3.0 3.3 3.6 V IS(TOT) Total Supply Current All VCC Pins Plus +OUT and –OUT Pins 110 135 mA l 140 mA IS(OUT) Sum of Supply Current to OUT Pins IS(OUT) = I+OUT + I–OUT 44 55 mA l 60 mA IΔ(OUT) Delta of Supply Current to OUT Pins Current Imbalance to +OUT and –OUT 0.5 1.5 mA l 2.0 mA IS(SHDN) Supply Current in Shutdown IS(OUT) at SHDN = 0.8V 0.5 1.3 mA l 2.0 mA PSRRMAX Power Supply Rejection Ratio at Max Gain –VG = 0V, Output Referred 40 53 dB PSRRMIN Power Supply Rejection Ratio at Min Gain –VG = 1.2V, Output Referred 40 53 dB 6412fa 4
