AC ELECTRICAL CHARACTERISTICS. Specifi cations are at TA = 25°C. V+ = 3V, V– = 0V, VOCM = 1.25V,
该数据表的模型线
文件文字版本
LTC6401-8

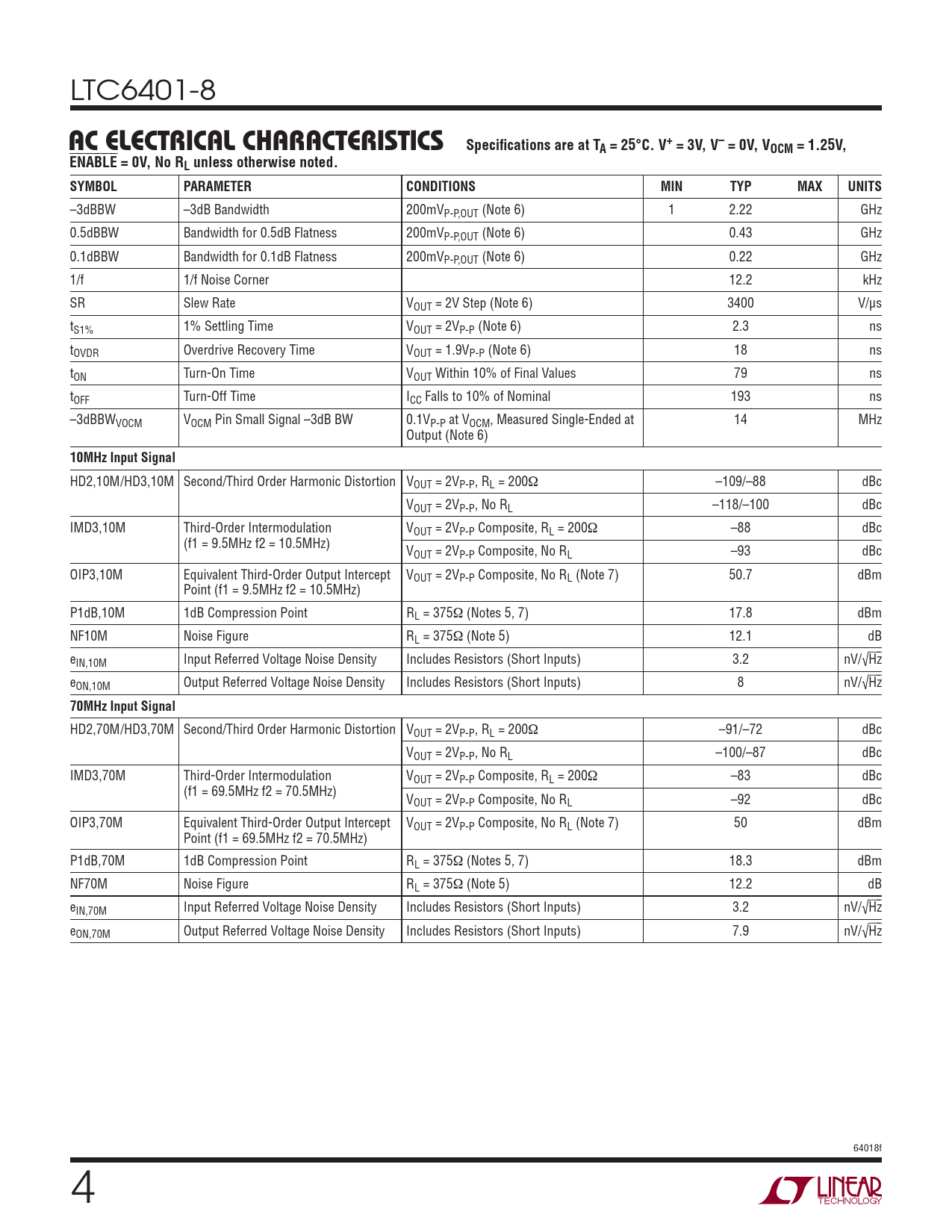

AC ELECTRICAL CHARACTERISTICS Specifi cations are at TA = 25°C. V+ = 3V, V– = 0V, VOCM = 1.25V,
⎯
E
⎯
N
⎯
A
⎯
B
⎯
L
⎯
E = 0V, No RL unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
–3dBBW –3dB Bandwidth 200mVP-P,OUT (Note 6) 1 2.22 GHz 0.5dBBW Bandwidth for 0.5dB Flatness 200mVP-P,OUT (Note 6) 0.43 GHz 0.1dBBW Bandwidth for 0.1dB Flatness 200mVP-P,OUT (Note 6) 0.22 GHz 1/f 1/f Noise Corner 12.2 kHz SR Slew Rate VOUT = 2V Step (Note 6) 3400 V/μs tS1% 1% Settling Time VOUT = 2VP-P (Note 6) 2.3 ns tOVDR Overdrive Recovery Time VOUT = 1.9VP-P (Note 6) 18 ns tON Turn-On Time VOUT Within 10% of Final Values 79 ns tOFF Turn-Off Time ICC Falls to 10% of Nominal 193 ns –3dBBWVOCM VOCM Pin Small Signal –3dB BW 0.1VP-P at VOCM, Measured Single-Ended at 14 MHz Output (Note 6)
10MHz Input Signal
HD2,10M/HD3,10M Second/Third Order Harmonic Distortion VOUT = 2VP-P, RL = 200Ω –109/–88 dBc VOUT = 2VP-P, No RL –118/–100 dBc IMD3,10M Third-Order Intermodulation VOUT = 2VP-P Composite, RL = 200Ω –88 dBc (f1 = 9.5MHz f2 = 10.5MHz) VOUT = 2VP-P Composite, No RL –93 dBc OIP3,10M Equivalent Third-Order Output Intercept VOUT = 2VP-P Composite, No RL (Note 7) 50.7 dBm Point (f1 = 9.5MHz f2 = 10.5MHz) P1dB,10M 1dB Compression Point RL = 375Ω (Notes 5, 7) 17.8 dBm NF10M Noise Figure RL = 375Ω (Note 5) 12.1 dB eIN,10M Input Referred Voltage Noise Density Includes Resistors (Short Inputs) 3.2 nV/√⎯H⎯z eON,10M Output Referred Voltage Noise Density Includes Resistors (Short Inputs) 8 nV/√⎯H⎯z
70MHz Input Signal
HD2,70M/HD3,70M Second/Third Order Harmonic Distortion VOUT = 2VP-P, RL = 200Ω –91/–72 dBc VOUT = 2VP-P, No RL –100/–87 dBc IMD3,70M Third-Order Intermodulation VOUT = 2VP-P Composite, RL = 200Ω –83 dBc (f1 = 69.5MHz f2 = 70.5MHz) VOUT = 2VP-P Composite, No RL –92 dBc OIP3,70M Equivalent Third-Order Output Intercept VOUT = 2VP-P Composite, No RL (Note 7) 50 dBm Point (f1 = 69.5MHz f2 = 70.5MHz) P1dB,70M 1dB Compression Point RL = 375Ω (Notes 5, 7) 18.3 dBm NF70M Noise Figure RL = 375Ω (Note 5) 12.2 dB eIN,70M Input Referred Voltage Noise Density Includes Resistors (Short Inputs) 3.2 nV/√⎯H⎯z eON,70M Output Referred Voltage Noise Density Includes Resistors (Short Inputs) 7.9 nV/√⎯H⎯z 64018f 4
AC ELECTRICAL CHARACTERISTICS Specifi cations are at TA = 25°C. V+ = 3V, V– = 0V, VOCM = 1.25V,
⎯
E
⎯
N
⎯
A
⎯
B
⎯
L
⎯
E = 0V, No RL unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
–3dBBW –3dB Bandwidth 200mVP-P,OUT (Note 6) 1 2.22 GHz 0.5dBBW Bandwidth for 0.5dB Flatness 200mVP-P,OUT (Note 6) 0.43 GHz 0.1dBBW Bandwidth for 0.1dB Flatness 200mVP-P,OUT (Note 6) 0.22 GHz 1/f 1/f Noise Corner 12.2 kHz SR Slew Rate VOUT = 2V Step (Note 6) 3400 V/μs tS1% 1% Settling Time VOUT = 2VP-P (Note 6) 2.3 ns tOVDR Overdrive Recovery Time VOUT = 1.9VP-P (Note 6) 18 ns tON Turn-On Time VOUT Within 10% of Final Values 79 ns tOFF Turn-Off Time ICC Falls to 10% of Nominal 193 ns –3dBBWVOCM VOCM Pin Small Signal –3dB BW 0.1VP-P at VOCM, Measured Single-Ended at 14 MHz Output (Note 6)
10MHz Input Signal
HD2,10M/HD3,10M Second/Third Order Harmonic Distortion VOUT = 2VP-P, RL = 200Ω –109/–88 dBc VOUT = 2VP-P, No RL –118/–100 dBc IMD3,10M Third-Order Intermodulation VOUT = 2VP-P Composite, RL = 200Ω –88 dBc (f1 = 9.5MHz f2 = 10.5MHz) VOUT = 2VP-P Composite, No RL –93 dBc OIP3,10M Equivalent Third-Order Output Intercept VOUT = 2VP-P Composite, No RL (Note 7) 50.7 dBm Point (f1 = 9.5MHz f2 = 10.5MHz) P1dB,10M 1dB Compression Point RL = 375Ω (Notes 5, 7) 17.8 dBm NF10M Noise Figure RL = 375Ω (Note 5) 12.1 dB eIN,10M Input Referred Voltage Noise Density Includes Resistors (Short Inputs) 3.2 nV/√⎯H⎯z eON,10M Output Referred Voltage Noise Density Includes Resistors (Short Inputs) 8 nV/√⎯H⎯z
70MHz Input Signal
HD2,70M/HD3,70M Second/Third Order Harmonic Distortion VOUT = 2VP-P, RL = 200Ω –91/–72 dBc VOUT = 2VP-P, No RL –100/–87 dBc IMD3,70M Third-Order Intermodulation VOUT = 2VP-P Composite, RL = 200Ω –83 dBc (f1 = 69.5MHz f2 = 70.5MHz) VOUT = 2VP-P Composite, No RL –92 dBc OIP3,70M Equivalent Third-Order Output Intercept VOUT = 2VP-P Composite, No RL (Note 7) 50 dBm Point (f1 = 69.5MHz f2 = 70.5MHz) P1dB,70M 1dB Compression Point RL = 375Ω (Notes 5, 7) 18.3 dBm NF70M Noise Figure RL = 375Ω (Note 5) 12.2 dB eIN,70M Input Referred Voltage Noise Density Includes Resistors (Short Inputs) 3.2 nV/√⎯H⎯z eON,70M Output Referred Voltage Noise Density Includes Resistors (Short Inputs) 7.9 nV/√⎯H⎯z 64018f 4
