| 制造商 | Analog Devices |
| 描述 | Very Low Noise, Differential Amplifier and 15MHz Lowpass Filter |
| 页数 / 页 | 12 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION … |
| 文件格式/大小 | PDF / 162 Kb |
| 文件语言 | 英语 |

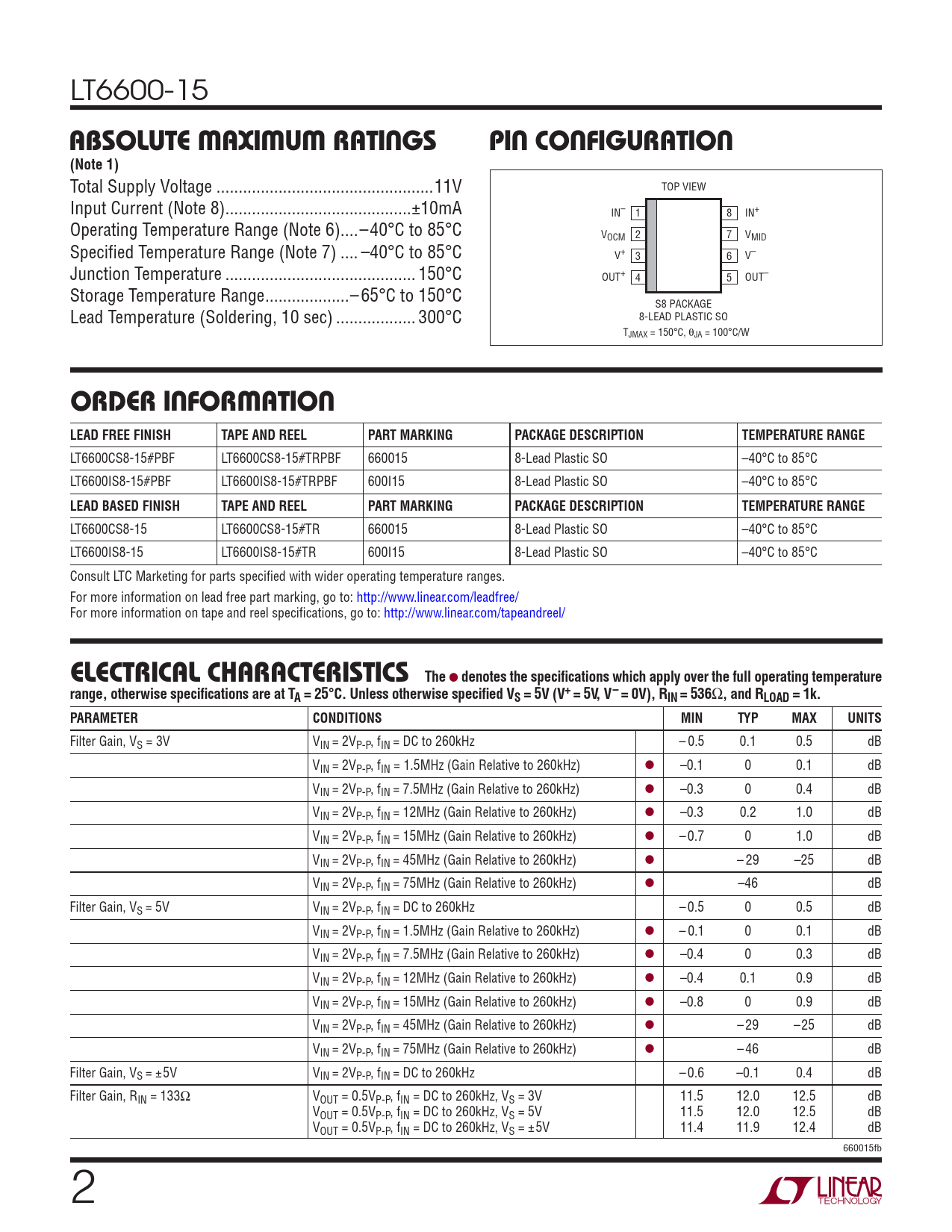

ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING
该数据表的模型线
文件文字版本
LT6600-15
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Total Supply Voltage ...11V TOP VIEW Input Current (Note 8) ..±10mA IN– 1 8 IN+ Operating Temperature Range (Note 6).. –40°C to 85°C V 2 7 V OCM MID Specifi ed Temperature Range (Note 7) .. –40°C to 85°C V+ 3 6 V– Junction Temperature ... 150°C OUT+ 4 5 OUT– Storage Temperature Range ...– 65°C to 150°C S8 PACKAGE Lead Temperature (Soldering, 10 sec) .. 300°C 8-LEAD PLASTIC SO TJMAX = 150°C, θJA = 100°C/W
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT6600CS8-15#PBF LT6600CS8-15#TRPBF 660015 8-Lead Plastic SO –40°C to 85°C LT6600IS8-15#PBF LT6600IS8-15#TRPBF 600I15 8-Lead Plastic SO –40°C to 85°C
LEAD BASED FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT6600CS8-15 LT6600CS8-15#TR 660015 8-Lead Plastic SO –40°C to 85°C LT6600IS8-15 LT6600IS8-15#TR 600I15 8-Lead Plastic SO –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. Unless otherwise specifi ed VS = 5V (V+ = 5V, V– = 0V), RIN = 536
Ω
, and RLOAD = 1k. PARAMETER CONDITIONS MIN TYP MAX UNITS
Filter Gain, VS = 3V VIN = 2VP-P, fIN = DC to 260kHz – 0.5 0.1 0.5 dB VIN = 2VP-P, fIN = 1.5MHz (Gain Relative to 260kHz) l –0.1 0 0.1 dB VIN = 2VP-P, fIN = 7.5MHz (Gain Relative to 260kHz) l –0.3 0 0.4 dB VIN = 2VP-P, fIN = 12MHz (Gain Relative to 260kHz) l –0.3 0.2 1.0 dB VIN = 2VP-P, fIN = 15MHz (Gain Relative to 260kHz) l – 0.7 0 1.0 dB VIN = 2VP-P, fIN = 45MHz (Gain Relative to 260kHz) l – 29 –25 dB VIN = 2VP-P, fIN = 75MHz (Gain Relative to 260kHz) l –46 dB Filter Gain, VS = 5V VIN = 2VP-P, fIN = DC to 260kHz – 0.5 0 0.5 dB VIN = 2VP-P, fIN = 1.5MHz (Gain Relative to 260kHz) l – 0.1 0 0.1 dB VIN = 2VP-P, fIN = 7.5MHz (Gain Relative to 260kHz) l –0.4 0 0.3 dB VIN = 2VP-P, fIN = 12MHz (Gain Relative to 260kHz) l –0.4 0.1 0.9 dB VIN = 2VP-P, fIN = 15MHz (Gain Relative to 260kHz) l –0.8 0 0.9 dB VIN = 2VP-P, fIN = 45MHz (Gain Relative to 260kHz) l – 29 –25 dB VIN = 2VP-P, fIN = 75MHz (Gain Relative to 260kHz) l – 46 dB Filter Gain, VS = ±5V VIN = 2VP-P, fIN = DC to 260kHz – 0.6 –0.1 0.4 dB Filter Gain, RIN = 133Ω VOUT = 0.5VP-P, fIN = DC to 260kHz, VS = 3V 11.5 12.0 12.5 dB VOUT = 0.5VP-P, fIN = DC to 260kHz, VS = 5V 11.5 12.0 12.5 dB VOUT = 0.5VP-P, fIN = DC to 260kHz, VS = ±5V 11.4 11.9 12.4 dB 660015fb 2
