数据表Datasheet AD8351 (Analog Devices)
Datasheet AD8351 (Analog Devices)
制造商 | Analog Devices |
描述 | Low Distortion Differential RF/IF Amplifier |
页数 / 页 | 19 / 1 — Low Distortion. Differential RF/IF Amplifier. Data Sheet. AD8351. … |
修订版 | D |
文件格式/大小 | PDF / 484 Kb |
文件语言 | 英语 |
Low Distortion. Differential RF/IF Amplifier. Data Sheet. AD8351. FEATURES. FUNCTIONAL BLOCK DIAGRAM
该数据表的模型线
文件文字版本

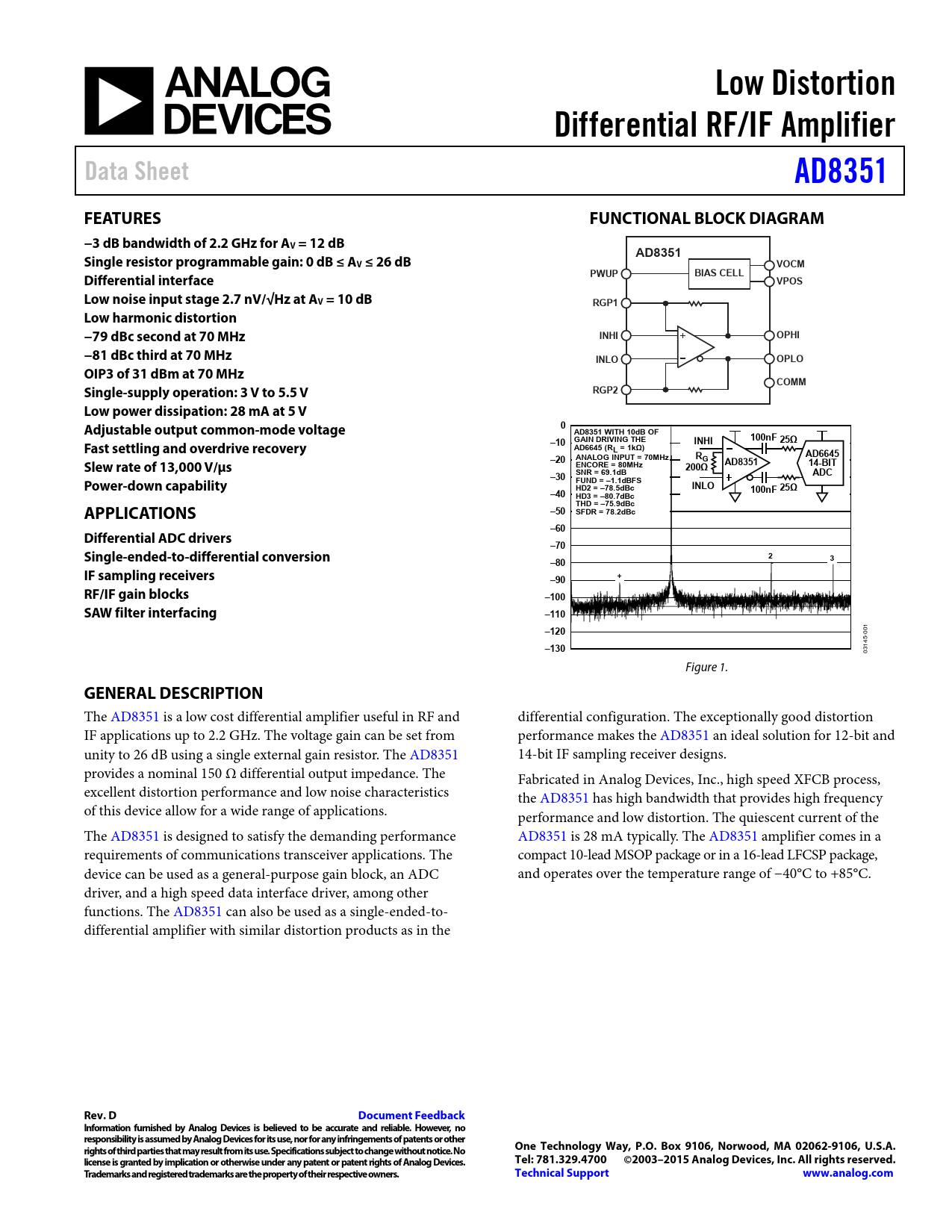

Low Distortion Differential RF/IF Amplifier Data Sheet AD8351 FEATURES FUNCTIONAL BLOCK DIAGRAM −3 dB bandwidth of 2.2 GHz for AV = 12 dB AD8351 Single resistor programmable gain: 0 dB ≤ AV ≤ 26 dB VOCM PWUP BIAS CELL Differential interface VPOS Low noise input stage 2.7 nV/√Hz at AV = 10 dB RGP1 Low harmonic distortion −79 dBc second at 70 MHz INHI OPHI −81 dBc third at 70 MHz INLO OPLO OIP3 of 31 dBm at 70 MHz COMM Single-supply operation: 3 V to 5.5 V RGP2 Low power dissipation: 28 mA at 5 V Adjustable output common-mode voltage 0 AD8351 WITH 10dB OF 100nF –10 GAIN DRIVING THE INHI 25Ω Fast settling and overdrive recovery AD6645 (RL = 1kΩ) AD6645 –20 ANALOG INPUT = 70MHz RG AD8351 Slew rate of 13,000 V/μs ENCORE = 80MHz 200Ω 14-BIT –30 SNR = 69.1dB ADC FUND = –1.1dBFS Power-down capability HD2 = –78.5dBc INLO 25Ω –40 100nF HD3 = –80.7dBc THD = –75.9dBc APPLICATIONS –50 SFDR = 78.2dBc –60 Differential ADC drivers –70 Single-ended-to-differential conversion 2 –80 3 IF sampling receivers –90 + RF/IF gain blocks –100 SAW filter interfacing –110
1
–120
00 5-
–130
14 03 Figure 1.
GENERAL DESCRIPTION
The AD8351 is a low cost differential amplifier useful in RF and differential configuration. The exceptionally good distortion IF applications up to 2.2 GHz. The voltage gain can be set from performance makes the AD8351 an ideal solution for 12-bit and unity to 26 dB using a single external gain resistor. The AD8351 14-bit IF sampling receiver designs. provides a nominal 150 Ω differential output impedance. The Fabricated in Analog Devices, Inc., high speed XFCB process, excellent distortion performance and low noise characteristics the AD8351 has high bandwidth that provides high frequency of this device allow for a wide range of applications. performance and low distortion. The quiescent current of the The AD8351 is designed to satisfy the demanding performance AD8351 is 28 mA typically. The AD8351 amplifier comes in a requirements of communications transceiver applications. The compact 10-lead MSOP package or in a 16-lead LFCSP package, device can be used as a general-purpose gain block, an ADC and operates over the temperature range of −40°C to +85°C. driver, and a high speed data interface driver, among other functions. The AD8351 can also be used as a single-ended-to- differential amplifier with similar distortion products as in the
Rev. D Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2003–2015 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION BASIC CONCEPTS GAIN ADJUSTMENT COMMON-MODE ADJUSTMENT INPUT AND OUTPUT MATCHING SINGLE-ENDED-TO-DIFFERENTIAL OPERATION ADC DRIVING ANALOG MULTIPLEXING I/O CAPACITIVE LOADING TRANSMISSION LINE EFFECTS CHARACTERIZATION SETUP EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
