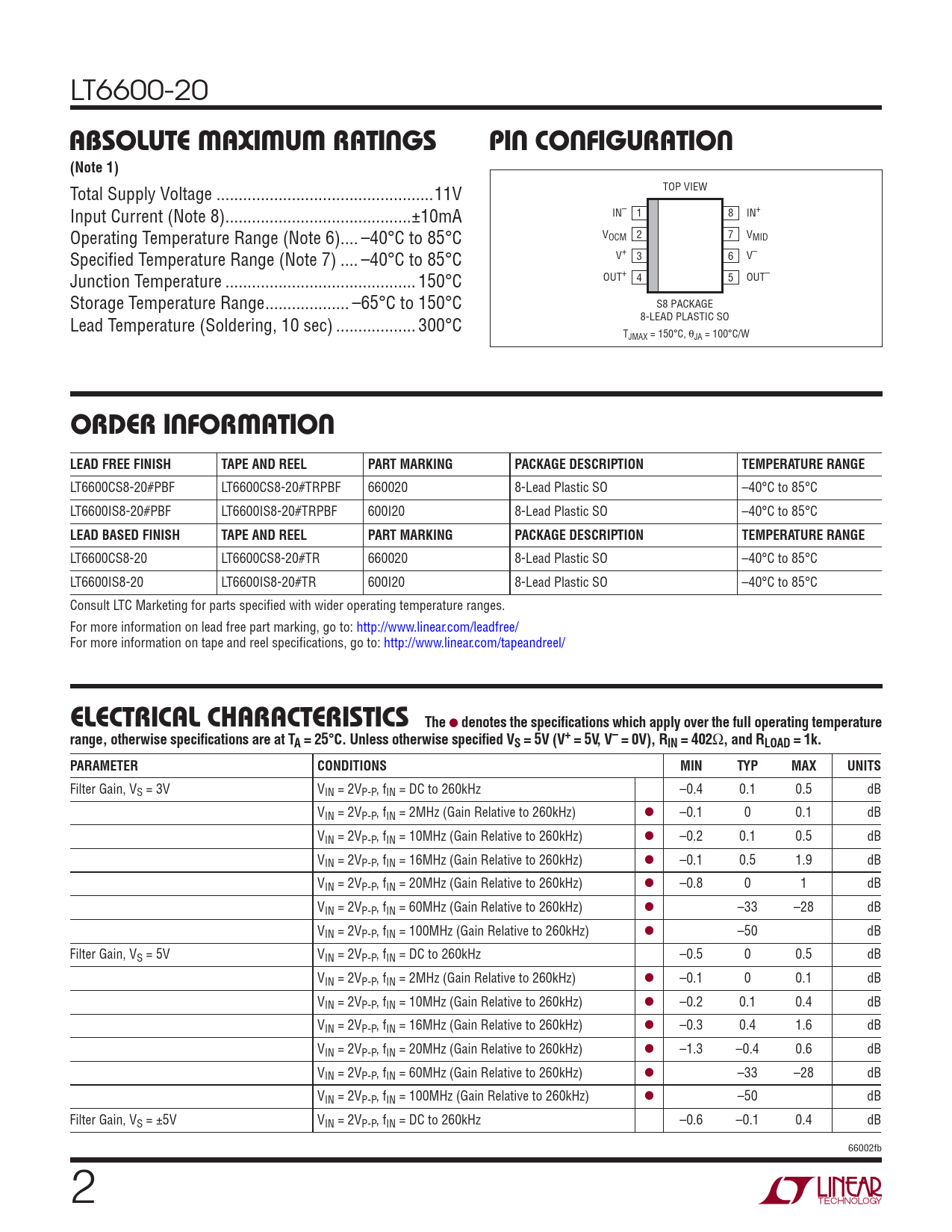

LT6600-20
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Total Supply Voltage ...11V TOP VIEW Input Current (Note 8) ..±10mA IN– 1 8 IN+ Operating Temperature Range (Note 6).. –40°C to 85°C V 2 7 V OCM MID Specifi ed Temperature Range (Note 7) .. –40°C to 85°C V+ 3 6 V– Junction Temperature ... 150°C OUT+ 4 5 OUT– Storage Temperature Range ... –65°C to 150°C S8 PACKAGE 8-LEAD PLASTIC SO Lead Temperature (Soldering, 10 sec) .. 300°C TJMAX = 150°C, θJA = 100°C/W
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT6600CS8-20#PBF LT6600CS8-20#TRPBF 660020 8-Lead Plastic SO –40°C to 85°C LT6600IS8-20#PBF LT6600IS8-20#TRPBF 600I20 8-Lead Plastic SO –40°C to 85°C
LEAD BASED FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT6600CS8-20 LT6600CS8-20#TR 660020 8-Lead Plastic SO –40°C to 85°C LT6600IS8-20 LT6600IS8-20#TR 600I20 8-Lead Plastic SO –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. Unless otherwise specifi ed VS = 5V (V+ = 5V, V– = 0V), RIN = 402
Ω
, and RLOAD = 1k. PARAMETER CONDITIONS MIN TYP MAX UNITS
Filter Gain, VS = 3V VIN = 2VP-P, fIN = DC to 260kHz –0.4 0.1 0.5 dB VIN = 2VP-P, fIN = 2MHz (Gain Relative to 260kHz) l –0.1 0 0.1 dB VIN = 2VP-P, fIN = 10MHz (Gain Relative to 260kHz) l –0.2 0.1 0.5 dB VIN = 2VP-P, fIN = 16MHz (Gain Relative to 260kHz) l –0.1 0.5 1.9 dB VIN = 2VP-P, fIN = 20MHz (Gain Relative to 260kHz) l –0.8 0 1 dB VIN = 2VP-P, fIN = 60MHz (Gain Relative to 260kHz) l –33 –28 dB VIN = 2VP-P, fIN = 100MHz (Gain Relative to 260kHz) l –50 dB Filter Gain, VS = 5V VIN = 2VP-P, fIN = DC to 260kHz –0.5 0 0.5 dB VIN = 2VP-P, fIN = 2MHz (Gain Relative to 260kHz) l –0.1 0 0.1 dB VIN = 2VP-P, fIN = 10MHz (Gain Relative to 260kHz) l –0.2 0.1 0.4 dB VIN = 2VP-P, fIN = 16MHz (Gain Relative to 260kHz) l –0.3 0.4 1.6 dB VIN = 2VP-P, fIN = 20MHz (Gain Relative to 260kHz) l –1.3 –0.4 0.6 dB VIN = 2VP-P, fIN = 60MHz (Gain Relative to 260kHz) l –33 –28 dB VIN = 2VP-P, fIN = 100MHz (Gain Relative to 260kHz) l –50 dB Filter Gain, VS = ±5V VIN = 2VP-P, fIN = DC to 260kHz –0.6 –0.1 0.4 dB 66002fb 2
