Datasheet LTC6360 (Analog Devices) - 9
| 制造商 | Analog Devices |
| 描述 | Very Low Noise Single-Ended SAR ADC Driver with True Zero Output |
| 页数 / 页 | 24 / 9 — pin FuncTions –IN (Pin 1):. CPI (Pin 6):. OUT (Pin 2):. SHDN (Pin 7):. CC … |
| 文件格式/大小 | PDF / 531 Kb |
| 文件语言 | 英语 |
pin FuncTions –IN (Pin 1):. CPI (Pin 6):. OUT (Pin 2):. SHDN (Pin 7):. CC (Pin 3):. VDD (Pin 4):. +IN (Pin 8):. CPO (Pin 5):
该数据表的模型线
文件文字版本

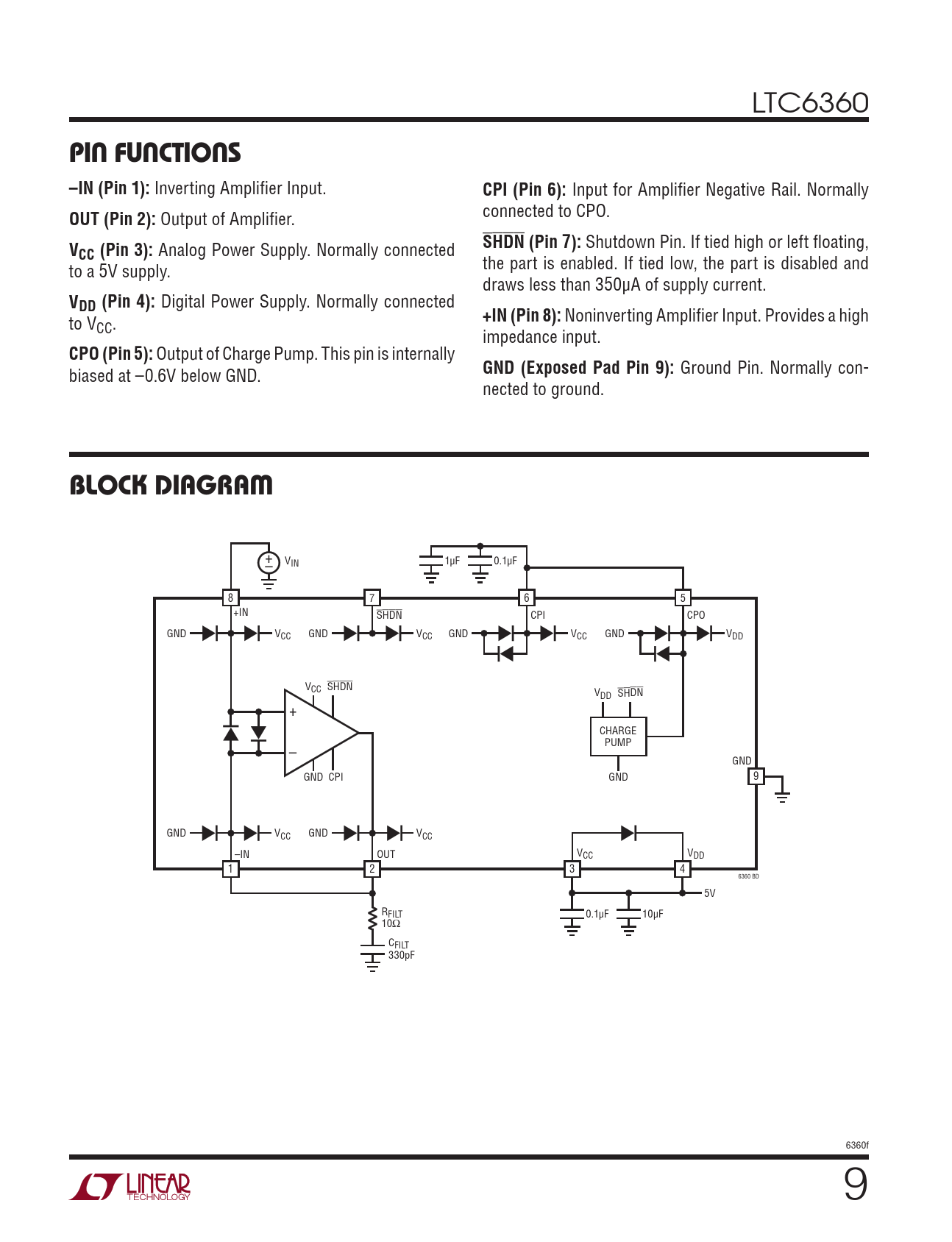

LTC6360
pin FuncTions –IN (Pin 1):
Inverting Amplifier Input.
CPI (Pin 6):
Input for Amplifier Negative Rail. Normal y
OUT (Pin 2):
Output of Amplifier. connected to CPO.
V SHDN (Pin 7):
Shutdown Pin. If tied high or left floating,
CC (Pin 3):
Analog Power Supply. Normal y connected to a 5V supply. the part is enabled. If tied low, the part is disabled and draws less than 350µA of supply current.
VDD (Pin 4):
Digital Power Supply. Normal y connected to V
+IN (Pin 8):
Noninverting Amplifier Input. Provides a high CC. impedance input.
CPO (Pin 5):
Output of Charge Pump. This pin is internal y biased at –0.6V below GND.
GND (Exposed Pad Pin 9):
Ground Pin. Normal y con- nected to ground.
block DiagraM
+– VIN 1µF 0.1µF 8 7 6 5 +IN SHDN CPI CPO GND VCC GND VCC GND VCC GND VDD VCC SHDN VDD SHDN + CHARGE PUMP – GND GND CPI GND 9 GND VCC GND VCC –IN OUT VCC VDD 1 2 3 4 6360 BD 5V RFILT 0.1µF 10µF 10Ω CFILT 330pF 6360f 9 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order InFormation Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuit Operation Applications Information Package Description Typical Application Related Parts
