LT6350

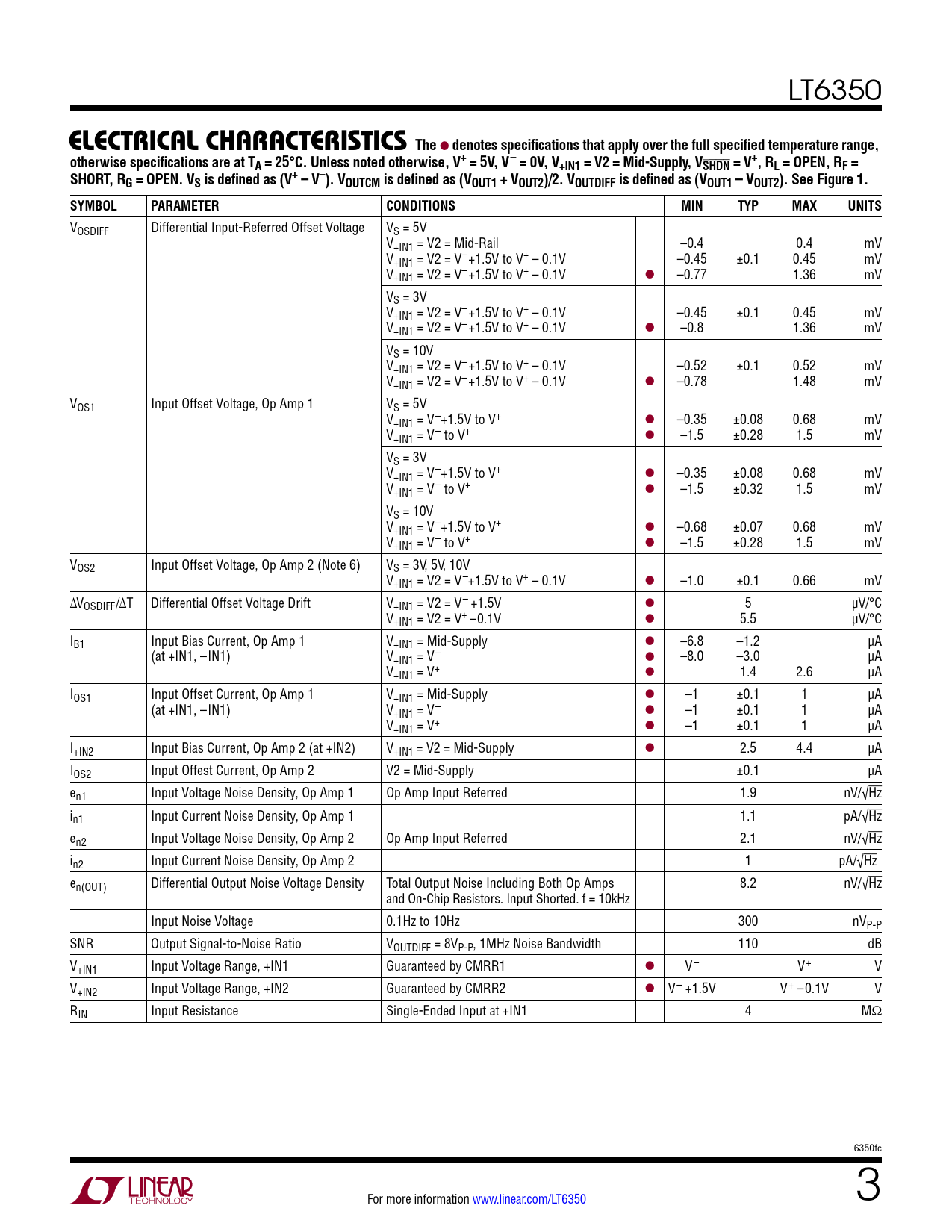

elecTrical characTerisTics The
l
denotes specifications that apply over the full specified temperature range, otherwise specifications are at TA = 25°C. Unless noted otherwise, V+ = 5V, V– = 0V, V+IN1 = V2 = Mid-Supply, VSHDN = V+, RL = OPEN, RF = SHORT, RG = OPEN. VS is defined as (V+ – V–). VOUTCM is defined as (VOUT1 + VOUT2)/2. VOUTDIFF is defined as (VOUT1 – VOUT2). See Figure 1. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOSDIFF Differential Input-Referred Offset Voltage VS = 5V V+IN1 = V2 = Mid-Rail –0.4 0.4 mV V+IN1 = V2 = V–+1.5V to V+ – 0.1V –0.45 ±0.1 0.45 mV V+IN1 = V2 = V–+1.5V to V+ – 0.1V l –0.77 1.36 mV VS = 3V V+IN1 = V2 = V–+1.5V to V+ – 0.1V –0.45 ±0.1 0.45 mV V+IN1 = V2 = V–+1.5V to V+ – 0.1V l –0.8 1.36 mV VS = 10V V+IN1 = V2 = V–+1.5V to V+ – 0.1V –0.52 ±0.1 0.52 mV V+IN1 = V2 = V–+1.5V to V+ – 0.1V l –0.78 1.48 mV VOS1 Input Offset Voltage, Op Amp 1 VS = 5V V+IN1 = V–+1.5V to V+ l –0.35 ±0.08 0.68 mV V+IN1 = V– to V+ l –1.5 ±0.28 1.5 mV VS = 3V V+IN1 = V–+1.5V to V+ l –0.35 ±0.08 0.68 mV V+IN1 = V– to V+ l –1.5 ±0.32 1.5 mV VS = 10V V+IN1 = V–+1.5V to V+ l –0.68 ±0.07 0.68 mV V+IN1 = V– to V+ l –1.5 ±0.28 1.5 mV VOS2 Input Offset Voltage, Op Amp 2 (Note 6) VS = 3V, 5V, 10V V+IN1 = V2 = V–+1.5V to V+ – 0.1V l –1.0 ±0.1 0.66 mV ∆VOSDIFF/∆T Differential Offset Voltage Drift V+IN1 = V2 = V– +1.5V l 5 µV/°C V+IN1 = V2 = V+ –0.1V l 5.5 µV/°C IB1 Input Bias Current, Op Amp 1 V+IN1 = Mid-Supply l –6.8 –1.2 µA (at +IN1, –IN1) V+IN1 = V– l –8.0 –3.0 µA V+IN1 = V+ l 1.4 2.6 µA IOS1 Input Offset Current, Op Amp 1 V+IN1 = Mid-Supply l –1 ±0.1 1 µA (at +IN1, –IN1) V+IN1 = V– l –1 ±0.1 1 µA V+IN1 = V+ l –1 ±0.1 1 µA I+IN2 Input Bias Current, Op Amp 2 (at +IN2) V+IN1 = V2 = Mid-Supply l 2.5 4.4 µA IOS2 Input Offest Current, Op Amp 2 V2 = Mid-Supply ±0.1 µA en1 Input Voltage Noise Density, Op Amp 1 Op Amp Input Referred 1.9 nV/√Hz in1 Input Current Noise Density, Op Amp 1 1.1 pA/√Hz en2 Input Voltage Noise Density, Op Amp 2 Op Amp Input Referred 2.1 nV/√Hz in2 Input Current Noise Density, Op Amp 2 1 pA/√Hz en(OUT) Differential Output Noise Voltage Density Total Output Noise Including Both Op Amps 8.2 nV/√Hz and On-Chip Resistors. Input Shorted. f = 10kHz Input Noise Voltage 0.1Hz to 10Hz 300 nVP-P SNR Output Signal-to-Noise Ratio VOUTDIFF = 8VP-P, 1MHz Noise Bandwidth 110 dB V+IN1 Input Voltage Range, +IN1 Guaranteed by CMRR1 l V– V+ V V+IN2 Input Voltage Range, +IN2 Guaranteed by CMRR2 l V– +1.5V V+ –0.1V V RIN Input Resistance Single-Ended Input at +IN1 4 MΩ 6350fc For more information www.linear.com/LT6350 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration order information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram DC Test Circuit Operation Applications Information Typical Application Package Description Revision History Typical Application Related Parts
