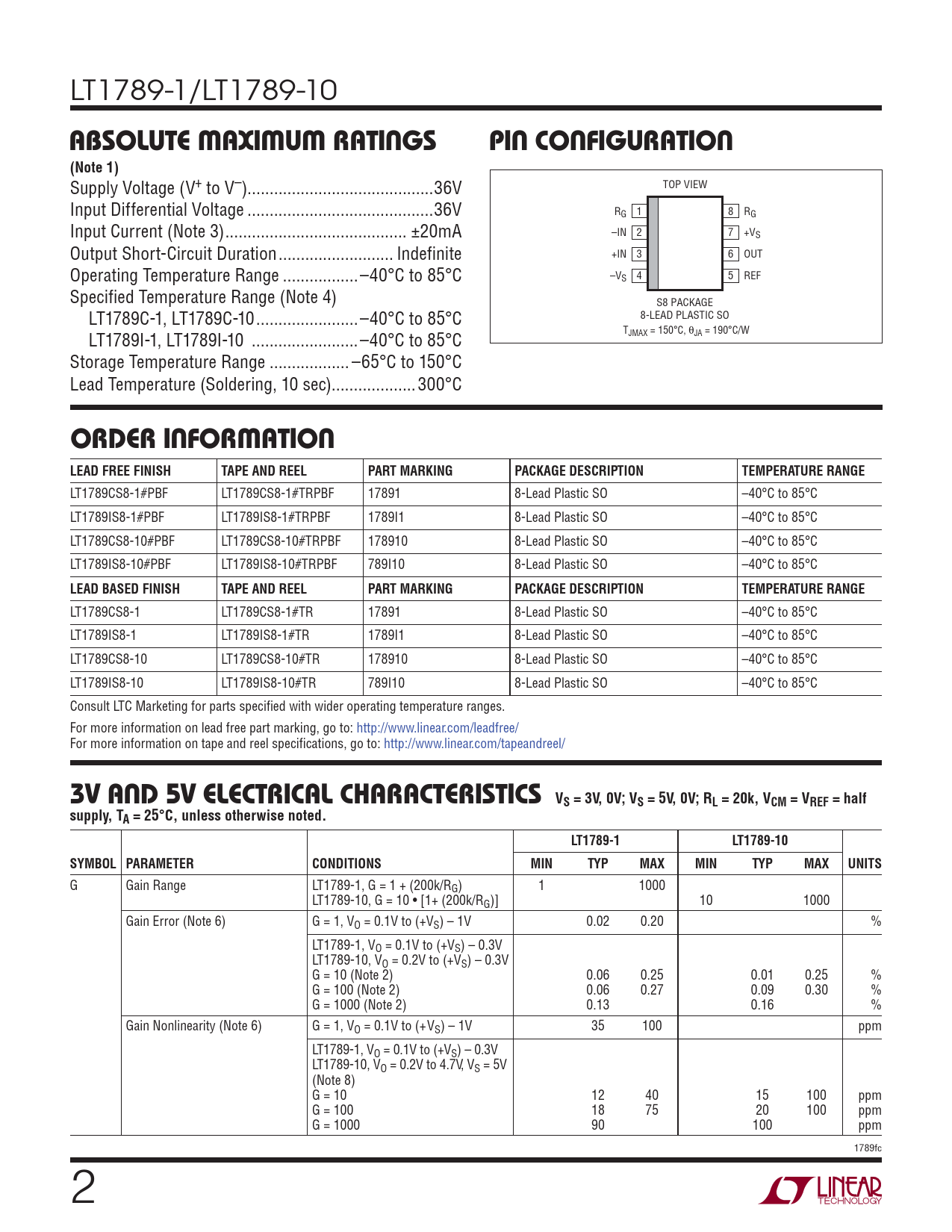

LT1789-1/LT1789-10
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Supply Voltage (V+ to V–)..36V TOP VIEW Input Differential Voltage ..36V R 1 8 R G G Input Current (Note 3) ... ±20mA –IN 2 7 +VS Output Short-Circuit Duration .. Indefinite +IN 3 6 OUT Operating Temperature Range ...–40°C to 85°C –VS 4 5 REF Specified Temperature Range (Note 4) S8 PACKAGE LT1789C-1, LT1789C-10 ...–40°C to 85°C 8-LEAD PLASTIC SO T LT1789I-1, LT1789I-10 ..–40°C to 85°C JMAX = 150°C, θJA = 190°C/W Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering, 10 sec)... 300°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1789CS8-1#PBF LT1789CS8-1#TRPBF 17891 8-Lead Plastic SO –40°C to 85°C LT1789IS8-1#PBF LT1789IS8-1#TRPBF 1789I1 8-Lead Plastic SO –40°C to 85°C LT1789CS8-10#PBF LT1789CS8-10#TRPBF 178910 8-Lead Plastic SO –40°C to 85°C LT1789IS8-10#PBF LT1789IS8-10#TRPBF 789I10 8-Lead Plastic SO –40°C to 85°C
LEAD BASED FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1789CS8-1 LT1789CS8-1#TR 17891 8-Lead Plastic SO –40°C to 85°C LT1789IS8-1 LT1789IS8-1#TR 1789I1 8-Lead Plastic SO –40°C to 85°C LT1789CS8-10 LT1789CS8-10#TR 178910 8-Lead Plastic SO –40°C to 85°C LT1789IS8-10 LT1789IS8-10#TR 789I10 8-Lead Plastic SO –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
3V AND 5V ELECTRICAL CHARACTERISTICS VS = 3V, 0V; VS = 5V, 0V; RL = 20k, VCM = VREF = half supply, TA = 25°C, unless otherwise noted. LT1789-1 LT1789-10 SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
G Gain Range LT1789-1, G = 1 + (200k/RG) 1 1000 LT1789-10, G = 10 • [1+ (200k/RG)] 10 1000 Gain Error (Note 6) G = 1, VO = 0.1V to (+VS) – 1V 0.02 0.20 % LT1789-1, VO = 0.1V to (+VS) – 0.3V LT1789-10, VO = 0.2V to (+VS) – 0.3V G = 10 (Note 2) 0.06 0.25 0.01 0.25 % G = 100 (Note 2) 0.06 0.27 0.09 0.30 % G = 1000 (Note 2) 0.13 0.16 % Gain Nonlinearity (Note 6) G = 1, VO = 0.1V to (+VS) – 1V 35 100 ppm LT1789-1, VO = 0.1V to (+VS) – 0.3V LT1789-10, VO = 0.2V to 4.7V, VS = 5V (Note 8) G = 10 12 40 15 100 ppm G = 100 18 75 20 100 ppm G = 1000 90 100 ppm 1789fc 2
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Supply Voltage (V+ to V–)..36V TOP VIEW Input Differential Voltage ..36V R 1 8 R G G Input Current (Note 3) ... ±20mA –IN 2 7 +VS Output Short-Circuit Duration .. Indefinite +IN 3 6 OUT Operating Temperature Range ...–40°C to 85°C –VS 4 5 REF Specified Temperature Range (Note 4) S8 PACKAGE LT1789C-1, LT1789C-10 ...–40°C to 85°C 8-LEAD PLASTIC SO T LT1789I-1, LT1789I-10 ..–40°C to 85°C JMAX = 150°C, θJA = 190°C/W Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering, 10 sec)... 300°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1789CS8-1#PBF LT1789CS8-1#TRPBF 17891 8-Lead Plastic SO –40°C to 85°C LT1789IS8-1#PBF LT1789IS8-1#TRPBF 1789I1 8-Lead Plastic SO –40°C to 85°C LT1789CS8-10#PBF LT1789CS8-10#TRPBF 178910 8-Lead Plastic SO –40°C to 85°C LT1789IS8-10#PBF LT1789IS8-10#TRPBF 789I10 8-Lead Plastic SO –40°C to 85°C
LEAD BASED FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1789CS8-1 LT1789CS8-1#TR 17891 8-Lead Plastic SO –40°C to 85°C LT1789IS8-1 LT1789IS8-1#TR 1789I1 8-Lead Plastic SO –40°C to 85°C LT1789CS8-10 LT1789CS8-10#TR 178910 8-Lead Plastic SO –40°C to 85°C LT1789IS8-10 LT1789IS8-10#TR 789I10 8-Lead Plastic SO –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
3V AND 5V ELECTRICAL CHARACTERISTICS VS = 3V, 0V; VS = 5V, 0V; RL = 20k, VCM = VREF = half supply, TA = 25°C, unless otherwise noted. LT1789-1 LT1789-10 SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
G Gain Range LT1789-1, G = 1 + (200k/RG) 1 1000 LT1789-10, G = 10 • [1+ (200k/RG)] 10 1000 Gain Error (Note 6) G = 1, VO = 0.1V to (+VS) – 1V 0.02 0.20 % LT1789-1, VO = 0.1V to (+VS) – 0.3V LT1789-10, VO = 0.2V to (+VS) – 0.3V G = 10 (Note 2) 0.06 0.25 0.01 0.25 % G = 100 (Note 2) 0.06 0.27 0.09 0.30 % G = 1000 (Note 2) 0.13 0.16 % Gain Nonlinearity (Note 6) G = 1, VO = 0.1V to (+VS) – 1V 35 100 ppm LT1789-1, VO = 0.1V to (+VS) – 0.3V LT1789-10, VO = 0.2V to 4.7V, VS = 5V (Note 8) G = 10 12 40 15 100 ppm G = 100 18 75 20 100 ppm G = 1000 90 100 ppm 1789fc 2
