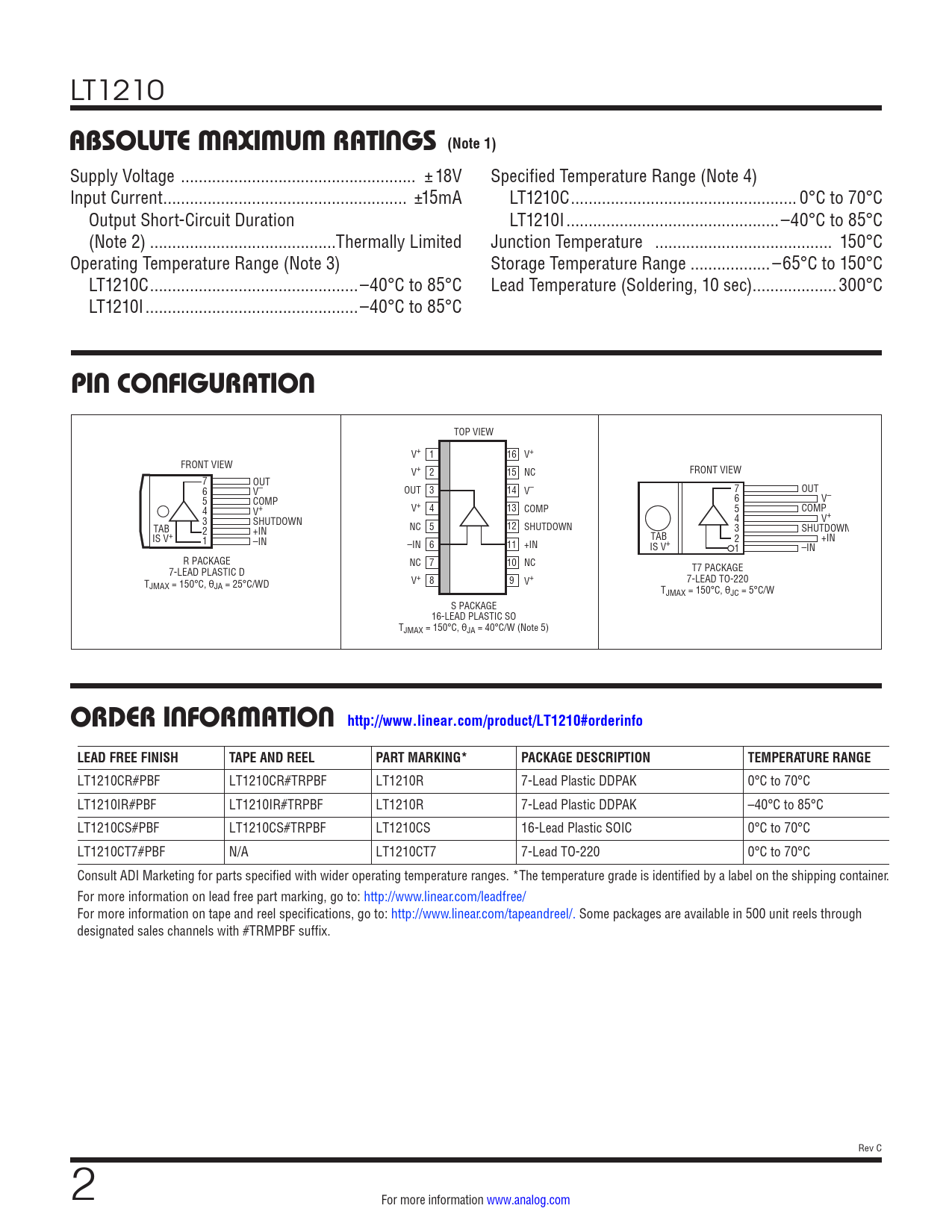

LT1210
ABSOLUTE MAXIMUM RATINGS (Note 1)
Supply Voltage ... ±18V Specified Temperature Range (Note 4) Input Current ... ±15mA LT1210C ... 0°C to 70°C Output Short-Circuit Duration LT1210I ..–40°C to 85°C (Note 2) ..Thermally Limited Junction Temperature .. 150°C Operating Temperature Range (Note 3) Storage Temperature Range ..–65°C to 150°C LT1210C ...–40°C to 85°C Lead Temperature (Soldering, 10 sec) ...300°C LT1210I ..–40°C to 85°C
PIN CONFIGURATION
TOP VIEW V+ 1 16 V+ FRONT VIEW V+ 2 15 NC FRONT VIEW 7 OUT 6 V– OUT 3 14 V– 7 OUT 5 COMP 6 V– 4 V+ V+ 4 13 COMP 5 COMP 3 SHUTDOWN 4 V+ TAB 2 +IN NC 5 12 SHUTDOWN 3 SHUTDOWN IS V+ 1 –IN TAB 2 +IN –IN 6 11 +IN IS V+ 1 –IN R PACKAGE NC 7 10 NC 7-LEAD PLASTIC D T7 PACKAGE T V+ 8 9 V+ 7-LEAD TO-220 JMAX = 150°C, θJA = 25°C/WD TJMAX = 150°C, θJC = 5°C/W S PACKAGE 16-LEAD PLASTIC SO TJMAX = 150°C, θJA = 40°C/W (Note 5)
ORDER INFORMATION http://www.linear.com/product/LT1210#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1210CR#PBF LT1210CR#TRPBF LT1210R 7-Lead Plastic DDPAK 0°C to 70°C LT1210IR#PBF LT1210IR#TRPBF LT1210R 7-Lead Plastic DDPAK –40°C to 85°C LT1210CS#PBF LT1210CS#TRPBF LT1210CS 16-Lead Plastic SOIC 0°C to 70°C LT1210CT7#PBF N/A LT1210CT7 7-Lead TO-220 0°C to 70°C Consult ADI Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. Rev C 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Small-Signal Bandwidth Typical Performance Characteristics Applications Information Typical Applications Simplified Schematic Package Description Revision History Typical Application Related Parts
