Datasheet LT1210 (Analog Devices) - 4
| 制造商 | Analog Devices |
| 描述 | 1.1A, 35MHz Current Feedback Amplifier |
| 页数 / 页 | 20 / 4 — ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply … |
| 修订版 | C |
| 文件格式/大小 | PDF / 1.3 Mb |
| 文件语言 | 英语 |

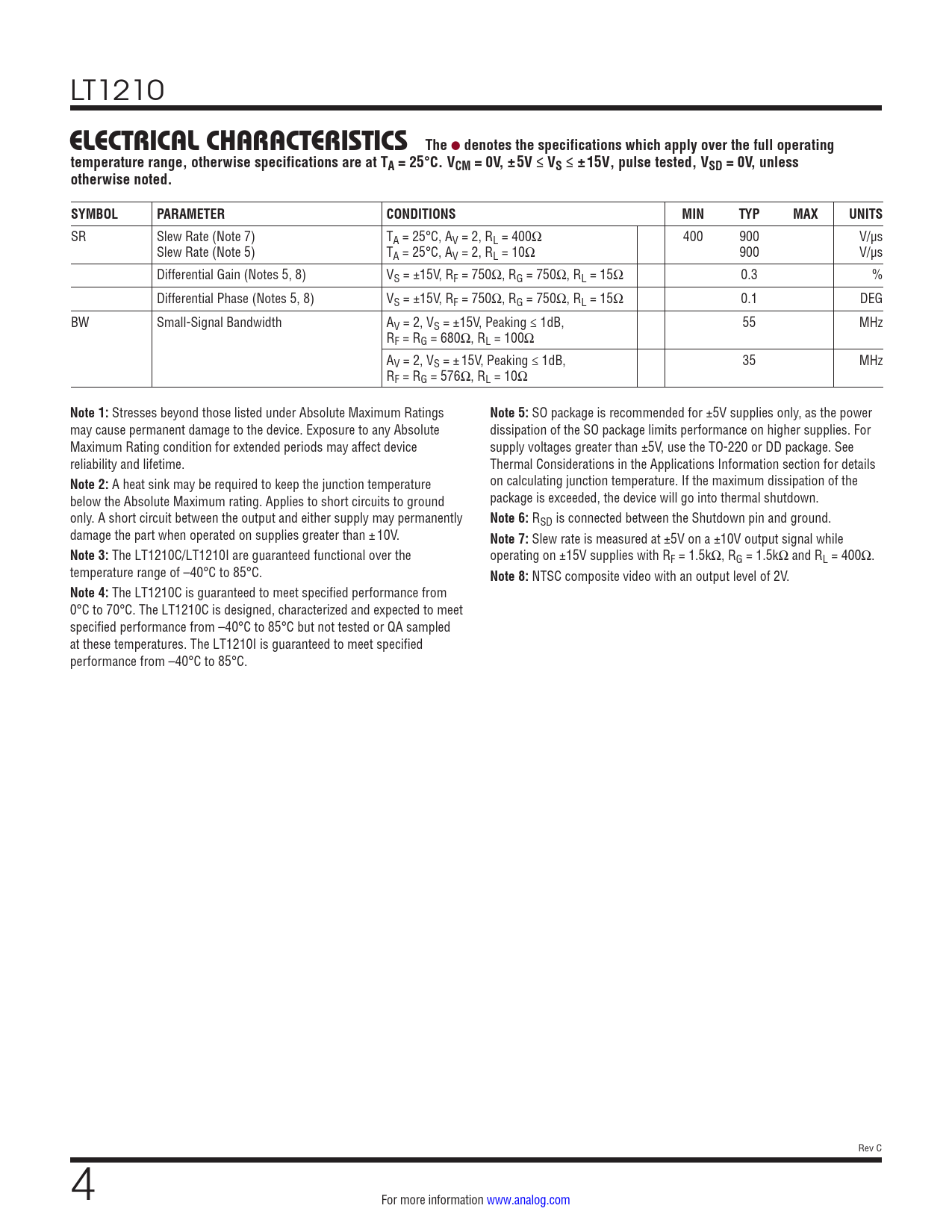

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the full operating
该数据表的模型线
文件文字版本
link to page 12 link to page 9 LT1210
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VCM = 0V, ±5V ≤ VS ≤ ±15V, pulse tested, VSD = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
SR Slew Rate (Note 7) TA = 25°C, AV = 2, RL = 400Ω 400 900 V/µs Slew Rate (Note 5) TA = 25°C, AV = 2, RL = 10Ω 900 V/µs Differential Gain (Notes 5, 8) VS = ±15V, RF = 750Ω, RG = 750Ω, RL = 15Ω 0.3 % Differential Phase (Notes 5, 8) VS = ±15V, RF = 750Ω, RG = 750Ω, RL = 15Ω 0.1 DEG BW Small-Signal Bandwidth AV = 2, VS = ±15V, Peaking ≤ 1dB, 55 MHz RF = RG = 680Ω, RL = 100Ω AV = 2, VS = ±15V, Peaking ≤ 1dB, 35 MHz RF = RG = 576Ω, RL = 10Ω
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 5:
SO package is recommended for ±5V supplies only, as the power may cause permanent damage to the device. Exposure to any Absolute dissipation of the SO package limits performance on higher supplies. For Maximum Rating condition for extended periods may affect device supply voltages greater than ±5V, use the TO-220 or DD package. See reliability and lifetime. Thermal Considerations in the Applications Information section for details
Note 2:
A heat sink may be required to keep the junction temperature on calculating junction temperature. If the maximum dissipation of the below the Absolute Maximum rating. Applies to short circuits to ground package is exceeded, the device will go into thermal shutdown. only. A short circuit between the output and either supply may permanently
Note 6:
RSD is connected between the Shutdown pin and ground. damage the part when operated on supplies greater than ±10V.
Note 7:
Slew rate is measured at ±5V on a ±10V output signal while
Note 3:
The LT1210C/LT1210I are guaranteed functional over the operating on ±15V supplies with RF = 1.5kΩ, RG = 1.5kΩ and RL = 400Ω. temperature range of –40°C to 85°C.
Note 8:
NTSC composite video with an output level of 2V.
Note 4:
The LT1210C is guaranteed to meet specified performance from 0°C to 70°C. The LT1210C is designed, characterized and expected to meet specified performance from –40°C to 85°C but not tested or QA sampled at these temperatures. The LT1210I is guaranteed to meet specified performance from –40°C to 85°C. Rev C 4 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Small-Signal Bandwidth Typical Performance Characteristics Applications Information Typical Applications Simplified Schematic Package Description Revision History Typical Application Related Parts
