Datasheet LT1253, LT1254 (Analog Devices) - 2
| 制造商 | Analog Devices |
| 描述 | Low Cost Dual and Quad Video Amplifiers |
| 页数 / 页 | 8 / 2 — ABSOLUTE. AXI U. R TI GS. PACKAGE/ORDER I FOR ATIO. ELECTRICAL … |
| 文件格式/大小 | PDF / 222 Kb |
| 文件语言 | 英语 |

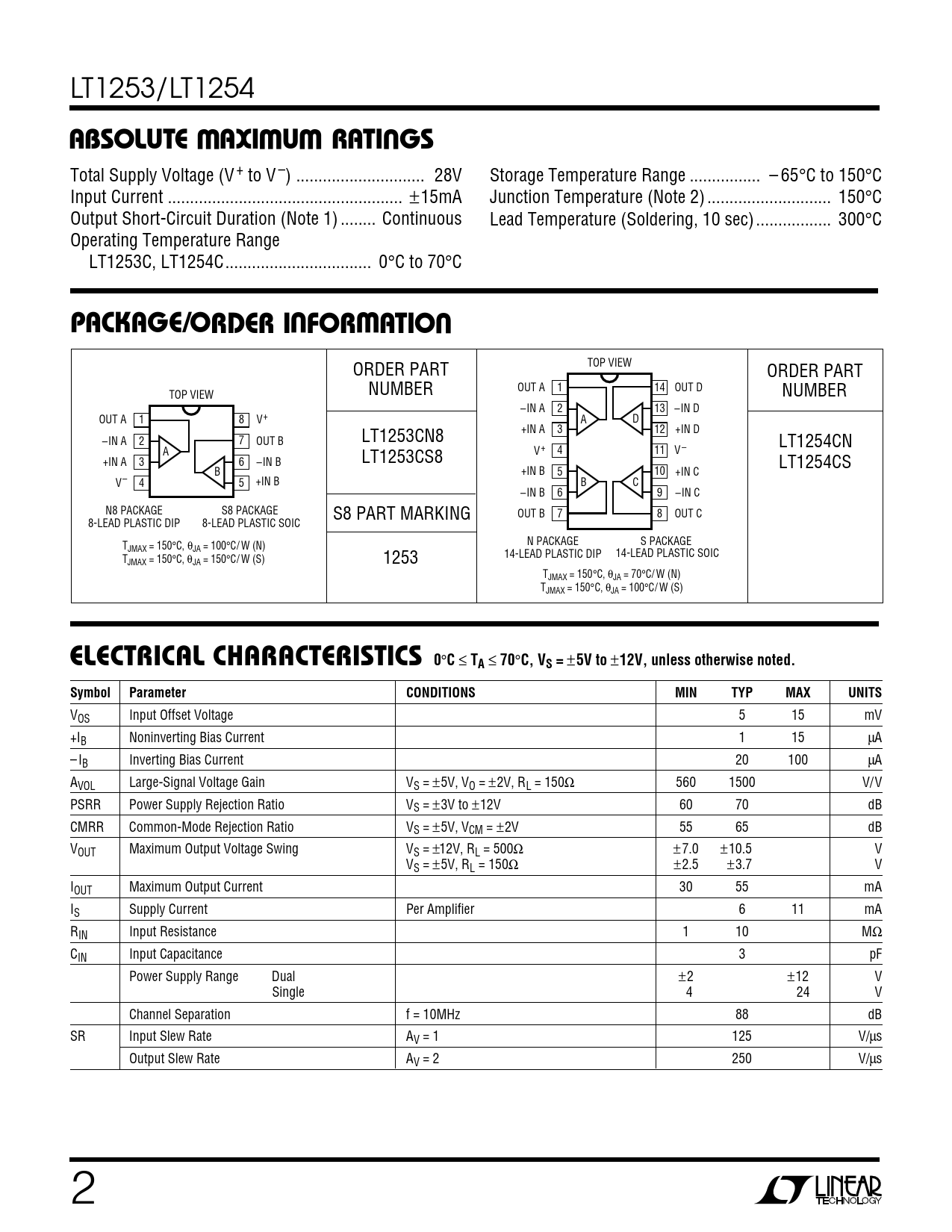

ABSOLUTE. AXI U. R TI GS. PACKAGE/ORDER I FOR ATIO. ELECTRICAL CHARACTERISTICS 0. C, VS =. 5V to. 12V, unless otherwise noted. Symbol
该数据表的模型线
文件文字版本
LT1253/LT1254
W W W U ABSOLUTE AXI U A R TI GS
Total Supply Voltage (V + to V –) ... 28V Storage Temperature Range .. – 65°C to 150°C Input Current ... ±15mA Junction Temperature (Note 2) .. 150°C Output Short-Circuit Duration (Note 1) .. Continuous Lead Temperature (Soldering, 10 sec) ... 300°C Operating Temperature Range LT1253C, LT1254C... 0°C to 70°C
U W U PACKAGE/ORDER I FOR ATIO
ORDER PART TOP VIEW ORDER PART NUMBER OUT A 1 14 OUT D TOP VIEW NUMBER –IN A 2 13 –IN D OUT A 1 8 + V A D –IN A 2 7 OUT B LT1253CN8 +IN A 3 12 +IN D LT1254CN + A +IN A 3 6 –IN B LT1253CS8 V 4 11 V – LT1254CS B +IN B 5 10 +IN C – V 4 5 +IN B B C –IN B 6 9 –IN C N8 PACKAGE S8 PACKAGE S8 PART MARKING OUT B 7 8 OUT C 8-LEAD PLASTIC DIP 8-LEAD PLASTIC SOIC N PACKAGE S PACKAGE TJMAX = 150°C, θJA = 100°C/ W (N) TJMAX = 150°C, θJA = 150°C/ W (S) 1253 14-LEAD PLASTIC DIP 14-LEAD PLASTIC SOIC TJMAX = 150°C, θJA = 70°C/ W (N) TJMAX = 150°C, θJA = 100°C/ W (S)
ELECTRICAL CHARACTERISTICS 0
°
C
≤
TA
≤
70
°
C, VS =
±
5V to
±
12V, unless otherwise noted. Symbol Parameter CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage 5 15 mV +IB Noninverting Bias Current 1 15 µA – IB Inverting Bias Current 20 100 µA AVOL Large-Signal Voltage Gain VS = ±5V, VO = ±2V, RL = 150Ω 560 1500 V/V PSRR Power Supply Rejection Ratio VS = ±3V to ±12V 60 70 dB CMRR Common-Mode Rejection Ratio VS = ±5V, VCM = ±2V 55 65 dB VOUT Maximum Output Voltage Swing VS = ±12V, RL = 500Ω ±7.0 ±10.5 V VS = ±5V, RL = 150Ω ±2.5 ±3.7 V IOUT Maximum Output Current 30 55 mA IS Supply Current Per Amplifier 6 11 mA RIN Input Resistance 1 10 MΩ CIN Input Capacitance 3 pF Power Supply Range Dual ±2 ±12 V Single 4 24 V Channel Separation f = 10MHz 88 dB SR Input Slew Rate AV = 1 125 V/µs Output Slew Rate AV = 2 250 V/µs 2
