Datasheet LT1630, LT1631 (Analog Devices) - 2
| 制造商 | Analog Devices |
| 描述 | 30MHz, 10V/µs, Dual/Quad Rail-to-Rail Input and Output Precision Op Amps |
| 页数 / 页 | 20 / 2 — (Note 1). LEAD FREE FINISH. TAPE AND REEL. PART MARKING. PACKAGE … |
| 文件格式/大小 | PDF / 367 Kb |
| 文件语言 | 英语 |
(Note 1). LEAD FREE FINISH. TAPE AND REEL. PART MARKING. PACKAGE DESCRIPTION. TEMPERATURE RANGE
该数据表的模型线
文件文字版本

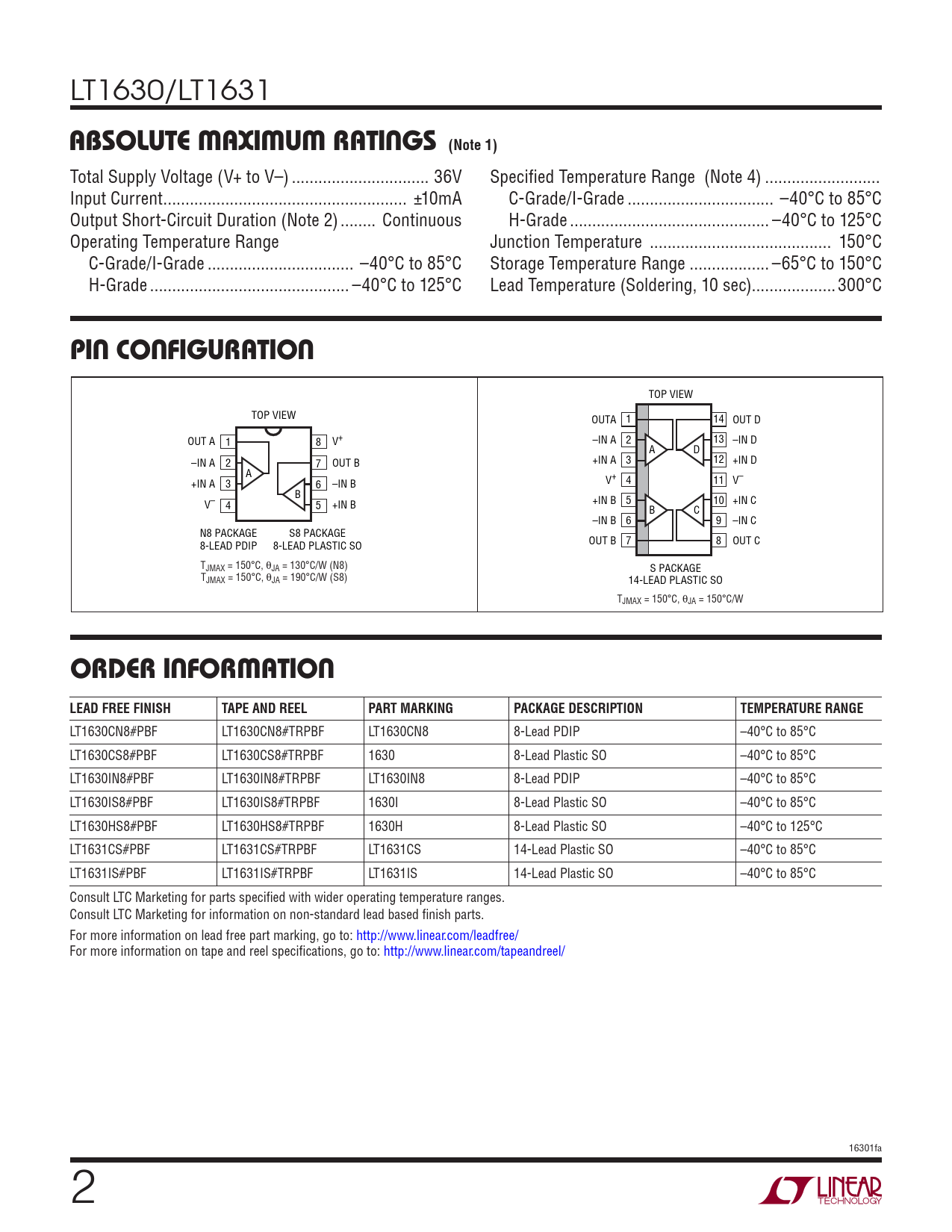

LT1630/LT1631 absoluTe MaxiMuM raTings
(Note 1)
Total Supply Voltage (V+ to V–) ... 36V Specified Temperature Range (Note 4) .. Input Current ... ±10mA C-Grade/I-Grade ... –40°C to 85°C Output Short-Circuit Duration (Note 2) .. Continuous H-Grade ... –40°C to 125°C Operating Temperature Range Junction Temperature ... 150°C C-Grade/I-Grade ... –40°C to 85°C Storage Temperature Range .. –65°C to 150°C H-Grade ... –40°C to 125°C Lead Temperature (Soldering, 10 sec)...300°C pin conFiguraTion TOP VIEW TOP VIEW OUTA 1 14 OUT D OUT A 1 8 V+ –IN A 2 13 –IN D A D –IN A 2 7 OUT B +IN A 3 12 +IN D A +IN A 3 6 –IN B V+ 4 11 V– B V– 4 5 +IN B +IN B 5 10 +IN C B C –IN B 6 9 –IN C N8 PACKAGE S8 PACKAGE 8-LEAD PDIP 8-LEAD PLASTIC SO OUT B 7 8 OUT C TJMAX = 150°C, θJA = 130°C/W (N8) S PACKAGE TJMAX = 150°C, θJA = 190°C/W (S8) 14-LEAD PLASTIC SO TJMAX = 150°C, θJA = 150°C/W orDer inForMaTion
LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1630CN8#PBF LT1630CN8#TRPBF LT1630CN8 8-Lead PDIP –40°C to 85°C LT1630CS8#PBF LT1630CS8#TRPBF 1630 8-Lead Plastic SO –40°C to 85°C LT1630IN8#PBF LT1630IN8#TRPBF LT1630IN8 8-Lead PDIP –40°C to 85°C LT1630IS8#PBF LT1630IS8#TRPBF 1630I 8-Lead Plastic SO –40°C to 85°C LT1630HS8#PBF LT1630HS8#TRPBF 1630H 8-Lead Plastic SO –40°C to 125°C LT1631CS#PBF LT1631CS#TRPBF LT1631CS 14-Lead Plastic SO –40°C to 85°C LT1631IS#PBF LT1631IS#TRPBF LT1631IS 14-Lead Plastic SO –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 16301fa Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Package Description Typical Application Related Parts
