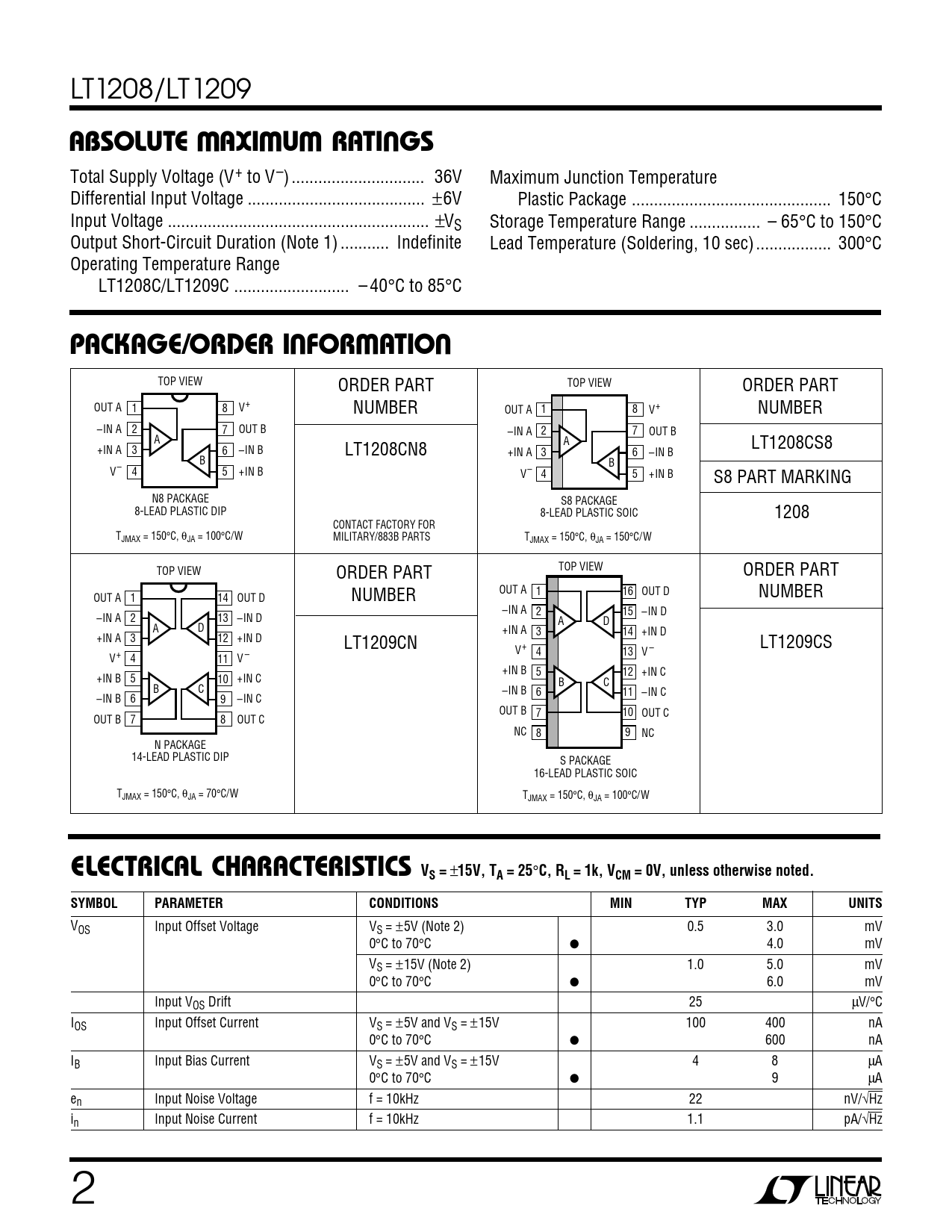

LT1208/LT1209
W W W U ABSOLUTE AXI U A R TI GS
Total Supply Voltage (V+ to V–) .. 36V Maximum Junction Temperature Differential Input Voltage .. ±6V Plastic Package ... 150°C Input Voltage ... ±VS Storage Temperature Range .. – 65°C to 150°C Output Short-Circuit Duration (Note 1) ... Indefinite Lead Temperature (Soldering, 10 sec) ... 300°C Operating Temperature Range LT1208C/LT1209C .. – 40°C to 85°C
U W U PACKAGE/ORDER I FOR ATIO
TOP VIEW ORDER PART TOP VIEW ORDER PART OUT A 1 8 V+ NUMBER OUT A 1 8 V+ NUMBER –IN A 2 7 OUT B –IN A 2 7 OUT B A A LT1208CS8 +IN A 3 6 –IN B LT1208CN8 +IN A 3 6 –IN B B B V– 4 5 +IN B V– 4 5 +IN B S8 PART MARKING N8 PACKAGE S8 PACKAGE 8-LEAD PLASTIC DIP 8-LEAD PLASTIC SOIC 1208 CONTACT FACTORY FOR TJMAX = 150°C, θJA = 100°C/W MILITARY/883B PARTS TJMAX = 150°C, θJA = 150°C/W TOP VIEW ORDER PART TOP VIEW ORDER PART OUT A 1 16 OUT D OUT A 1 14 OUT D NUMBER NUMBER –IN A 2 15 –IN D –IN A 2 13 –IN D A D A D +IN A 3 14 +IN D +IN A 3 12 +IN D LT1209CN LT1209CS V+ 4 13 V – V+ 4 11 V – +IN B 5 12 +IN C +IN B 5 10 +IN C B C B C –IN B 6 11 –IN C –IN B 6 9 –IN C OUT B 7 10 OUT C OUT B 7 8 OUT C NC 8 9 NC N PACKAGE 14-LEAD PLASTIC DIP S PACKAGE 16-LEAD PLASTIC SOIC TJMAX = 150°C, θJA = 70°C/W TJMAX = 150°C, θJA = 100°C/W
ELECTRICAL CHAR C A TERISTICS VS =
±
15V, TA = 25
°
C, RL = 1k, VCM = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VS = ±5V (Note 2) 0.5 3.0 mV 0°C to 70°C ● 4.0 mV VS = ±15V (Note 2) 1.0 5.0 mV 0°C to 70°C ● 6.0 mV Input VOS Drift 25 µV/°C IOS Input Offset Current VS = ±5V and VS = ±15V 100 400 nA 0°C to 70°C ● 600 nA IB Input Bias Current VS = ±5V and VS = ±15V 4 8 µA 0°C to 70°C ● 9 µA en Input Noise Voltage f = 10kHz 22 nV/√Hz in Input Noise Current f = 10kHz 1.1 pA/√Hz 2
