Datasheet LT6203X (Analog Devices) - 4
| 制造商 | Analog Devices |
| 描述 | High Temperature 175°C Dual 100MHz, Rail-to-Rail Input and Output, Ultralow 1.9nV/√Hz Noise, Low Power Op Amp |
| 页数 / 页 | 16 / 4 — elecTrical characTerisTics. The. denotes the specifications which apply … |
| 文件格式/大小 | PDF / 1.8 Mb |
| 文件语言 | 英语 |

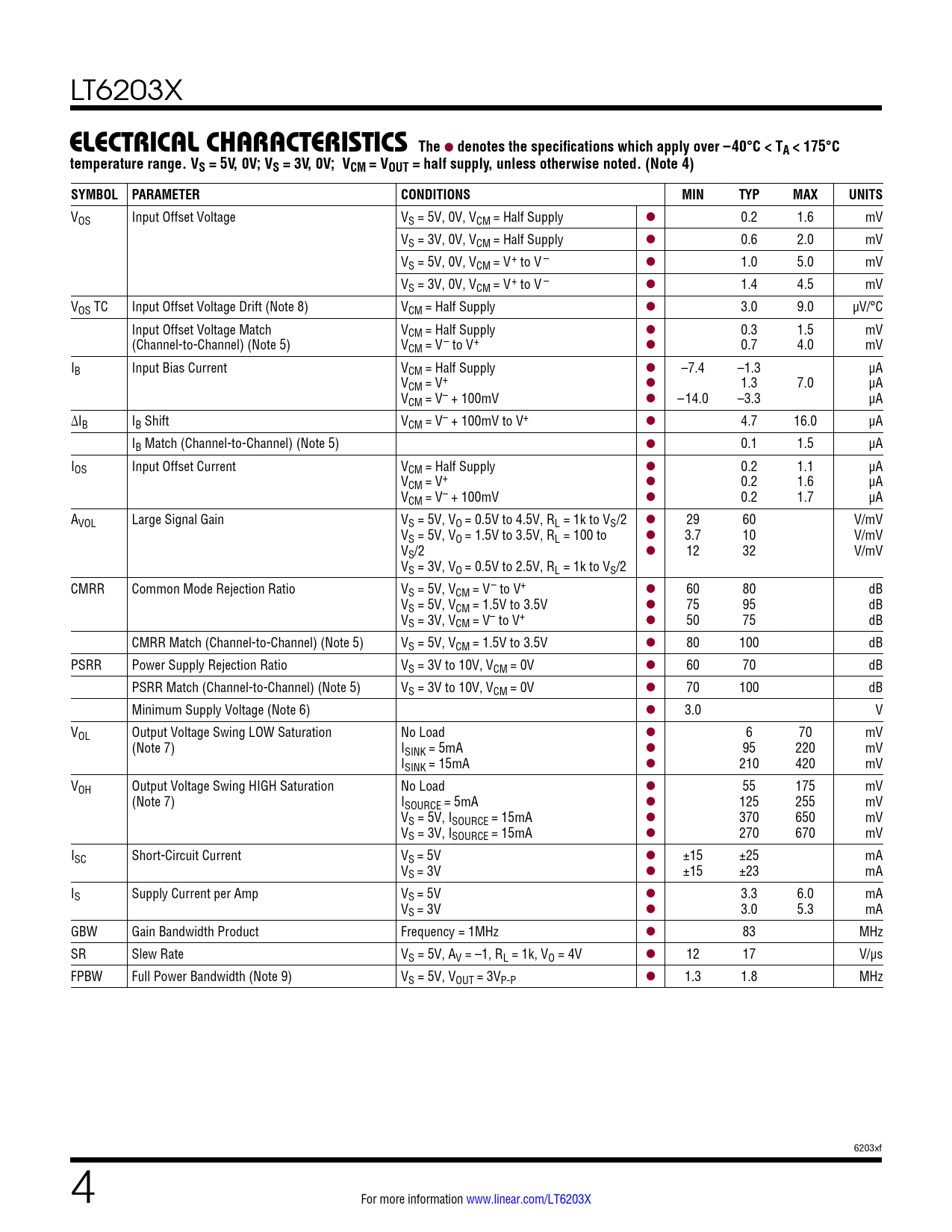

elecTrical characTerisTics. The. denotes the specifications which apply over –40°C < TA < 175°C
该数据表的模型线
文件文字版本
LT6203X
elecTrical characTerisTics The
l
denotes the specifications which apply over –40°C < TA < 175°C temperature range. VS = 5V, 0V; VS = 3V, 0V; VCM = VOUT = half supply, unless otherwise noted. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VS = 5V, 0V, VCM = Half Supply l 0.2 1.6 mV VS = 3V, 0V, VCM = Half Supply l 0.6 2.0 mV VS = 5V, 0V, VCM = V+ to V – l 1.0 5.0 mV VS = 3V, 0V, VCM = V+ to V – l 1.4 4.5 mV VOS TC Input Offset Voltage Drift (Note 8) VCM = Half Supply l 3.0 9.0 µV/°C Input Offset Voltage Match VCM = Half Supply l 0.3 1.5 mV (Channel-to-Channel) (Note 5) VCM = V– to V+ l 0.7 4.0 mV IB Input Bias Current VCM = Half Supply l –7.4 –1.3 µA VCM = V+ l 1.3 7.0 µA VCM = V– + 100mV l –14.0 –3.3 µA ∆IB IB Shift VCM = V– + 100mV to V+ l 4.7 16.0 µA IB Match (Channel-to-Channel) (Note 5) l 0.1 1.5 µA IOS Input Offset Current VCM = Half Supply l 0.2 1.1 µA VCM = V+ l 0.2 1.6 µA VCM = V– + 100mV l 0.2 1.7 µA AVOL Large Signal Gain VS = 5V, VO = 0.5V to 4.5V, RL = 1k to VS/2 l 29 60 V/mV VS = 5V, VO = 1.5V to 3.5V, RL = 100 to l 3.7 10 V/mV VS/2 l 12 32 V/mV VS = 3V, VO = 0.5V to 2.5V, RL = 1k to VS/2 CMRR Common Mode Rejection Ratio VS = 5V, VCM = V– to V+ l 60 80 dB VS = 5V, VCM = 1.5V to 3.5V l 75 95 dB VS = 3V, VCM = V – to V+ l 50 75 dB CMRR Match (Channel-to-Channel) (Note 5) VS = 5V, VCM = 1.5V to 3.5V l 80 100 dB PSRR Power Supply Rejection Ratio VS = 3V to 10V, VCM = 0V l 60 70 dB PSRR Match (Channel-to-Channel) (Note 5) VS = 3V to 10V, VCM = 0V l 70 100 dB Minimum Supply Voltage (Note 6) l 3.0 V VOL Output Voltage Swing LOW Saturation No Load l 6 70 mV (Note 7) ISINK = 5mA l 95 220 mV ISINK = 15mA l 210 420 mV VOH Output Voltage Swing HIGH Saturation No Load l 55 175 mV (Note 7) ISOURCE = 5mA l 125 255 mV VS = 5V, ISOURCE = 15mA l 370 650 mV VS = 3V, ISOURCE = 15mA l 270 670 mV ISC Short-Circuit Current VS = 5V l ±15 ±25 mA VS = 3V l ±15 ±23 mA IS Supply Current per Amp VS = 5V l 3.3 6.0 mA VS = 3V l 3.0 5.3 mA GBW Gain Bandwidth Product Frequency = 1MHz l 83 MHz SR Slew Rate VS = 5V, AV = –1, RL = 1k, VO = 4V l 12 17 V/µs FPBW Full Power Bandwidth (Note 9) VS = 5V, VOUT = 3VP-P l 1.3 1.8 MHz 6203xf 4 For more information www.linear.com/LT6203X Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Electrical Characteristics Typical Performance Characteristics Applications Information Typical Application Related Parts Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Applications Information Package Description Typical Application Related Parts
