DatasheetLT6236, LT6237, LT6238 (Analog Devices) - 2
| 制造商 | Analog Devices |
| 描述 | Rail-to-Rail Output 215MHz, 1.1nV/√Hz Op Amp/SAR ADC Driver |
| 页数 / 页 | 26 / 2 — absoluTe MaxiMuM raTings (Note 1). pin conFiguraTion. orDer inForMaTion. … |
| 文件格式/大小 | PDF / 1.6 Mb |
| 文件语言 | 英语 |
absoluTe MaxiMuM raTings (Note 1). pin conFiguraTion. orDer inForMaTion. SPECIFIED. LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
该数据表的模型线
- LT6236CS6#PBF LT6236CS6#TRMPBF LT6236CS6#TRPBF LT6236HS6#PBF LT6236HS6#TRMPBF LT6236HS6#TRPBF LT6236IS6#PBF LT6236IS6#TRMPBF LT6236IS6#TRPBF
文件文字版本
LT6236/LT6237/LT6238
absoluTe MaxiMuM raTings (Note 1)
Total Supply Voltage (V+ to V–) ..12.6V Specified Temperature Range (Note 5)...–40°C to125°C Input Current (Note 2) ... ±40mA Maximum Junction Temperature .. 150°C Output Short-Circuit Duration (Note 3) .. Indefinite Storage Temperature Range .. –65°C to 150°C Operating Temperature Range (Note 4).. –40°C to 125°C
pin conFiguraTion

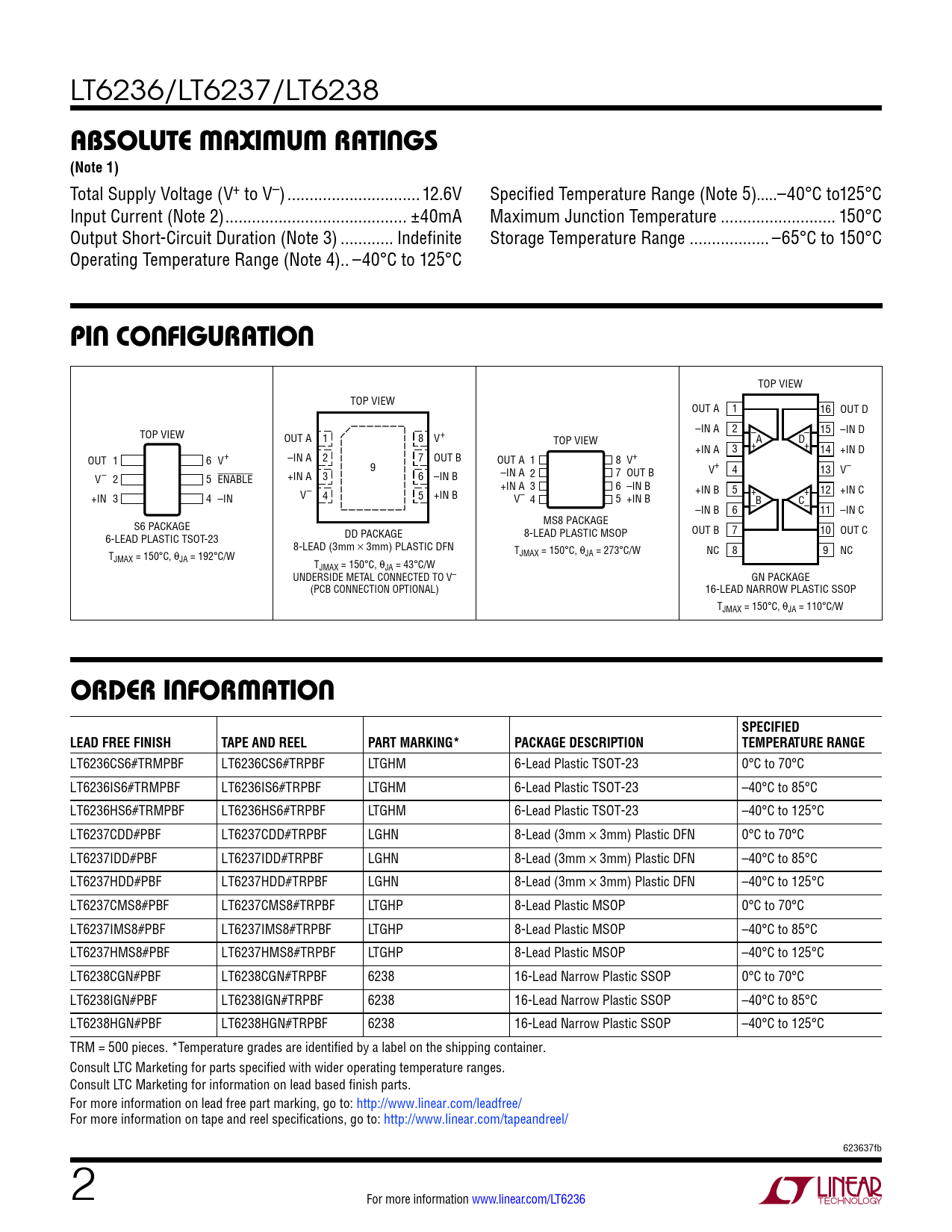

TOP VIEW TOP VIEW OUT A 1 16 OUT D – – TOP VIEW –IN A 2 15 –IN D OUT A 1 8 V+ TOP VIEW +A D + +IN A 3 14 +IN D OUT 1 6 V+ –IN A 2 7 OUT B OUT A 1 8 V+ 9 V+ 4 13 V– V– 2 5 ENABLE +IN A 3 6 –IN B –IN A 2 7 OUT B +IN A 3 6 –IN B +IN B 5 + + 12 +IN C +IN 3 4 –IN V– 4 5 +IN B V– 4 5 +IN B –IN B 6 –B C – 11 –IN C S6 PACKAGE MS8 PACKAGE OUT B 7 10 OUT C 6-LEAD PLASTIC TSOT-23 DD PACKAGE 8-LEAD PLASTIC MSOP 8-LEAD (3mm × 3mm) PLASTIC DFN T TJMAX = 150°C, θJA = 273°C/W NC 8 9 NC JMAX = 150°C, θJA = 192°C/W TJMAX = 150°C, θJA = 43°C/W UNDERSIDE METAL CONNECTED TO V– GN PACKAGE (PCB CONNECTION OPTIONAL) 16-LEAD NARROW PLASTIC SSOP TJMAX = 150°C, θJA = 110°C/W
orDer inForMaTion SPECIFIED LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT6236CS6#TRMPBF LT6236CS6#TRPBF LTGHM 6-Lead Plastic TSOT-23 0°C to 70°C LT6236IS6#TRMPBF LT6236IS6#TRPBF LTGHM 6-Lead Plastic TSOT-23 –40°C to 85°C LT6236HS6#TRMPBF LT6236HS6#TRPBF LTGHM 6-Lead Plastic TSOT-23 –40°C to 125°C LT6237CDD#PBF LT6237CDD#TRPBF LGHN 8-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LT6237IDD#PBF LT6237IDD#TRPBF LGHN 8-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LT6237HDD#PBF LT6237HDD#TRPBF LGHN 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT6237CMS8#PBF LT6237CMS8#TRPBF LTGHP 8-Lead Plastic MSOP 0°C to 70°C LT6237IMS8#PBF LT6237IMS8#TRPBF LTGHP 8-Lead Plastic MSOP –40°C to 85°C LT6237HMS8#PBF LT6237HMS8#TRPBF LTGHP 8-Lead Plastic MSOP –40°C to 125°C LT6238CGN#PBF LT6238CGN#TRPBF 6238 16-Lead Narrow Plastic SSOP 0°C to 70°C LT6238IGN#PBF LT6238IGN#TRPBF 6238 16-Lead Narrow Plastic SSOP –40°C to 85°C LT6238HGN#PBF LT6238HGN#TRPBF 6238 16-Lead Narrow Plastic SSOP –40°C to 125°C TRM = 500 pieces. *Temperature grades are identified by a label on the shipping container. Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 623637fb 2 For more information www.linear.com/LT6236
