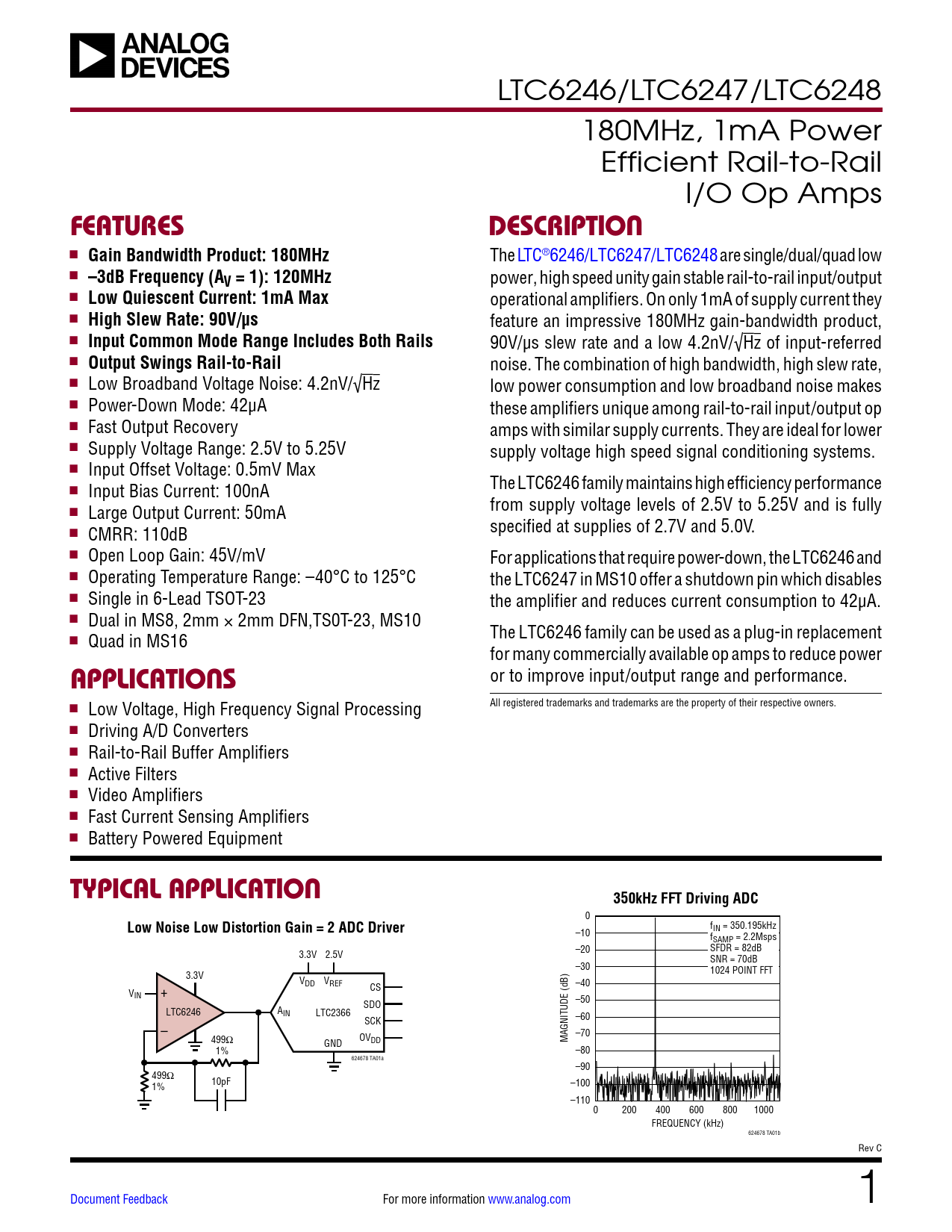

LTC6246/LTC6247/LTC6248 180MHz, 1mA Power Efficient Rail-to-Rail I/O Op Amps
FEATURES DESCRIPTION
n
Gain Bandwidth Product: 180MHz
The LTC®6246/LTC6247/LTC6248 are single/dual/quad low n
–3dB Frequency (AV = 1): 120MHz
power, high speed unity gain stable rail-to-rail input/output n
Low Quiescent Current: 1mA Max
operational amplifiers. On only 1mA of supply current they n
High Slew Rate: 90V/µs
feature an impressive 180MHz gain-bandwidth product, n
Input Common Mode Range Includes Both Rails
90V/µs slew rate and a low 4.2nV/√Hz of input-referred n
Output Swings Rail-to-Rail
noise. The combination of high bandwidth, high slew rate, n Low Broadband Voltage Noise: 4.2nV/√Hz low power consumption and low broadband noise makes n Power-Down Mode: 42μA these amplifiers unique among rail-to-rail input/output op n Fast Output Recovery amps with similar supply currents. They are ideal for lower n Supply Voltage Range: 2.5V to 5.25V supply voltage high speed signal conditioning systems. n Input Offset Voltage: 0.5mV Max n The LTC6246 family maintains high efficiency performance Input Bias Current: 100nA n from supply voltage levels of 2.5V to 5.25V and is fully Large Output Current: 50mA n specified at supplies of 2.7V and 5.0V. CMRR: 110dB n Open Loop Gain: 45V/mV For applications that require power-down, the LTC6246 and n Operating Temperature Range: –40°C to 125°C the LTC6247 in MS10 offer a shutdown pin which disables n Single in 6-Lead TSOT-23 the amplifier and reduces current consumption to 42µA. n Dual in MS8, 2mm × 2mm DFN,TS0T-23, MS10 The LTC6246 family can be used as a plug-in replacement n Quad in MS16 for many commercially available op amps to reduce power or to improve input/output range and performance.
APPLICATIONS
All registered trademarks and trademarks are the property of their respective owners. n Low Voltage, High Frequency Signal Processing n Driving A/D Converters n Rail-to-Rail Buffer Amplifiers n Active Filters n Video Amplifiers n Fast Current Sensing Amplifiers n Battery Powered Equipment
TYPICAL APPLICATION 350kHz FFT Driving ADC
