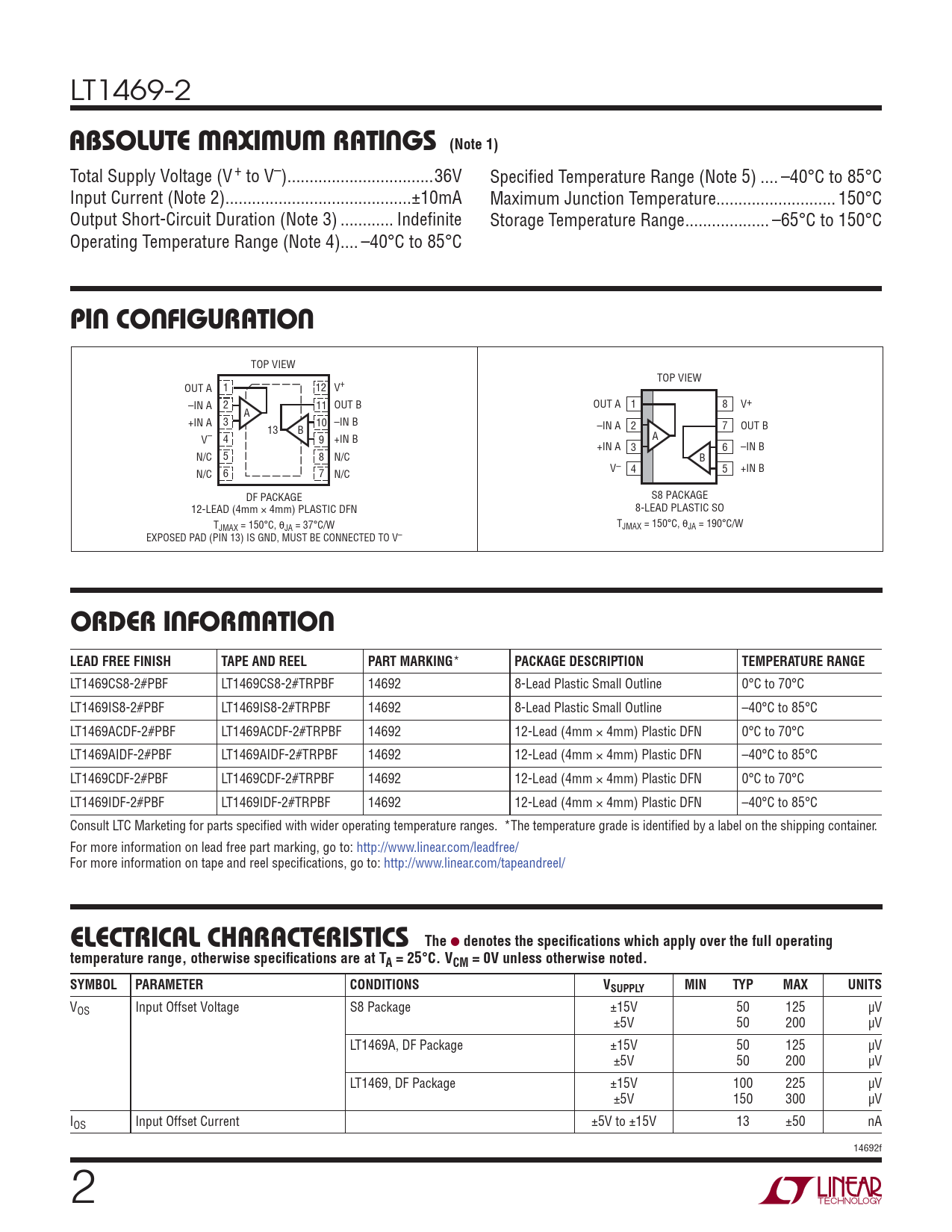

LT1469-2
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V + to V–) ...36V Specifi ed Temperature Range (Note 5) .. –40°C to 85°C Input Current (Note 2) ..±10mA Maximum Junction Temperature... 150°C Output Short-Circuit Duration (Note 3) .. Indefi nite Storage Temperature Range ... –65°C to 150°C Operating Temperature Range (Note 4).. –40°C to 85°C
PIN CONFIGURATION
TOP VIEW TOP VIEW OUT A 1 12 V+ –IN A 2 11 OUT B OUT A 1 8 V+ A +IN A 3 10 –IN B 13 B –IN A 2 7 OUT B V– 4 9 +IN B A +IN A 3 6 –IN B N/C 5 8 N/C B V– 4 5 +IN B N/C 6 7 N/C DF PACKAGE S8 PACKAGE 12-LEAD (4mm × 4mm) PLASTIC DFN 8-LEAD PLASTIC SO T T JMAX = 150°C, θJA = 37°C/W JMAX = 150°C, θJA = 190°C/W EXPOSED PAD (PIN 13) IS GND, MUST BE CONNECTED TO V–
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING
*
PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1469CS8-2#PBF LT1469CS8-2#TRPBF 14692 8-Lead Plastic Small Outline 0°C to 70°C LT1469IS8-2#PBF LT1469IS8-2#TRPBF 14692 8-Lead Plastic Small Outline –40°C to 85°C LT1469ACDF-2#PBF LT1469ACDF-2#TRPBF 14692 12-Lead (4mm × 4mm) Plastic DFN 0°C to 70°C LT1469AIDF-2#PBF LT1469AIDF-2#TRPBF 14692 12-Lead (4mm × 4mm) Plastic DFN –40°C to 85°C LT1469CDF-2#PBF LT1469CDF-2#TRPBF 14692 12-Lead (4mm × 4mm) Plastic DFN 0°C to 70°C LT1469IDF-2#PBF LT1469IDF-2#TRPBF 14692 12-Lead (4mm × 4mm) Plastic DFN –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VCM = 0V unless otherwise noted. SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
VOS Input Offset Voltage S8 Package ±15V 50 125 μV ±5V 50 200 μV LT1469A, DF Package ±15V 50 125 μV ±5V 50 200 μV LT1469, DF Package ±15V 100 225 μV ±5V 150 300 μV IOS Input Offset Current ±5V to ±15V 13 ±50 nA 14692f 2
