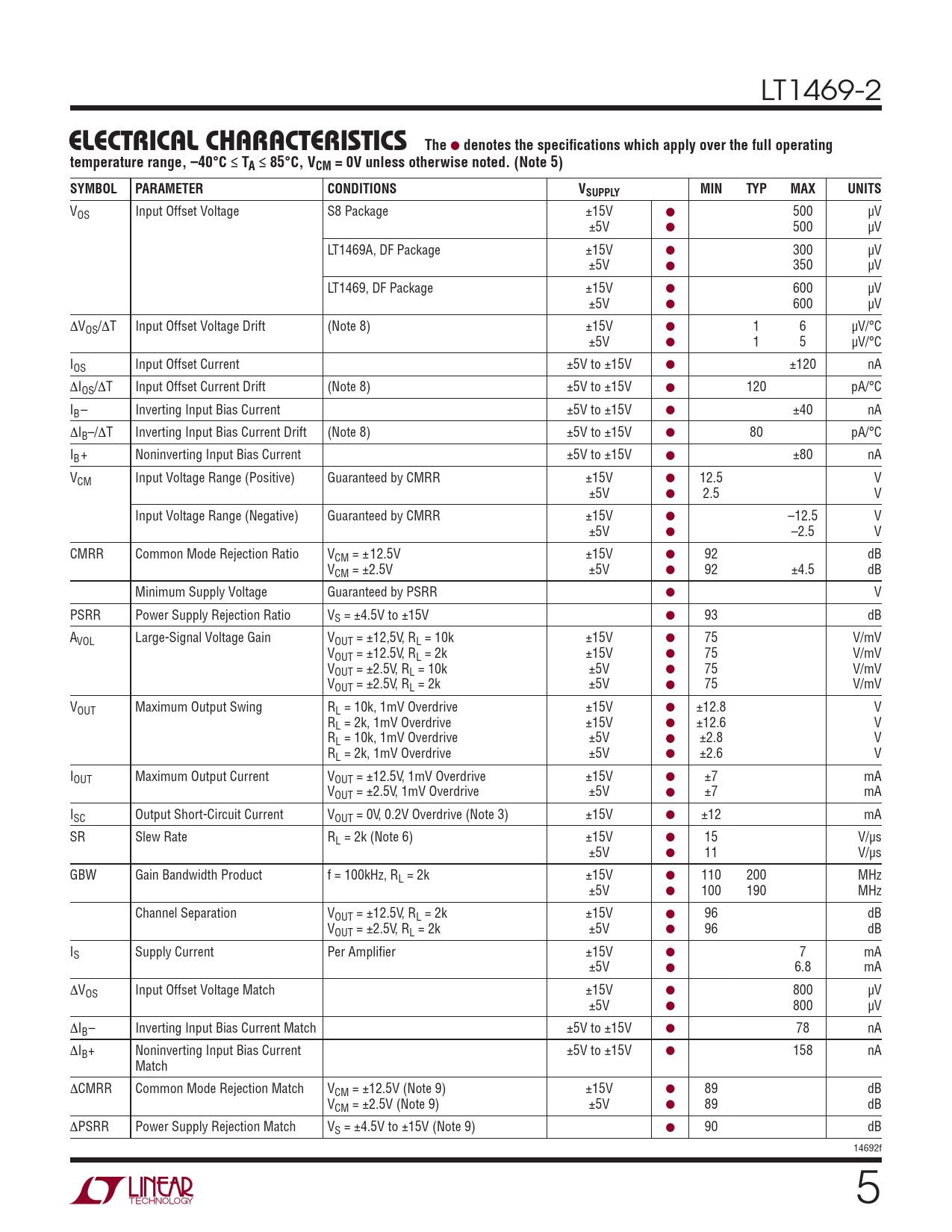

ELECTRICAL CHARACTERISTICS. The. denotes the specifi cations which apply over the full operating
该数据表的模型线
文件文字版本
LT1469-2
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, –40°C ≤ TA ≤ 85°C, VCM = 0V unless otherwise noted. (Note 5) SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
VOS Input Offset Voltage S8 Package ±15V ● 500 μV ±5V ● 500 μV LT1469A, DF Package ±15V ● 300 μV ±5V ● 350 μV LT1469, DF Package ±15V ● 600 μV ±5V ● 600 μV ΔVOS/ΔT Input Offset Voltage Drift (Note 8) ±15V ● 1 6 μV/°C ±5V ● 1 5 μV/°C IOS Input Offset Current ±5V to ±15V ● ±120 nA ΔIOS/ΔT Input Offset Current Drift (Note 8) ±5V to ±15V ● 120 pA/°C IB– Inverting Input Bias Current ±5V to ±15V ● ±40 nA ΔIB–/ΔT Inverting Input Bias Current Drift (Note 8) ±5V to ±15V ● 80 pA/°C IB+ Noninverting Input Bias Current ±5V to ±15V ● ±80 nA VCM Input Voltage Range (Positive) Guaranteed by CMRR ±15V ● 12.5 V ±5V ● 2.5 V Input Voltage Range (Negative) Guaranteed by CMRR ±15V ● –12.5 V ±5V ● –2.5 V CMRR Common Mode Rejection Ratio VCM = ±12.5V ±15V ● 92 dB VCM = ±2.5V ±5V ● 92 ±4.5 dB Minimum Supply Voltage Guaranteed by PSRR ● V PSRR Power Supply Rejection Ratio VS = ±4.5V to ±15V ● 93 dB AVOL Large-Signal Voltage Gain VOUT = ±12,5V, RL = 10k ±15V ● 75 V/mV VOUT = ±12.5V, RL = 2k ±15V ● 75 V/mV VOUT = ±2.5V, RL = 10k ±5V ● 75 V/mV VOUT = ±2.5V, RL = 2k ±5V ● 75 V/mV VOUT Maximum Output Swing RL = 10k, 1mV Overdrive ±15V ● ±12.8 V RL = 2k, 1mV Overdrive ±15V ● ±12.6 V RL = 10k, 1mV Overdrive ±5V ● ±2.8 V RL = 2k, 1mV Overdrive ±5V ● ±2.6 V IOUT Maximum Output Current VOUT = ±12.5V, 1mV Overdrive ±15V ● ±7 mA VOUT = ±2.5V, 1mV Overdrive ±5V ● ±7 mA ISC Output Short-Circuit Current VOUT = 0V, 0.2V Overdrive (Note 3) ±15V ● ±12 mA SR Slew Rate RL = 2k (Note 6) ±15V ● 15 V/μs ±5V ● 11 V/μs GBW Gain Bandwidth Product f = 100kHz, RL = 2k ±15V ● 110 200 MHz ±5V ● 100 190 MHz Channel Separation VOUT = ±12.5V, RL = 2k ±15V ● 96 dB VOUT = ±2.5V, RL = 2k ±5V ● 96 dB IS Supply Current Per Amplifi er ±15V ● 7 mA ±5V ● 6.8 mA ΔVOS Input Offset Voltage Match ±15V ● 800 μV ±5V ● 800 μV ΔIB– Inverting Input Bias Current Match ±5V to ±15V ● 78 nA ΔIB+ Noninverting Input Bias Current ±5V to ±15V ● 158 nA Match ΔCMRR Common Mode Rejection Match VCM = ±12.5V (Note 9) ±15V ● 89 dB VCM = ±2.5V (Note 9) ±5V ● 89 dB ΔPSRR Power Supply Rejection Match VS = ±4.5V to ±15V (Note 9) ● 90 dB 14692f 5
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, –40°C ≤ TA ≤ 85°C, VCM = 0V unless otherwise noted. (Note 5) SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
VOS Input Offset Voltage S8 Package ±15V ● 500 μV ±5V ● 500 μV LT1469A, DF Package ±15V ● 300 μV ±5V ● 350 μV LT1469, DF Package ±15V ● 600 μV ±5V ● 600 μV ΔVOS/ΔT Input Offset Voltage Drift (Note 8) ±15V ● 1 6 μV/°C ±5V ● 1 5 μV/°C IOS Input Offset Current ±5V to ±15V ● ±120 nA ΔIOS/ΔT Input Offset Current Drift (Note 8) ±5V to ±15V ● 120 pA/°C IB– Inverting Input Bias Current ±5V to ±15V ● ±40 nA ΔIB–/ΔT Inverting Input Bias Current Drift (Note 8) ±5V to ±15V ● 80 pA/°C IB+ Noninverting Input Bias Current ±5V to ±15V ● ±80 nA VCM Input Voltage Range (Positive) Guaranteed by CMRR ±15V ● 12.5 V ±5V ● 2.5 V Input Voltage Range (Negative) Guaranteed by CMRR ±15V ● –12.5 V ±5V ● –2.5 V CMRR Common Mode Rejection Ratio VCM = ±12.5V ±15V ● 92 dB VCM = ±2.5V ±5V ● 92 ±4.5 dB Minimum Supply Voltage Guaranteed by PSRR ● V PSRR Power Supply Rejection Ratio VS = ±4.5V to ±15V ● 93 dB AVOL Large-Signal Voltage Gain VOUT = ±12,5V, RL = 10k ±15V ● 75 V/mV VOUT = ±12.5V, RL = 2k ±15V ● 75 V/mV VOUT = ±2.5V, RL = 10k ±5V ● 75 V/mV VOUT = ±2.5V, RL = 2k ±5V ● 75 V/mV VOUT Maximum Output Swing RL = 10k, 1mV Overdrive ±15V ● ±12.8 V RL = 2k, 1mV Overdrive ±15V ● ±12.6 V RL = 10k, 1mV Overdrive ±5V ● ±2.8 V RL = 2k, 1mV Overdrive ±5V ● ±2.6 V IOUT Maximum Output Current VOUT = ±12.5V, 1mV Overdrive ±15V ● ±7 mA VOUT = ±2.5V, 1mV Overdrive ±5V ● ±7 mA ISC Output Short-Circuit Current VOUT = 0V, 0.2V Overdrive (Note 3) ±15V ● ±12 mA SR Slew Rate RL = 2k (Note 6) ±15V ● 15 V/μs ±5V ● 11 V/μs GBW Gain Bandwidth Product f = 100kHz, RL = 2k ±15V ● 110 200 MHz ±5V ● 100 190 MHz Channel Separation VOUT = ±12.5V, RL = 2k ±15V ● 96 dB VOUT = ±2.5V, RL = 2k ±5V ● 96 dB IS Supply Current Per Amplifi er ±15V ● 7 mA ±5V ● 6.8 mA ΔVOS Input Offset Voltage Match ±15V ● 800 μV ±5V ● 800 μV ΔIB– Inverting Input Bias Current Match ±5V to ±15V ● 78 nA ΔIB+ Noninverting Input Bias Current ±5V to ±15V ● 158 nA Match ΔCMRR Common Mode Rejection Match VCM = ±12.5V (Note 9) ±15V ● 89 dB VCM = ±2.5V (Note 9) ±5V ● 89 dB ΔPSRR Power Supply Rejection Match VS = ±4.5V to ±15V (Note 9) ● 90 dB 14692f 5
