Datasheet LT6202, LT6203, LT6204 (Analog Devices) - 7
| 制造商 | Analog Devices |
| 描述 | Quad 100MHz, Rail-to-Rail Input and Output, Ultralow 1.9nV√Hz Noise, Low Power Op Amps |
| 页数 / 页 | 28 / 7 — ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply … |
| 文件格式/大小 | PDF / 1.7 Mb |
| 文件语言 | 英语 |

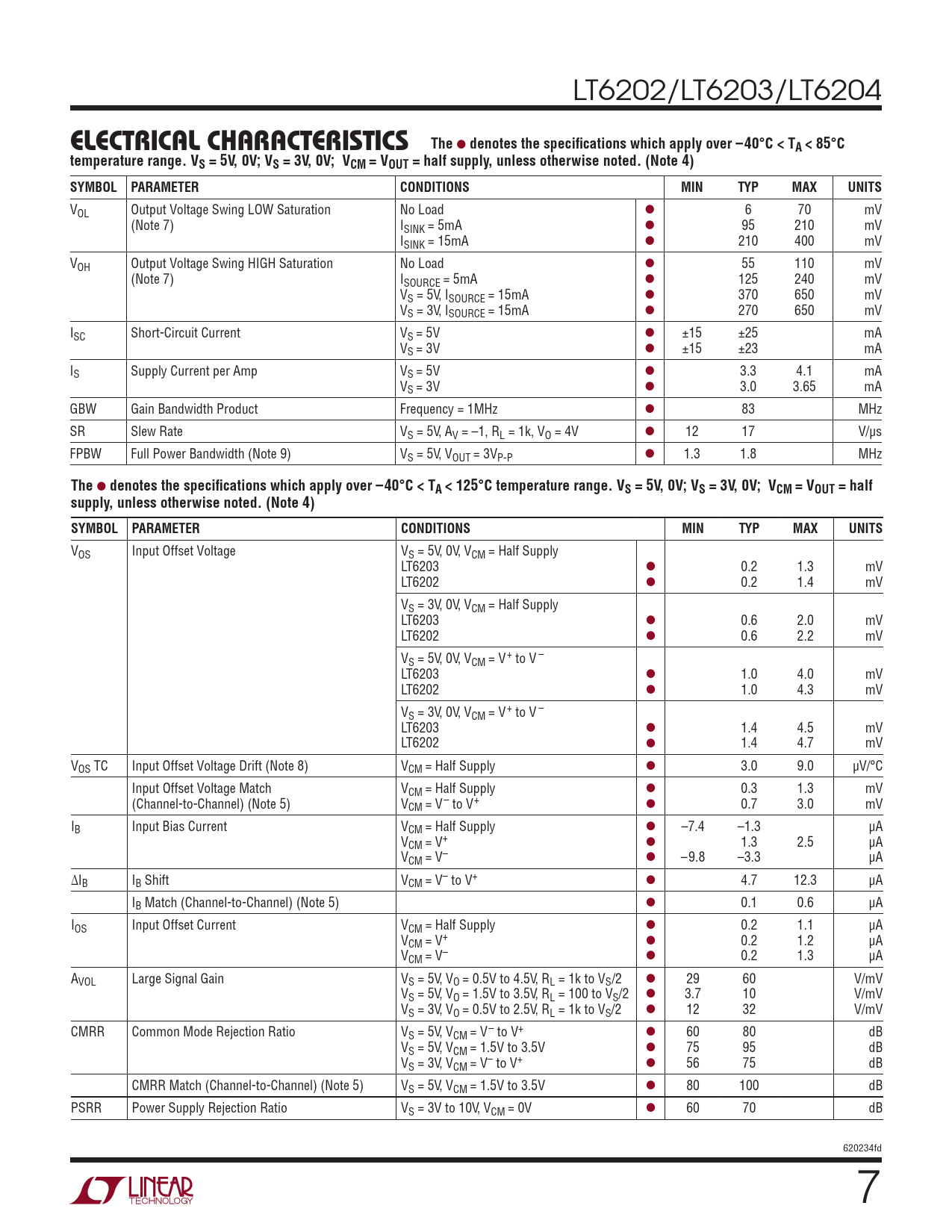

ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over –40°C < TA < 85°C
该数据表的模型线
- LT6202CS5#PBF LT6202CS5#TRMPBF LT6202CS5#TRPBF LT6202CS8#PBF LT6202CS8#TRPBF LT6202HS5#PBF LT6202HS5#TRMPBF LT6202HS5#TRPBF LT6202IS5#PBF LT6202IS5#TRMPBF LT6202IS5#TRPBF LT6202IS8#PBF LT6202IS8#TRPBF
文件文字版本
LT6202/LT6203/LT6204
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over –40°C < TA < 85°C temperature range. VS = 5V, 0V; VS = 3V, 0V; VCM = VOUT = half supply, unless otherwise noted. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOL Output Voltage Swing LOW Saturation No Load l 6 70 mV (Note 7) ISINK = 5mA l 95 210 mV ISINK = 15mA l 210 400 mV VOH Output Voltage Swing HIGH Saturation No Load l 55 110 mV (Note 7) ISOURCE = 5mA l 125 240 mV VS = 5V, ISOURCE = 15mA l 370 650 mV VS = 3V, ISOURCE = 15mA l 270 650 mV ISC Short-Circuit Current VS = 5V l ±15 ±25 mA VS = 3V l ±15 ±23 mA IS Supply Current per Amp VS = 5V l 3.3 4.1 mA VS = 3V l 3.0 3.65 mA GBW Gain Bandwidth Product Frequency = 1MHz l 83 MHz SR Slew Rate VS = 5V, AV = –1, RL = 1k, VO = 4V l 12 17 V/µs FPBW Full Power Bandwidth (Note 9) VS = 5V, VOUT = 3VP-P l 1.3 1.8 MHz
The
l
denotes the specifications which apply over –40°C < TA < 125°C temperature range. VS = 5V, 0V; VS = 3V, 0V; VCM = VOUT = half supply, unless otherwise noted. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VS = 5V, 0V, VCM = Half Supply LT6203 l 0.2 1.3 mV LT6202 l 0.2 1.4 mV VS = 3V, 0V, VCM = Half Supply LT6203 l 0.6 2.0 mV LT6202 l 0.6 2.2 mV VS = 5V, 0V, VCM = V+ to V – LT6203 l 1.0 4.0 mV LT6202 l 1.0 4.3 mV VS = 3V, 0V, VCM = V+ to V – LT6203 l 1.4 4.5 mV LT6202 l 1.4 4.7 mV VOS TC Input Offset Voltage Drift (Note 8) VCM = Half Supply l 3.0 9.0 µV/°C Input Offset Voltage Match VCM = Half Supply l 0.3 1.3 mV (Channel-to-Channel) (Note 5) VCM = V– to V+ l 0.7 3.0 mV IB Input Bias Current VCM = Half Supply l –7.4 –1.3 µA VCM = V+ l 1.3 2.5 µA VCM = V– l –9.8 –3.3 µA ∆IB IB Shift VCM = V– to V+ l 4.7 12.3 µA IB Match (Channel-to-Channel) (Note 5) l 0.1 0.6 µA IOS Input Offset Current VCM = Half Supply l 0.2 1.1 µA VCM = V+ l 0.2 1.2 µA VCM = V– l 0.2 1.3 µA AVOL Large Signal Gain VS = 5V, VO = 0.5V to 4.5V, RL = 1k to VS/2 l 29 60 V/mV VS = 5V, VO = 1.5V to 3.5V, RL = 100 to VS/2 l 3.7 10 V/mV VS = 3V, VO = 0.5V to 2.5V, RL = 1k to VS/2 l 12 32 V/mV CMRR Common Mode Rejection Ratio VS = 5V, VCM = V– to V+ l 60 80 dB VS = 5V, VCM = 1.5V to 3.5V l 75 95 dB VS = 3V, VCM = V – to V+ l 56 75 dB CMRR Match (Channel-to-Channel) (Note 5) VS = 5V, VCM = 1.5V to 3.5V l 80 100 dB PSRR Power Supply Rejection Ratio VS = 3V to 10V, VCM = 0V l 60 70 dB 620234fd 7 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over –40°C < TA < 85°C temperature range. VS = 5V, 0V; VS = 3V, 0V; VCM = VOUT = half supply, unless otherwise noted. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOL Output Voltage Swing LOW Saturation No Load l 6 70 mV (Note 7) ISINK = 5mA l 95 210 mV ISINK = 15mA l 210 400 mV VOH Output Voltage Swing HIGH Saturation No Load l 55 110 mV (Note 7) ISOURCE = 5mA l 125 240 mV VS = 5V, ISOURCE = 15mA l 370 650 mV VS = 3V, ISOURCE = 15mA l 270 650 mV ISC Short-Circuit Current VS = 5V l ±15 ±25 mA VS = 3V l ±15 ±23 mA IS Supply Current per Amp VS = 5V l 3.3 4.1 mA VS = 3V l 3.0 3.65 mA GBW Gain Bandwidth Product Frequency = 1MHz l 83 MHz SR Slew Rate VS = 5V, AV = –1, RL = 1k, VO = 4V l 12 17 V/µs FPBW Full Power Bandwidth (Note 9) VS = 5V, VOUT = 3VP-P l 1.3 1.8 MHz
The
l
denotes the specifications which apply over –40°C < TA < 125°C temperature range. VS = 5V, 0V; VS = 3V, 0V; VCM = VOUT = half supply, unless otherwise noted. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VS = 5V, 0V, VCM = Half Supply LT6203 l 0.2 1.3 mV LT6202 l 0.2 1.4 mV VS = 3V, 0V, VCM = Half Supply LT6203 l 0.6 2.0 mV LT6202 l 0.6 2.2 mV VS = 5V, 0V, VCM = V+ to V – LT6203 l 1.0 4.0 mV LT6202 l 1.0 4.3 mV VS = 3V, 0V, VCM = V+ to V – LT6203 l 1.4 4.5 mV LT6202 l 1.4 4.7 mV VOS TC Input Offset Voltage Drift (Note 8) VCM = Half Supply l 3.0 9.0 µV/°C Input Offset Voltage Match VCM = Half Supply l 0.3 1.3 mV (Channel-to-Channel) (Note 5) VCM = V– to V+ l 0.7 3.0 mV IB Input Bias Current VCM = Half Supply l –7.4 –1.3 µA VCM = V+ l 1.3 2.5 µA VCM = V– l –9.8 –3.3 µA ∆IB IB Shift VCM = V– to V+ l 4.7 12.3 µA IB Match (Channel-to-Channel) (Note 5) l 0.1 0.6 µA IOS Input Offset Current VCM = Half Supply l 0.2 1.1 µA VCM = V+ l 0.2 1.2 µA VCM = V– l 0.2 1.3 µA AVOL Large Signal Gain VS = 5V, VO = 0.5V to 4.5V, RL = 1k to VS/2 l 29 60 V/mV VS = 5V, VO = 1.5V to 3.5V, RL = 100 to VS/2 l 3.7 10 V/mV VS = 3V, VO = 0.5V to 2.5V, RL = 1k to VS/2 l 12 32 V/mV CMRR Common Mode Rejection Ratio VS = 5V, VCM = V– to V+ l 60 80 dB VS = 5V, VCM = 1.5V to 3.5V l 75 95 dB VS = 3V, VCM = V – to V+ l 56 75 dB CMRR Match (Channel-to-Channel) (Note 5) VS = 5V, VCM = 1.5V to 3.5V l 80 100 dB PSRR Power Supply Rejection Ratio VS = 3V to 10V, VCM = 0V l 60 70 dB 620234fd 7 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
