DatasheetLT6200, LT6200-5 LT6200-10, LT6201 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | 165MHz, Rail-to-Rail Input and Output, 0.95nV/√Hz Low Noise, Op Amp Family |
| 页数 / 页 | 26 / 5 — elecTrical characTerisTics. The. denotes the specifications which apply … |
| 文件格式/大小 | PDF / 548 Kb |
| 文件语言 | 英语 |
elecTrical characTerisTics. The. denotes the specifications which apply over 0°C < TA < 70°C
该数据表的模型线
- LT6200CS6#PBF LT6200CS6#TRMPBF LT6200CS6#TRPBF LT6200CS6-10#PBF LT6200CS6-10#TRMPBF LT6200CS6-10#TRPBF LT6200CS6-5#PBF LT6200CS6-5#TRMPBF LT6200CS6-5#TRPBF LT6200CS8#PBF LT6200CS8#TRPBF LT6200CS8-10#PBF LT6200CS8-10#TRPBF LT6200CS8-5#PBF LT6200CS8-5#TRPBF LT6200IS6#PBF LT6200IS6#TRMPBF LT6200IS6#TRPBF LT6200IS6-10#PBF LT6200IS6-10#TRMPBF LT6200IS6-10#TRPBF LT6200IS6-5#PBF LT6200IS6-5#TRMPBF LT6200IS6-5#TRPBF LT6200IS8#PBF LT6200IS8#TRPBF LT6200IS8-10#PBF LT6200IS8-10#TRPBF LT6200IS8-5#PBF LT6200IS8-5#TRPBF
文件文字版本
LT6200/LT6200-5 LT6200-10/LT6201
elecTrical characTerisTics The
●

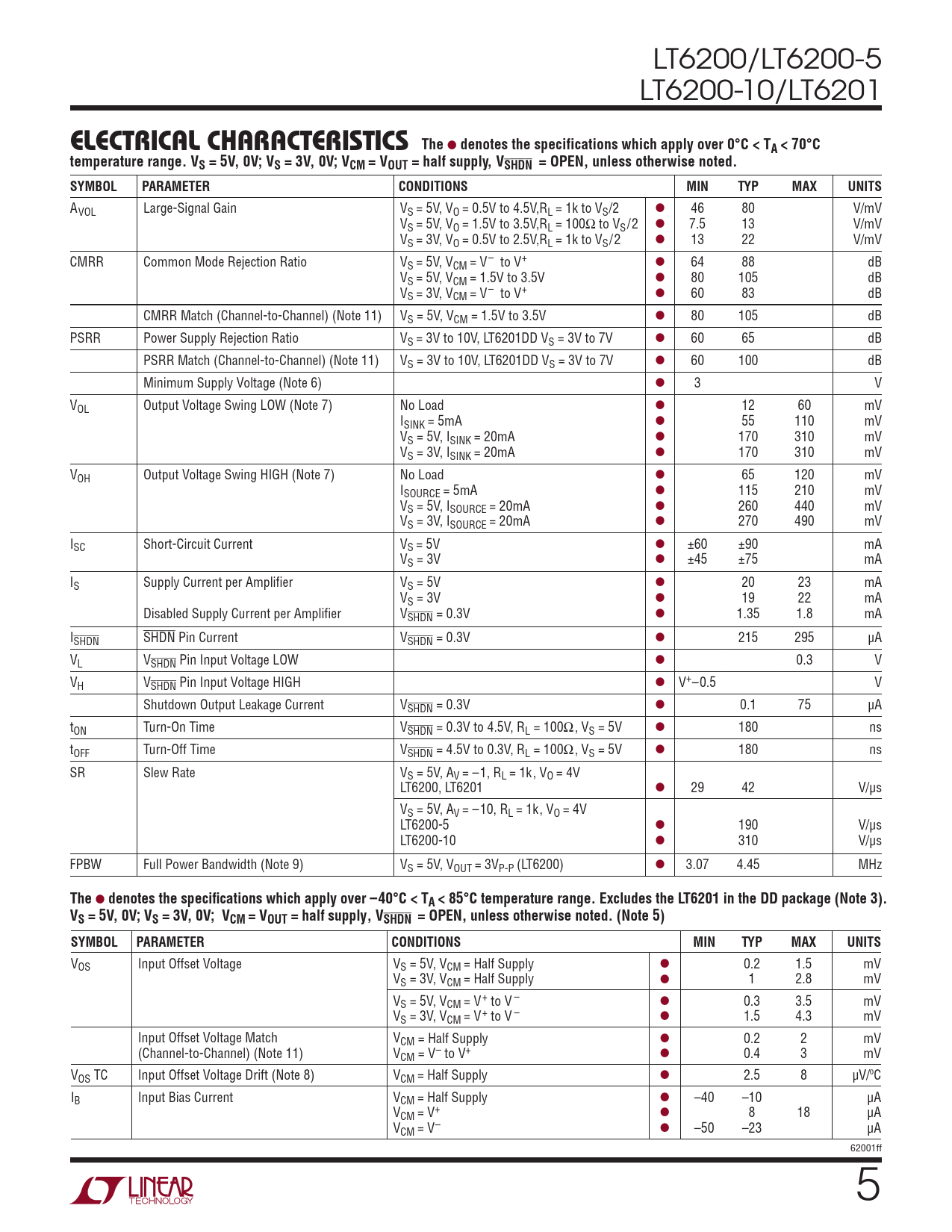

denotes the specifications which apply over 0°C < TA < 70°C temperature range. VS = 5V, 0V; VS = 3V, 0V; VCM = VOUT = half supply, VSHDN = OPEN, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
AVOL Large-Signal Gain VS = 5V, VO = 0.5V to 4.5V,RL = 1k to VS/2 l 46 80 V/mV VS = 5V, VO = 1.5V to 3.5V,RL = 100Ω to VS/2 l 7.5 13 V/mV VS = 3V, VO = 0.5V to 2.5V,RL = 1k to VS/2 l 13 22 V/mV CMRR Common Mode Rejection Ratio VS = 5V, VCM = V– to V+ l 64 88 dB VS = 5V, VCM = 1.5V to 3.5V l 80 105 dB VS = 3V, VCM = V– to V+ l 60 83 dB CMRR Match (Channel-to-Channel) (Note 11) VS = 5V, VCM = 1.5V to 3.5V l 80 105 dB PSRR Power Supply Rejection Ratio VS = 3V to 10V, LT6201DD VS = 3V to 7V l 60 65 dB PSRR Match (Channel-to-Channel) (Note 11) VS = 3V to 10V, LT6201DD VS = 3V to 7V l 60 100 dB Minimum Supply Voltage (Note 6) l 3 V VOL Output Voltage Swing LOW (Note 7) No Load l 12 60 mV ISINK = 5mA l 55 110 mV VS = 5V, ISINK = 20mA l 170 310 mV VS = 3V, ISINK = 20mA l 170 310 mV VOH Output Voltage Swing HIGH (Note 7) No Load l 65 120 mV ISOURCE = 5mA l 115 210 mV VS = 5V, ISOURCE = 20mA l 260 440 mV VS = 3V, ISOURCE = 20mA l 270 490 mV ISC Short-Circuit Current VS = 5V l ±60 ±90 mA VS = 3V l ±45 ±75 mA IS Supply Current per Amplifier VS = 5V l 20 23 mA VS = 3V l 19 22 mA Disabled Supply Current per Amplifier VSHDN = 0.3V l 1.35 1.8 mA ISHDN SHDN Pin Current VSHDN = 0.3V l 215 295 µA VL VSHDN Pin Input Voltage LOW l 0.3 V VH VSHDN Pin Input Voltage HIGH l V+–0.5 V Shutdown Output Leakage Current VSHDN = 0.3V l 0.1 75 µA tON Turn-On Time VSHDN = 0.3V to 4.5V, RL = 100Ω, VS = 5V l 180 ns tOFF Turn-Off Time VSHDN = 4.5V to 0.3V, RL = 100Ω, VS = 5V l 180 ns SR Slew Rate VS = 5V, AV = –1, RL = 1k, VO = 4V LT6200, LT6201 l 29 42 V/µs VS = 5V, AV = –10, RL = 1k, VO = 4V LT6200-5 l 190 V/µs LT6200-10 l 310 V/µs FPBW Full Power Bandwidth (Note 9) VS = 5V, VOUT = 3VP-P (LT6200) l 3.07 4.45 MHz
The
●
denotes the specifications which apply over –40°C < TA < 85°C temperature range. Excludes the LT6201 in the DD package (Note 3). VS = 5V, 0V; VS = 3V, 0V; VCM = VOUT = half supply, VSHDN = OPEN, unless otherwise noted. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VS = 5V, VCM = Half Supply l 0.2 1.5 mV VS = 3V, VCM = Half Supply l 1 2.8 mV VS = 5V, VCM = V+ to V – l 0.3 3.5 mV VS = 3V, VCM = V+ to V – l 1.5 4.3 mV Input Offset Voltage Match VCM = Half Supply l 0.2 2 mV (Channel-to-Channel) (Note 11) VCM = V– to V+ l 0.4 3 mV VOS TC Input Offset Voltage Drift (Note 8) VCM = Half Supply l 2.5 8 µV/ºC IB Input Bias Current VCM = Half Supply l –40 –10 µA VCM = V+ l 8 18 µA VCM = V– l –50 –23 µA 62001ff 5 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Package Description Revision History Typical Application Related Parts
elecTrical characTerisTics The
●
denotes the specifications which apply over 0°C < TA < 70°C temperature range. VS = 5V, 0V; VS = 3V, 0V; VCM = VOUT = half supply, VSHDN = OPEN, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
AVOL Large-Signal Gain VS = 5V, VO = 0.5V to 4.5V,RL = 1k to VS/2 l 46 80 V/mV VS = 5V, VO = 1.5V to 3.5V,RL = 100Ω to VS/2 l 7.5 13 V/mV VS = 3V, VO = 0.5V to 2.5V,RL = 1k to VS/2 l 13 22 V/mV CMRR Common Mode Rejection Ratio VS = 5V, VCM = V– to V+ l 64 88 dB VS = 5V, VCM = 1.5V to 3.5V l 80 105 dB VS = 3V, VCM = V– to V+ l 60 83 dB CMRR Match (Channel-to-Channel) (Note 11) VS = 5V, VCM = 1.5V to 3.5V l 80 105 dB PSRR Power Supply Rejection Ratio VS = 3V to 10V, LT6201DD VS = 3V to 7V l 60 65 dB PSRR Match (Channel-to-Channel) (Note 11) VS = 3V to 10V, LT6201DD VS = 3V to 7V l 60 100 dB Minimum Supply Voltage (Note 6) l 3 V VOL Output Voltage Swing LOW (Note 7) No Load l 12 60 mV ISINK = 5mA l 55 110 mV VS = 5V, ISINK = 20mA l 170 310 mV VS = 3V, ISINK = 20mA l 170 310 mV VOH Output Voltage Swing HIGH (Note 7) No Load l 65 120 mV ISOURCE = 5mA l 115 210 mV VS = 5V, ISOURCE = 20mA l 260 440 mV VS = 3V, ISOURCE = 20mA l 270 490 mV ISC Short-Circuit Current VS = 5V l ±60 ±90 mA VS = 3V l ±45 ±75 mA IS Supply Current per Amplifier VS = 5V l 20 23 mA VS = 3V l 19 22 mA Disabled Supply Current per Amplifier VSHDN = 0.3V l 1.35 1.8 mA ISHDN SHDN Pin Current VSHDN = 0.3V l 215 295 µA VL VSHDN Pin Input Voltage LOW l 0.3 V VH VSHDN Pin Input Voltage HIGH l V+–0.5 V Shutdown Output Leakage Current VSHDN = 0.3V l 0.1 75 µA tON Turn-On Time VSHDN = 0.3V to 4.5V, RL = 100Ω, VS = 5V l 180 ns tOFF Turn-Off Time VSHDN = 4.5V to 0.3V, RL = 100Ω, VS = 5V l 180 ns SR Slew Rate VS = 5V, AV = –1, RL = 1k, VO = 4V LT6200, LT6201 l 29 42 V/µs VS = 5V, AV = –10, RL = 1k, VO = 4V LT6200-5 l 190 V/µs LT6200-10 l 310 V/µs FPBW Full Power Bandwidth (Note 9) VS = 5V, VOUT = 3VP-P (LT6200) l 3.07 4.45 MHz
The
●
denotes the specifications which apply over –40°C < TA < 85°C temperature range. Excludes the LT6201 in the DD package (Note 3). VS = 5V, 0V; VS = 3V, 0V; VCM = VOUT = half supply, VSHDN = OPEN, unless otherwise noted. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VS = 5V, VCM = Half Supply l 0.2 1.5 mV VS = 3V, VCM = Half Supply l 1 2.8 mV VS = 5V, VCM = V+ to V – l 0.3 3.5 mV VS = 3V, VCM = V+ to V – l 1.5 4.3 mV Input Offset Voltage Match VCM = Half Supply l 0.2 2 mV (Channel-to-Channel) (Note 11) VCM = V– to V+ l 0.4 3 mV VOS TC Input Offset Voltage Drift (Note 8) VCM = Half Supply l 2.5 8 µV/ºC IB Input Bias Current VCM = Half Supply l –40 –10 µA VCM = V+ l 8 18 µA VCM = V– l –50 –23 µA 62001ff 5 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Package Description Revision History Typical Application Related Parts
