Datasheet LT1364, LT1365 (Analog Devices) - 3
| 制造商 | Analog Devices |
| 描述 | Dual and Quad 70MHz, 1000V/µs Op Amps |
| 页数 / 页 | 12 / 3 — ELECTRICAL CHARACTERISTICS TA = 25. C, VCM = 0V unless otherwise noted. … |
| 文件格式/大小 | PDF / 230 Kb |
| 文件语言 | 英语 |

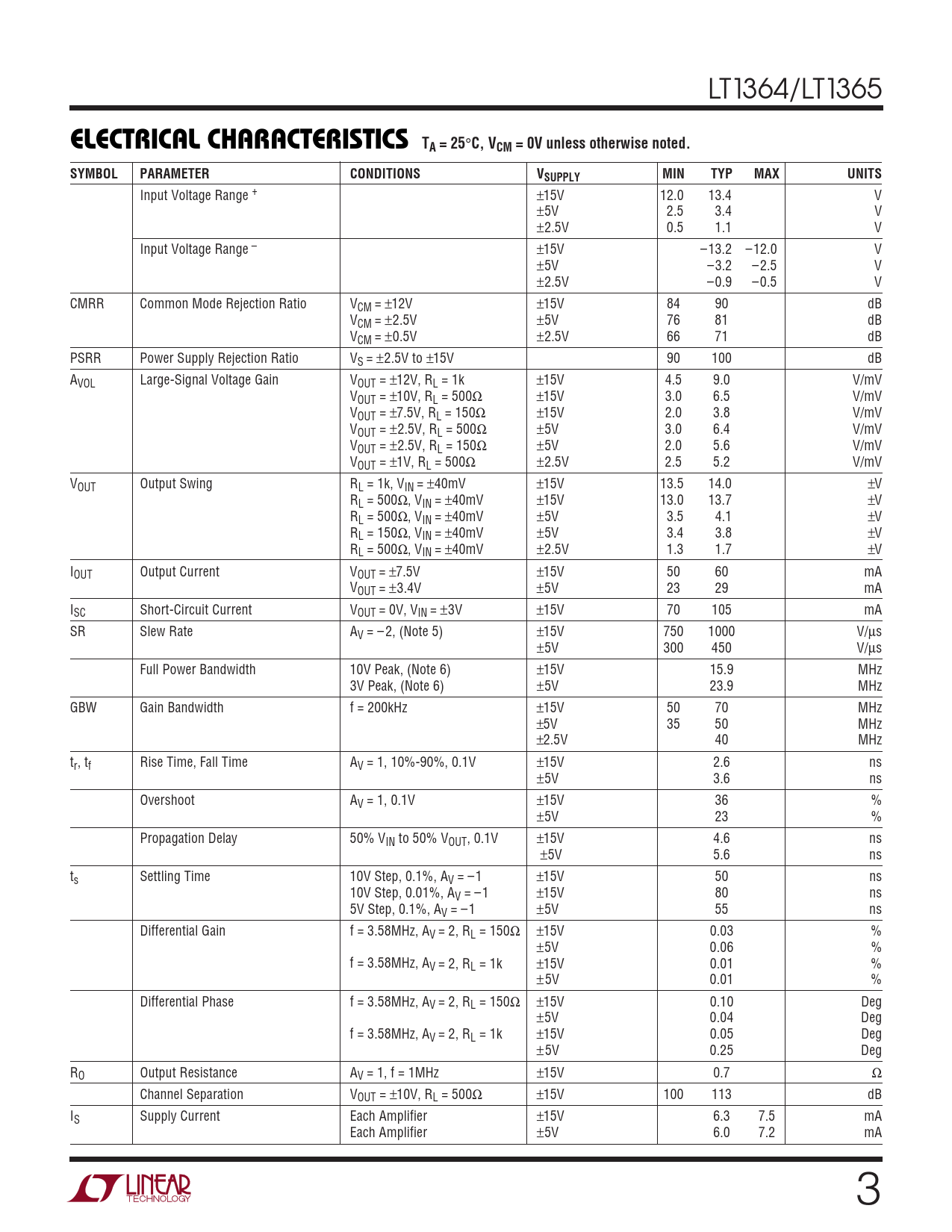

ELECTRICAL CHARACTERISTICS TA = 25. C, VCM = 0V unless otherwise noted. SYMBOL. PARAMETER. CONDITIONS. VSUPPLY. MIN. TYP. MAX. UNITS
该数据表的模型线
文件文字版本
LT1364/LT1365
ELECTRICAL CHARACTERISTICS TA = 25
°
C, VCM = 0V unless otherwise noted. SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
Input Voltage Range + ±15V 12.0 13.4 V ±5V 2.5 3.4 V ±2.5V 0.5 1.1 V Input Voltage Range – ±15V –13.2 –12.0 V ±5V –3.2 –2.5 V ±2.5V –0.9 –0.5 V CMRR Common Mode Rejection Ratio VCM = ±12V ±15V 84 90 dB VCM = ±2.5V ±5V 76 81 dB VCM = ±0.5V ±2.5V 66 71 dB PSRR Power Supply Rejection Ratio VS = ±2.5V to ±15V 90 100 dB AVOL Large-Signal Voltage Gain VOUT = ±12V, RL = 1k ±15V 4.5 9.0 V/mV VOUT = ±10V, RL = 500Ω ±15V 3.0 6.5 V/mV VOUT = ±7.5V, RL = 150Ω ±15V 2.0 3.8 V/mV VOUT = ±2.5V, RL = 500Ω ±5V 3.0 6.4 V/mV VOUT = ±2.5V, RL = 150Ω ±5V 2.0 5.6 V/mV VOUT = ±1V, RL = 500Ω ±2.5V 2.5 5.2 V/mV VOUT Output Swing RL = 1k, VIN = ±40mV ±15V 13.5 14.0 ±V RL = 500Ω, VIN = ±40mV ±15V 13.0 13.7 ±V RL = 500Ω, VIN = ±40mV ±5V 3.5 4.1 ±V RL = 150Ω, VIN = ±40mV ±5V 3.4 3.8 ±V RL = 500Ω, VIN = ±40mV ±2.5V 1.3 1.7 ±V IOUT Output Current VOUT = ±7.5V ±15V 50 60 mA VOUT = ±3.4V ±5V 23 29 mA ISC Short-Circuit Current VOUT = 0V, VIN = ±3V ±15V 70 105 mA SR Slew Rate AV = – 2, (Note 5) ±15V 750 1000 V/µs ±5V 300 450 V/µs Full Power Bandwidth 10V Peak, (Note 6) ±15V 15.9 MHz 3V Peak, (Note 6) ±5V 23.9 MHz GBW Gain Bandwidth f = 200kHz ±15V 50 70 MHz ±5V 35 50 MHz ±2.5V 40 MHz tr, tf Rise Time, Fall Time AV = 1, 10%-90%, 0.1V ±15V 2.6 ns ±5V 3.6 ns Overshoot AV = 1, 0.1V ±15V 36 % ±5V 23 % Propagation Delay 50% VIN to 50% VOUT, 0.1V ±15V 4.6 ns ±5V 5.6 ns ts Settling Time 10V Step, 0.1%, AV = –1 ±15V 50 ns 10V Step, 0.01%, AV = –1 ±15V 80 ns 5V Step, 0.1%, AV = –1 ±5V 55 ns Differential Gain f = 3.58MHz, AV = 2, RL = 150Ω ±15V 0.03 % ±5V 0.06 % f = 3.58MHz, AV = 2, RL = 1k ±15V 0.01 % ±5V 0.01 % Differential Phase f = 3.58MHz, AV = 2, RL = 150Ω ±15V 0.10 Deg ±5V 0.04 Deg f = 3.58MHz, AV = 2, RL = 1k ±15V 0.05 Deg ±5V 0.25 Deg RO Output Resistance AV = 1, f = 1MHz ±15V 0.7 Ω Channel Separation VOUT = ±10V, RL = 500Ω ±15V 100 113 dB IS Supply Current Each Amplifier ±15V 6.3 7.5 mA Each Amplifier ±5V 6.0 7.2 mA 3
ELECTRICAL CHARACTERISTICS TA = 25
°
C, VCM = 0V unless otherwise noted. SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
Input Voltage Range + ±15V 12.0 13.4 V ±5V 2.5 3.4 V ±2.5V 0.5 1.1 V Input Voltage Range – ±15V –13.2 –12.0 V ±5V –3.2 –2.5 V ±2.5V –0.9 –0.5 V CMRR Common Mode Rejection Ratio VCM = ±12V ±15V 84 90 dB VCM = ±2.5V ±5V 76 81 dB VCM = ±0.5V ±2.5V 66 71 dB PSRR Power Supply Rejection Ratio VS = ±2.5V to ±15V 90 100 dB AVOL Large-Signal Voltage Gain VOUT = ±12V, RL = 1k ±15V 4.5 9.0 V/mV VOUT = ±10V, RL = 500Ω ±15V 3.0 6.5 V/mV VOUT = ±7.5V, RL = 150Ω ±15V 2.0 3.8 V/mV VOUT = ±2.5V, RL = 500Ω ±5V 3.0 6.4 V/mV VOUT = ±2.5V, RL = 150Ω ±5V 2.0 5.6 V/mV VOUT = ±1V, RL = 500Ω ±2.5V 2.5 5.2 V/mV VOUT Output Swing RL = 1k, VIN = ±40mV ±15V 13.5 14.0 ±V RL = 500Ω, VIN = ±40mV ±15V 13.0 13.7 ±V RL = 500Ω, VIN = ±40mV ±5V 3.5 4.1 ±V RL = 150Ω, VIN = ±40mV ±5V 3.4 3.8 ±V RL = 500Ω, VIN = ±40mV ±2.5V 1.3 1.7 ±V IOUT Output Current VOUT = ±7.5V ±15V 50 60 mA VOUT = ±3.4V ±5V 23 29 mA ISC Short-Circuit Current VOUT = 0V, VIN = ±3V ±15V 70 105 mA SR Slew Rate AV = – 2, (Note 5) ±15V 750 1000 V/µs ±5V 300 450 V/µs Full Power Bandwidth 10V Peak, (Note 6) ±15V 15.9 MHz 3V Peak, (Note 6) ±5V 23.9 MHz GBW Gain Bandwidth f = 200kHz ±15V 50 70 MHz ±5V 35 50 MHz ±2.5V 40 MHz tr, tf Rise Time, Fall Time AV = 1, 10%-90%, 0.1V ±15V 2.6 ns ±5V 3.6 ns Overshoot AV = 1, 0.1V ±15V 36 % ±5V 23 % Propagation Delay 50% VIN to 50% VOUT, 0.1V ±15V 4.6 ns ±5V 5.6 ns ts Settling Time 10V Step, 0.1%, AV = –1 ±15V 50 ns 10V Step, 0.01%, AV = –1 ±15V 80 ns 5V Step, 0.1%, AV = –1 ±5V 55 ns Differential Gain f = 3.58MHz, AV = 2, RL = 150Ω ±15V 0.03 % ±5V 0.06 % f = 3.58MHz, AV = 2, RL = 1k ±15V 0.01 % ±5V 0.01 % Differential Phase f = 3.58MHz, AV = 2, RL = 150Ω ±15V 0.10 Deg ±5V 0.04 Deg f = 3.58MHz, AV = 2, RL = 1k ±15V 0.05 Deg ±5V 0.25 Deg RO Output Resistance AV = 1, f = 1MHz ±15V 0.7 Ω Channel Separation VOUT = ±10V, RL = 500Ω ±15V 100 113 dB IS Supply Current Each Amplifier ±15V 6.3 7.5 mA Each Amplifier ±5V 6.0 7.2 mA 3
