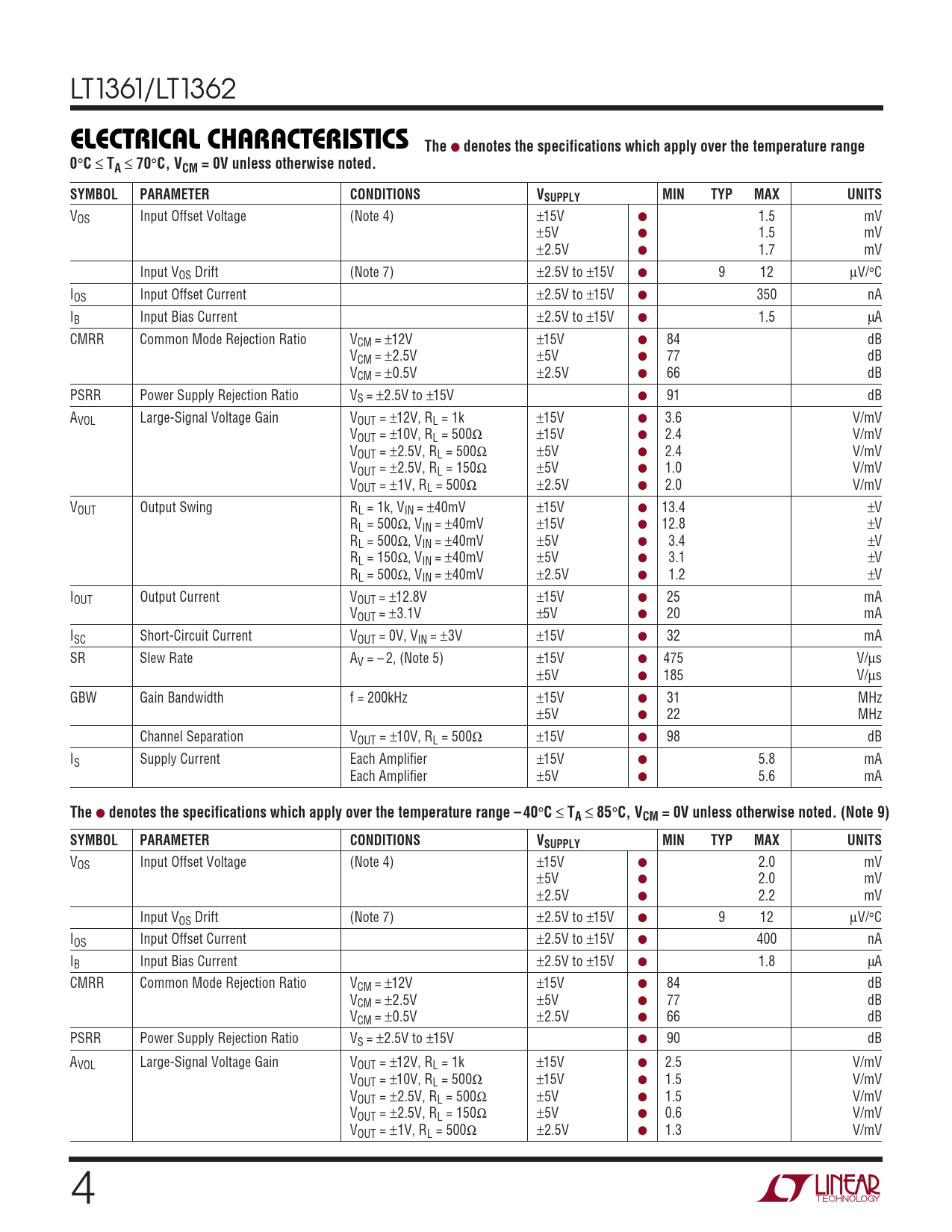

LT1361/LT1362
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the temperature range 0
°
C
≤
TA
≤
70
°
C, VCM = 0V unless otherwise noted. SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
VOS Input Offset Voltage (Note 4) ±15V ● 1.5 mV ±5V ● 1.5 mV ±2.5V ● 1.7 mV Input VOS Drift (Note 7) ±2.5V to ±15V ● 9 12 µV/°C IOS Input Offset Current ±2.5V to ±15V ● 350 nA IB Input Bias Current ±2.5V to ±15V ● 1.5 µA CMRR Common Mode Rejection Ratio VCM = ±12V ±15V ● 84 dB VCM = ±2.5V ±5V ● 77 dB VCM = ±0.5V ±2.5V ● 66 dB PSRR Power Supply Rejection Ratio VS = ±2.5V to ±15V ● 91 dB AVOL Large-Signal Voltage Gain VOUT = ±12V, RL = 1k ±15V ● 3.6 V/mV VOUT = ±10V, RL = 500Ω ±15V ● 2.4 V/mV VOUT = ±2.5V, RL = 500Ω ±5V ● 2.4 V/mV VOUT = ±2.5V, RL = 150Ω ±5V ● 1.0 V/mV VOUT = ±1V, RL = 500Ω ±2.5V ● 2.0 V/mV VOUT Output Swing RL = 1k, VIN = ±40mV ±15V ● 13.4 ±V RL = 500Ω, VIN = ±40mV ±15V ● 12.8 ±V RL = 500Ω, VIN = ±40mV ±5V ● 3.4 ±V RL = 150Ω, VIN = ±40mV ±5V ● 3.1 ±V RL = 500Ω, VIN = ±40mV ±2.5V ● 1.2 ±V IOUT Output Current VOUT = ±12.8V ±15V ● 25 mA VOUT = ±3.1V ±5V ● 20 mA ISC Short-Circuit Current VOUT = 0V, VIN = ±3V ±15V ● 32 mA SR Slew Rate AV = – 2, (Note 5) ±15V ● 475 V/µs ±5V ● 185 V/µs GBW Gain Bandwidth f = 200kHz ±15V ● 31 MHz ±5V ● 22 MHz Channel Separation VOUT = ±10V, RL = 500Ω ±15V ● 98 dB IS Supply Current Each Amplifier ±15V ● 5.8 mA Each Amplifier ±5V ● 5.6 mA
The
●
denotes the specifications which apply over the temperature range – 40
°
C
≤
TA
≤
85
°
C, VCM = 0V unless otherwise noted. (Note 9) SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
VOS Input Offset Voltage (Note 4) ±15V ● 2.0 mV ±5V ● 2.0 mV ±2.5V ● 2.2 mV Input VOS Drift (Note 7) ±2.5V to ±15V ● 9 12 µV/°C IOS Input Offset Current ±2.5V to ±15V ● 400 nA IB Input Bias Current ±2.5V to ±15V ● 1.8 µA CMRR Common Mode Rejection Ratio VCM = ±12V ±15V ● 84 dB VCM = ±2.5V ±5V ● 77 dB VCM = ±0.5V ±2.5V ● 66 dB PSRR Power Supply Rejection Ratio VS = ±2.5V to ±15V ● 90 dB AVOL Large-Signal Voltage Gain VOUT = ±12V, RL = 1k ±15V ● 2.5 V/mV VOUT = ±10V, RL = 500Ω ±15V ● 1.5 V/mV VOUT = ±2.5V, RL = 500Ω ±5V ● 1.5 V/mV VOUT = ±2.5V, RL = 150Ω ±5V ● 0.6 V/mV VOUT = ±1V, RL = 500Ω ±2.5V ● 1.3 V/mV 4
