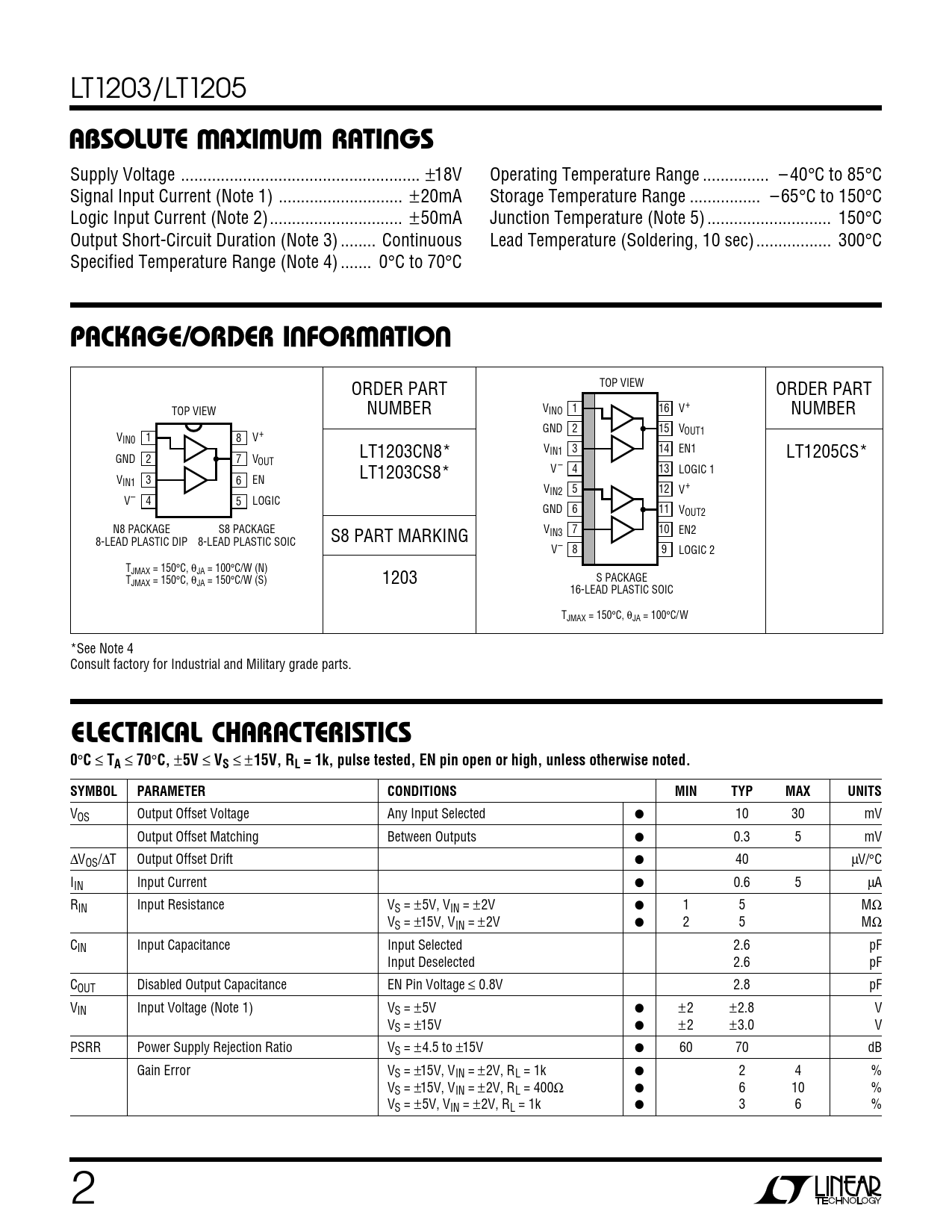

LT1203/LT1205
W W W U ABSOLUTE AXI U A R TI GS
Supply Voltage .. ±18V Operating Temperature Range ... – 40°C to 85°C Signal Input Current (Note 1) .. ±20mA Storage Temperature Range .. – 65°C to 150°C Logic Input Current (Note 2).. ±50mA Junction Temperature (Note 5) .. 150°C Output Short-Circuit Duration (Note 3) .. Continuous Lead Temperature (Soldering, 10 sec) ... 300°C Specified Temperature Range (Note 4) ... 0°C to 70°C
U W U PACKAGE/ORDER I FOR ATIO
ORDER PART TOP VIEW ORDER PART TOP VIEW NUMBER V 1 16 INO V+ NUMBER GND 2 15 VOUT1 V 1 IN0 8 V+ LT1203CN8* V 3 14 IN1 EN1 LT1205CS* GND 2 7 VOUT LT1203CS8* V – 4 13 LOGIC 1 V 3 IN1 6 EN V 5 12 IN2 V+ V– 4 5 LOGIC GND 6 11 VOUT2 N8 PACKAGE S8 PACKAGE S8 PART MARKING V 7 10 IN3 EN2 8-LEAD PLASTIC DIP 8-LEAD PLASTIC SOIC V– 8 9 LOGIC 2 TJMAX = 150°C, θJA = 100°C/W (N) TJMAX = 150°C, θJA = 150°C/W (S) 1203 S PACKAGE 16-LEAD PLASTIC SOIC TJMAX = 150°C, θJA = 100°C/W *See Note 4 Consult factory for Industrial and Military grade parts.
ELECTRICAL CHAR C A TERISTICS 0
°
C
≤
TA
≤
70
°
C,
±
5V
≤
VS
≤ ±
15V, RL = 1k, pulse tested, EN pin open or high, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Output Offset Voltage Any Input Selected ● 10 30 mV Output Offset Matching Between Outputs ● 0.3 5 mV ∆VOS/∆T Output Offset Drift ● 40 µV/°C IIN Input Current ● 0.6 5 µA RIN Input Resistance VS = ±5V, VIN = ±2V ● 1 5 MΩ VS = ±15V, VIN = ±2V ● 2 5 MΩ CIN Input Capacitance Input Selected 2.6 pF Input Deselected 2.6 pF COUT Disabled Output Capacitance EN Pin Voltage ≤ 0.8V 2.8 pF VIN Input Voltage (Note 1) VS = ±5V ● ±2 ±2.8 V VS = ±15V ● ±2 ±3.0 V PSRR Power Supply Rejection Ratio VS = ±4.5 to ±15V ● 60 70 dB Gain Error VS = ±15V, VIN = ±2V, RL = 1k ● 2 4 % VS = ±15V, VIN = ±2V, RL = 400Ω ● 6 10 % VS = ±5V, VIN = ±2V, RL = 1k ● 3 6 % 2
