Datasheet LT1360 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | 50MHz, 800V/µs Op Amp |
| 页数 / 页 | 16 / 5 — ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply … |
| 文件格式/大小 | PDF / 229 Kb |
| 文件语言 | 英语 |
ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the temperature range. – 40
该数据表的模型线
文件文字版本

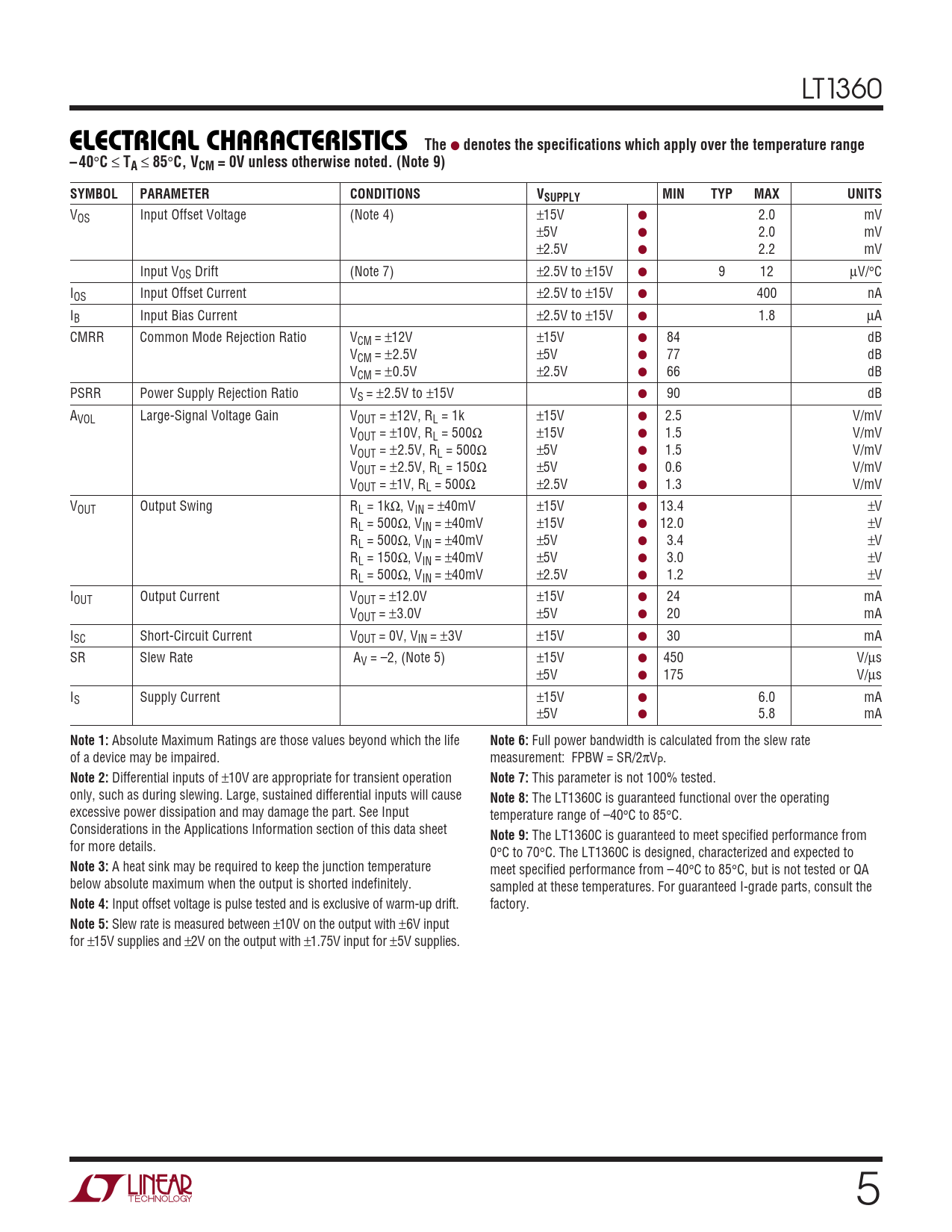

LT1360
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the temperature range – 40
°
C
≤
TA
≤
85
°
C, VCM = 0V unless otherwise noted. (Note 9) SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
VOS Input Offset Voltage (Note 4) ±15V ● 2.0 mV ±5V ● 2.0 mV ±2.5V ● 2.2 mV Input VOS Drift (Note 7) ±2.5V to ±15V ● 9 12 µV/°C IOS Input Offset Current ±2.5V to ±15V ● 400 nA IB Input Bias Current ±2.5V to ±15V ● 1.8 µA CMRR Common Mode Rejection Ratio VCM = ±12V ±15V ● 84 dB VCM = ±2.5V ±5V ● 77 dB VCM = ±0.5V ±2.5V ● 66 dB PSRR Power Supply Rejection Ratio VS = ±2.5V to ±15V ● 90 dB AVOL Large-Signal Voltage Gain VOUT = ±12V, RL = 1k ±15V ● 2.5 V/mV VOUT = ±10V, RL = 500Ω ±15V ● 1.5 V/mV VOUT = ±2.5V, RL = 500Ω ±5V ● 1.5 V/mV VOUT = ±2.5V, RL = 150Ω ±5V ● 0.6 V/mV VOUT = ±1V, RL = 500Ω ±2.5V ● 1.3 V/mV VOUT Output Swing RL = 1kΩ, VIN = ±40mV ±15V ● 13.4 ±V RL = 500Ω, VIN = ±40mV ±15V ● 12.0 ±V RL = 500Ω, VIN = ±40mV ±5V ● 3.4 ±V RL = 150Ω, VIN = ±40mV ±5V ● 3.0 ±V RL = 500Ω, VIN = ±40mV ±2.5V ● 1.2 ±V IOUT Output Current VOUT = ±12.0V ±15V ● 24 mA VOUT = ±3.0V ±5V ● 20 mA ISC Short-Circuit Current VOUT = 0V, VIN = ±3V ±15V ● 30 mA SR Slew Rate AV = –2, (Note 5) ±15V ● 450 V/µs ±5V ● 175 V/µs IS Supply Current ±15V ● 6.0 mA ±5V ● 5.8 mA
Note 1:
Absolute Maximum Ratings are those values beyond which the life
Note 6:
Full power bandwidth is calculated from the slew rate of a device may be impaired. measurement: FPBW = SR/2πVP.
Note 2:
Differential inputs of ±10V are appropriate for transient operation
Note 7:
This parameter is not 100% tested. only, such as during slewing. Large, sustained differential inputs will cause
Note 8:
The LT1360C is guaranteed functional over the operating excessive power dissipation and may damage the part. See Input temperature range of –40°C to 85°C. Considerations in the Applications Information section of this data sheet
Note 9:
The LT1360C is guaranteed to meet specified performance from for more details. 0°C to 70°C. The LT1360C is designed, characterized and expected to
Note 3:
A heat sink may be required to keep the junction temperature meet specified performance from – 40°C to 85°C, but is not tested or QA below absolute maximum when the output is shorted indefinitely. sampled at these temperatures. For guaranteed I-grade parts, consult the
Note 4:
Input offset voltage is pulse tested and is exclusive of warm-up drift. factory.
Note 5:
Slew rate is measured between ±10V on the output with ±6V input for ±15V supplies and ±2V on the output with ±1.75V input for ±5V supplies. 5
