Datasheet LT1189 (Analog Devices) - 3
| 制造商 | Analog Devices |
| 描述 | Low Power Video Difference Amplifier |
| 页数 / 页 | 12 / 3 — +5V ELECTRICAL CHAR C. A TERISTICS TA = 25. C, (Note 3). VS =. 5V, VREF = … |
| 文件格式/大小 | PDF / 318 Kb |
| 文件语言 | 英语 |

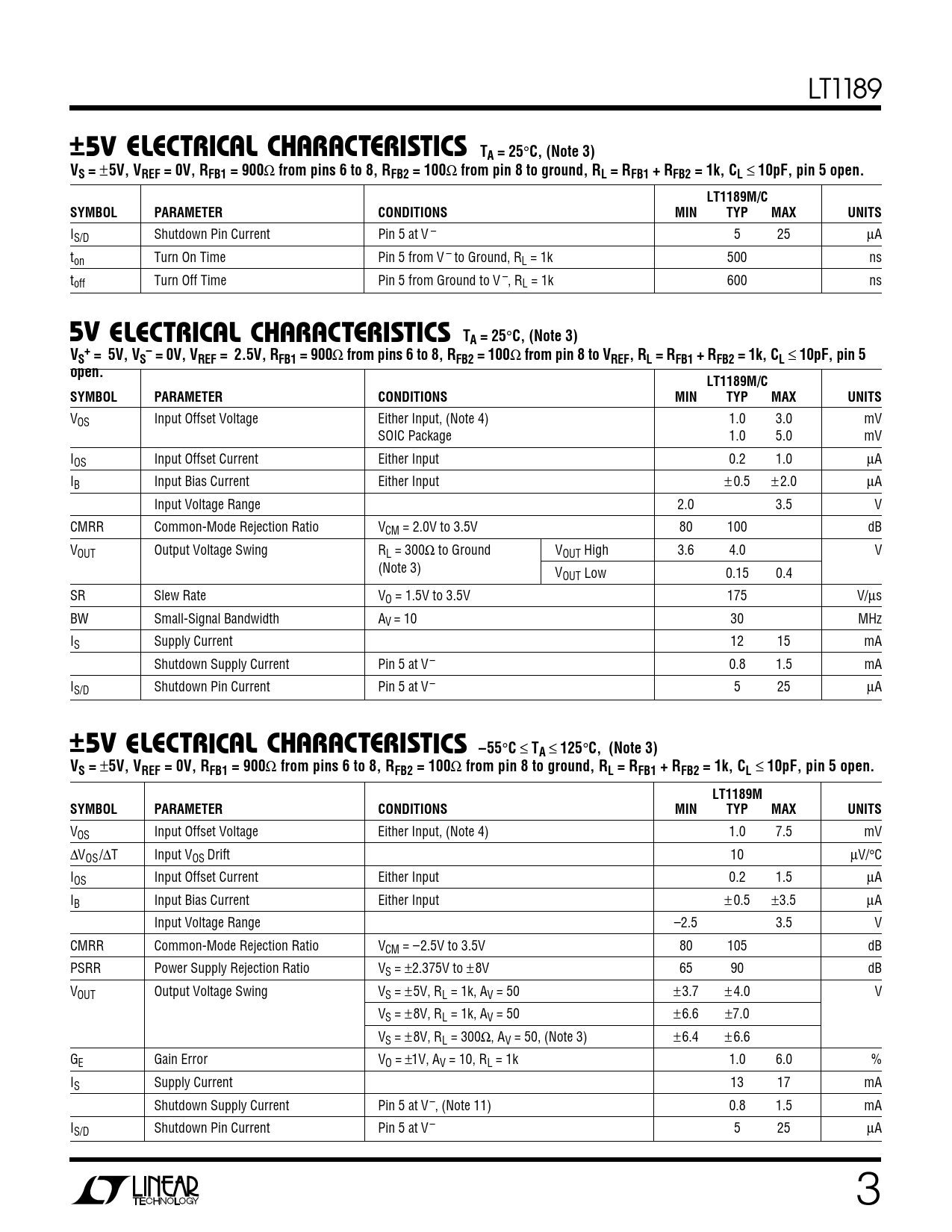

+5V ELECTRICAL CHAR C. A TERISTICS TA = 25. C, (Note 3). VS =. 5V, VREF = 0V, RFB1 = 900. from pins 6 to 8, RFB2 = 100
该数据表的模型线
文件文字版本
LT1189
– +5V ELECTRICAL CHAR C A TERISTICS TA = 25
°
C, (Note 3) VS =
±
5V, VREF = 0V, RFB1 = 900
Ω
from pins 6 to 8, RFB2 = 100
Ω
from pin 8 to ground, RL = RFB1 + RFB2 = 1k, CL
≤
10pF, pin 5 open. LT1189M/C SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
IS/D Shutdown Pin Current Pin 5 at V – 5 25 µA ton Turn On Time Pin 5 from V – to Ground, RL = 1k 500 ns toff Turn Off Time Pin 5 from Ground to V –, RL = 1k 600 ns
