ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the full operating
该数据表的模型线
文件文字版本
LT1997-3

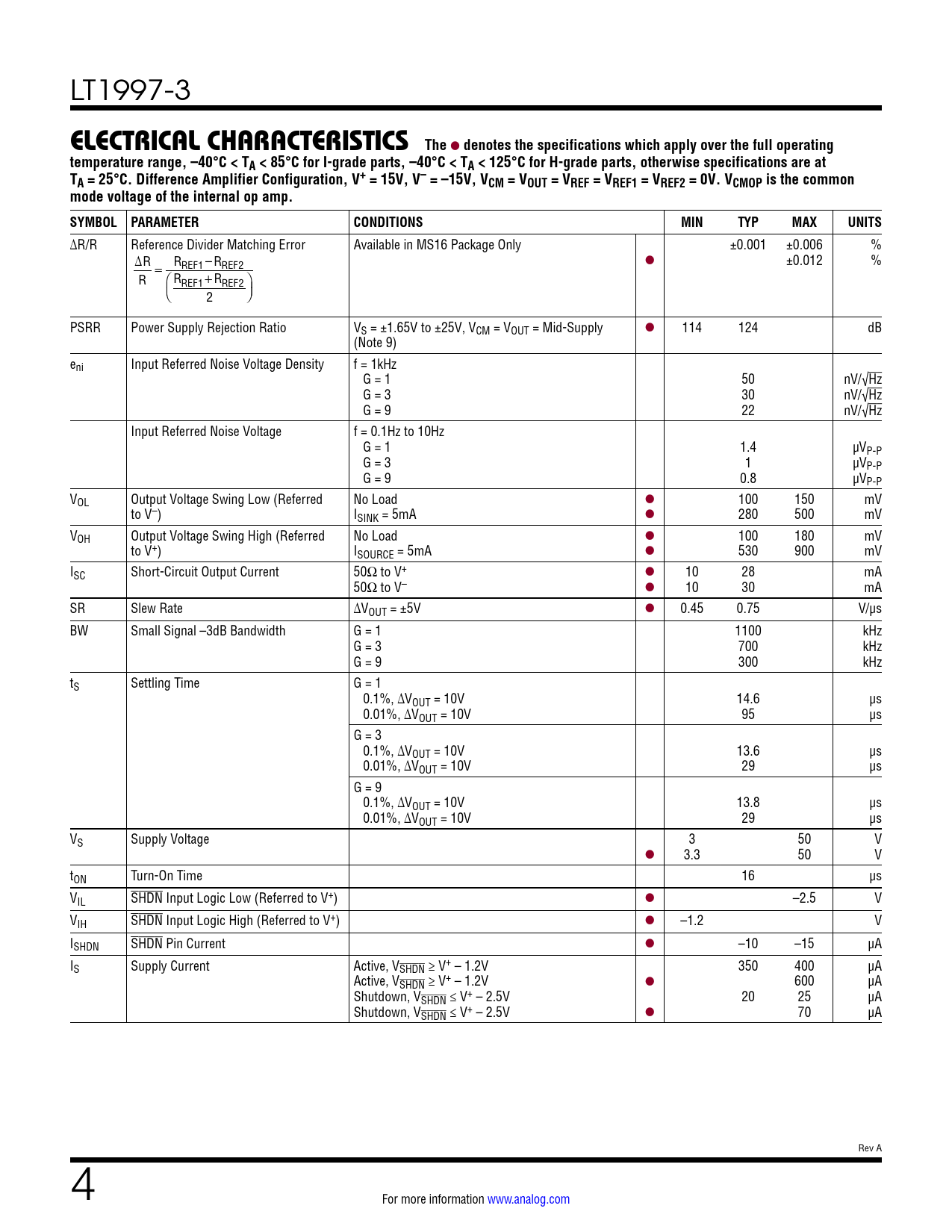

ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, –40°C < TA < 85°C for I-grade parts, –40°C < TA < 125°C for H-grade parts, otherwise specifications are at TA = 25°C. Difference Amplifier Configuration, V+ = 15V, V– = –15V, VCM = VOUT = VREF = VREF1 = VREF2 = 0V. VCMOP is the common mode voltage of the internal op amp. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
∆R/R Reference Divider Matching Error Available in MS16 Package Only ±0.001 ±0.006 % ∆R R l ±0.012 % = REF1 – RREF2 R ⎛ RREF1+RREF2 ⎞ ⎝⎜ 2 ⎠⎟ PSRR Power Supply Rejection Ratio VS = ±1.65V to ±25V, VCM = VOUT = Mid-Supply l 114 124 dB (Note 9) eni Input Referred Noise Voltage Density f = 1kHz G = 1 50 nV/√Hz G = 3 30 nV/√Hz G = 9 22 nV/√Hz Input Referred Noise Voltage f = 0.1Hz to 10Hz G = 1 1.4 µVP-P G = 3 1 µVP-P G = 9 0.8 µVP-P VOL Output Voltage Swing Low (Referred No Load l 100 150 mV to V–) ISINK = 5mA l 280 500 mV VOH Output Voltage Swing High (Referred No Load l 100 180 mV to V+) ISOURCE = 5mA l 530 900 mV ISC Short-Circuit Output Current 50Ω to V+ l 10 28 mA 50Ω to V– l 10 30 mA SR Slew Rate ∆VOUT = ±5V l 0.45 0.75 V/µs BW Small Signal –3dB Bandwidth G = 1 1100 kHz G = 3 700 kHz G = 9 300 kHz tS Settling Time G = 1 0.1%, ∆VOUT = 10V 14.6 µs 0.01%, ∆VOUT = 10V 95 µs G = 3 0.1%, ∆VOUT = 10V 13.6 µs 0.01%, ∆VOUT = 10V 29 µs G = 9 0.1%, ∆VOUT = 10V 13.8 µs 0.01%, ∆VOUT = 10V 29 µs VS Supply Voltage 3 50 V l 3.3 50 V tON Turn-On Time 16 µs VIL SHDN Input Logic Low (Referred to V+) l –2.5 V VIH SHDN Input Logic High (Referred to V+) l –1.2 V ISHDN SHDN Pin Current l –10 –15 µA IS Supply Current Active, VSHDN ≥ V+ – 1.2V 350 400 µA Active, VSHDN ≥ V+ – 1.2V l 600 µA Shutdown, VSHDN ≤ V+ – 2.5V 20 25 µA Shutdown, VSHDN ≤ V+ – 2.5V l 70 µA Rev A 4 For more information www.analog.com Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION ELECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS PIN FUNCTIONS BLOCK DIAGRAM APPLICATIONS INFORMATION TYPICAL APPLICATIONS PACKAGE DESCRIPTION REVISION HISTORY TYPICAL APPLICATION RELATED PARTS
