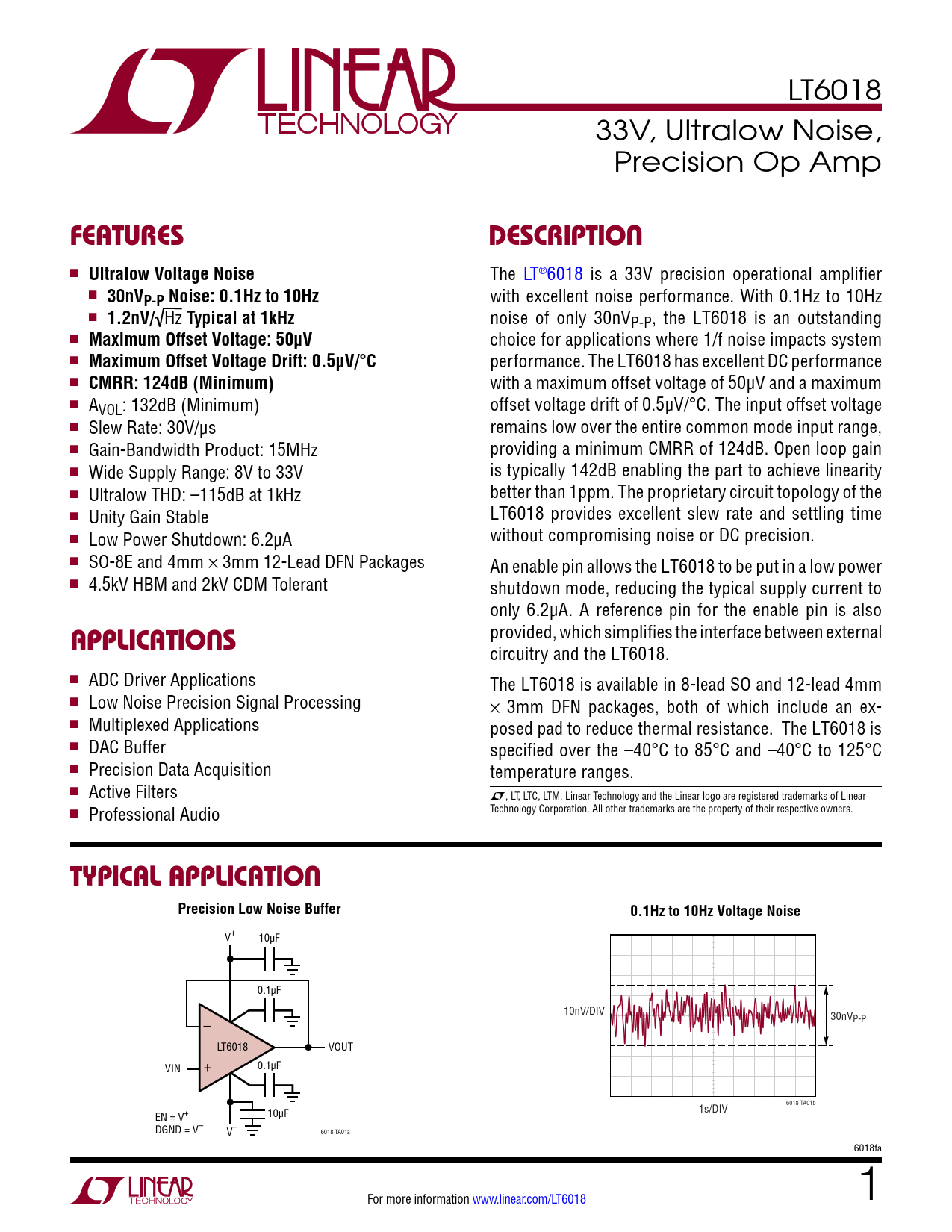

LT6018 33V, Ultralow Noise, Precision Op Amp
FeaTures DescripTion
n
Ultralow Voltage Noise
The LT®6018 is a 33V precision operational amplifier n
30nVP-P Noise: 0.1Hz to 10Hz
with excellent noise performance. With 0.1Hz to 10Hz n
1.2nV/√
Hz
Typical at 1kHz
noise of only 30nVP-P, the LT6018 is an outstanding n
Maximum Offset Voltage: 50μV
choice for applications where 1/f noise impacts system n
Maximum Offset Voltage Drift: 0.5μV/°C
performance. The LT6018 has excellent DC performance n
CMRR: 124dB (Minimum)
with a maximum offset voltage of 50µV and a maximum n AVOL: 132dB (Minimum) offset voltage drift of 0.5µV/°C. The input offset voltage n Slew Rate: 30V/μs remains low over the entire common mode input range, n Gain-Bandwidth Product: 15MHz providing a minimum CMRR of 124dB. Open loop gain n Wide Supply Range: 8V to 33V is typically 142dB enabling the part to achieve linearity n Ultralow THD: –115dB at 1kHz better than 1ppm. The proprietary circuit topology of the n Unity Gain Stable LT6018 provides excellent slew rate and settling time n Low Power Shutdown: 6.2µA without compromising noise or DC precision. n SO-8E and 4mm × 3mm 12-Lead DFN Packages An enable pin allows the LT6018 to be put in a low power n 4.5kV HBM and 2kV CDM Tolerant shutdown mode, reducing the typical supply current to only 6.2µA. A reference pin for the enable pin is also provided, which simplifies the interface between external
applicaTions
circuitry and the LT6018. n ADC Driver Applications The LT6018 is available in 8-lead SO and 12-lead 4mm n Low Noise Precision Signal Processing × 3mm DFN packages, both of which include an ex- n Multiplexed Applications posed pad to reduce thermal resistance. The LT6018 is n DAC Buffer specified over the –40°C to 85°C and –40°C to 125°C n Precision Data Acquisition temperature ranges. n Active Filters L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners. n Professional Audio
Typical applicaTion Precision Low Noise Buffer 0.1Hz to 10Hz Voltage Noise
V+ 10µF 0.1µF – 10nV/DIV 30nVP-P LT6018 VOUT + VIN 0.1µF 1s/DIV 6018 TA01b EN = V+ 10µF DGND = V– V– 6018 TA01a 6018fa For more information www.linear.com/LT6018 1 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Schematic Applications Information Typical Applications Package Description Revision History Typical Applications Related Parts
