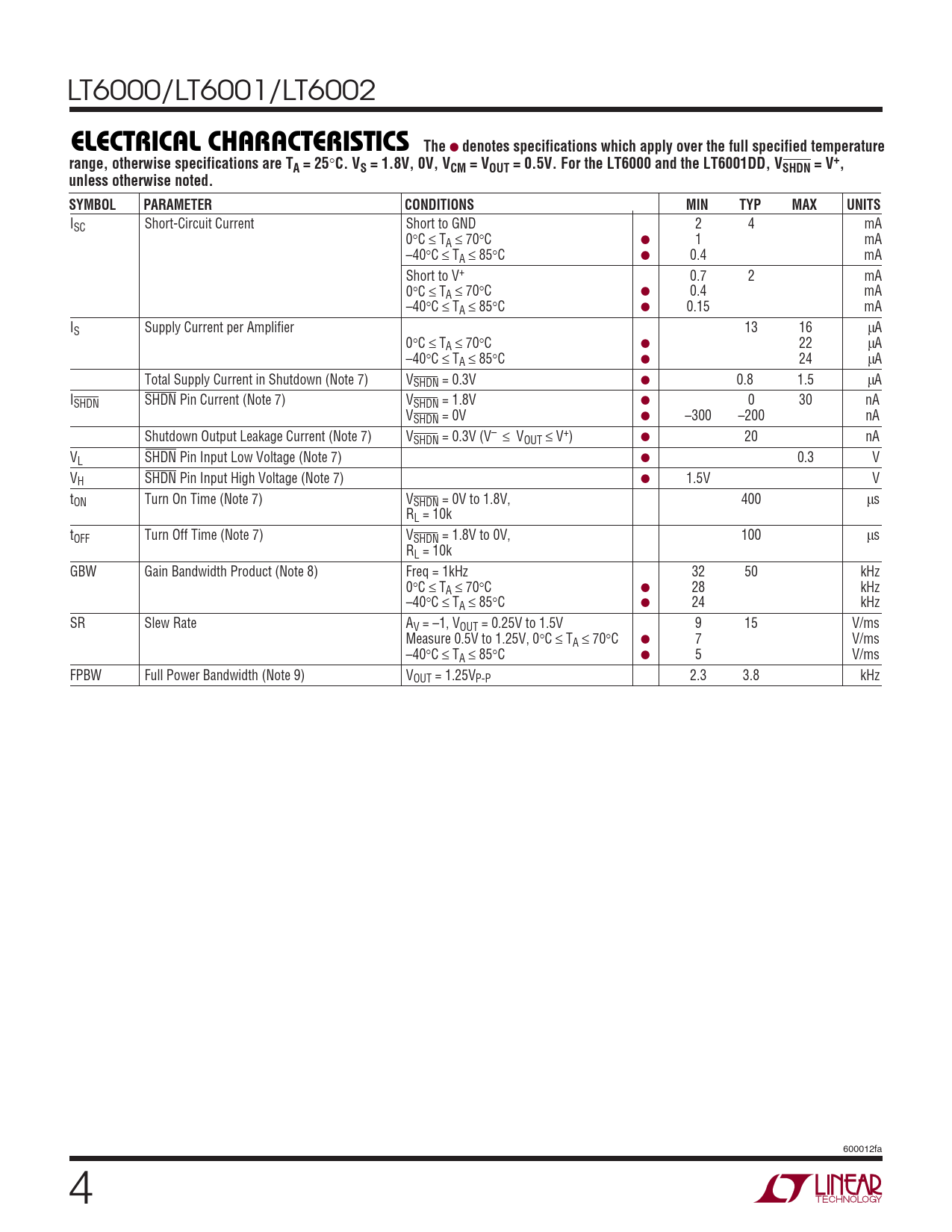

LT6000/LT6001/LT6002
ELECTRICAL CHARACTERISTICS The
●
denotes specifications which apply over the full specified temperature range, otherwise specifications are TA = 25
°
C. VS = 1.8V, 0V, VCM = VOUT = 0.5V. For the LT6000 and the LT6001DD, VSHDN = V+, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
ISC Short-Circuit Current Short to GND 2 4 mA 0°C ≤ TA ≤ 70°C ● 1 mA –40°C ≤ TA ≤ 85°C ● 0.4 mA Short to V+ 0.7 2 mA 0°C ≤ TA ≤ 70°C ● 0.4 mA –40°C ≤ TA ≤ 85°C ● 0.15 mA IS Supply Current per Amplifier 13 16 µA 0°C ≤ TA ≤ 70°C ● 22 µA –40°C ≤ TA ≤ 85°C ● 24 µA Total Supply Current in Shutdown (Note 7) VSHDN = 0.3V ● 0.8 1.5 µA ISHDN SHDN Pin Current (Note 7) VSHDN = 1.8V ● 0 30 nA VSHDN = 0V ● –300 –200 nA Shutdown Output Leakage Current (Note 7) VSHDN = 0.3V (V– ≤ VOUT ≤ V+) ● 20 nA VL SHDN Pin Input Low Voltage (Note 7) ● 0.3 V VH SHDN Pin Input High Voltage (Note 7) ● 1.5V V tON Turn On Time (Note 7) VSHDN = 0V to 1.8V, 400 µs RL = 10k tOFF Turn Off Time (Note 7) VSHDN = 1.8V to 0V, 100 µs RL = 10k GBW Gain Bandwidth Product (Note 8) Freq = 1kHz 32 50 kHz 0°C ≤ TA ≤ 70°C ● 28 kHz –40°C ≤ TA ≤ 85°C ● 24 kHz SR Slew Rate AV = –1, VOUT = 0.25V to 1.5V 9 15 V/ms Measure 0.5V to 1.25V, 0°C ≤ TA ≤ 70°C ● 7 V/ms –40°C ≤ TA ≤ 85°C ● 5 V/ms FPBW Full Power Bandwidth (Note 9) VOUT = 1.25VP-P 2.3 3.8 kHz 600012fa 4
